3RA62 reversing starters Parts
Compare 3RA62 reversing starters
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current — at AC in hot operating state | power loss [W] for rated value of the current — at AC in hot operating state per pole | Net Weight | adjustable current response value current of the current-dependent overload release | yielded mechanical performance for 4-pole AC motor — at 400 V rated value |
|---|---|---|---|---|---|

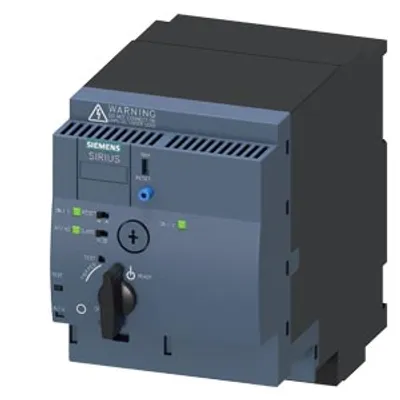

| 3RA6250-0EP30 | 5.4 W | 1.8 W | 2.314 kg | 8 ... 32 A | 15 kW |
| 3RA6250-0EB30 | 5.4 W | 1.8 W | 2.328 kg | 8 ... 32 A | 15 kW |
| 3RA6250-0DB30 | 1.8 W | 0.6 W | 2.276 kg | 3 ... 12 A | 5.5 kW |
| 3RA6250-2DP32 | 1.8 W | 0.6 W | 2.409 kg | 3 ... 12 A | 5.5 kW |
| 3RA6250-2CP32 | 1 W | 0.33 W | 2.403 kg | 1 ... 4 A | 1.5 kW |
| 3RA6250-2BB32 | 0.1 W | 0.03 W | 2.409 kg | 0.32 ... 1.25 A | 0.37 kW |

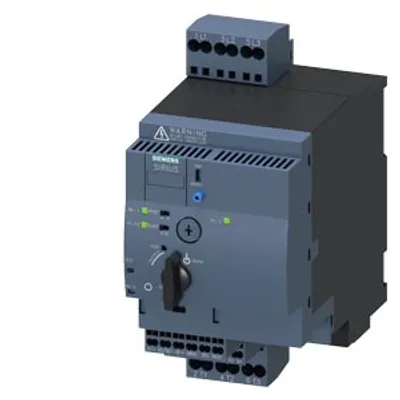

| 3RA6250-2AP32 | 0.01 W | 0.01 W | 2.406 kg | 0.1 ... 0.4 A | 0.09 kW |
| 3RA6250-1DB32 | 1.8 W | 0.6 W | 2.382 kg | 3 ... 12 A | 5.5 kW |
| 3RA6250-1CP33 | 1 W | 0.33 W | 2.307 kg | 1 ... 4 A | 1.5 kW |
| 3RA6250-1CP32 | 1 W | 0.33 W | 2.369 kg | 1 ... 4 A | 1.5 kW |

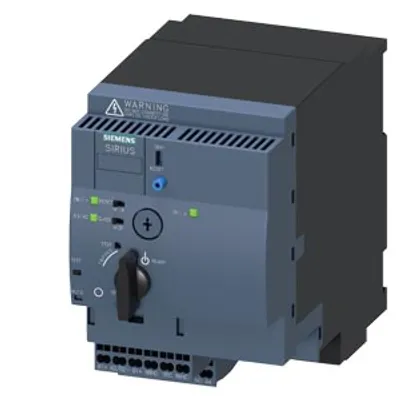

| 3RA6250-2EB33 | 5.4 W | 1.8 W | 2.367 kg | 8 ... 32 A | 15 kW |
| 3RA6250-2DB32 | 1.8 W | 0.6 W | 1.237 kg | 3 ... 12 A | 5.5 kW |

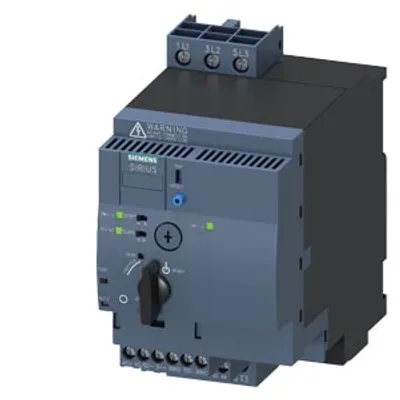

| 3RA6250-1BB32 | 0.1 W | 0.03 W | 2.374 kg | 0.32 ... 1.25 A | 0.37 kW |
| 3RA6250-1DP33 | 1.8 W | 0.6 W | 2.313 kg | 3 ... 12 A | 5.5 kW |
| 3RA6250-1AB32 | 0.01 W | 0.01 W | 2.389 kg | 0.1 ... 0.4 A | 0.09 kW |
| 3RA6250-2EB32 | 5.4 W | 1.8 W | 2.457 kg | 8 ... 32 A | 15 kW |

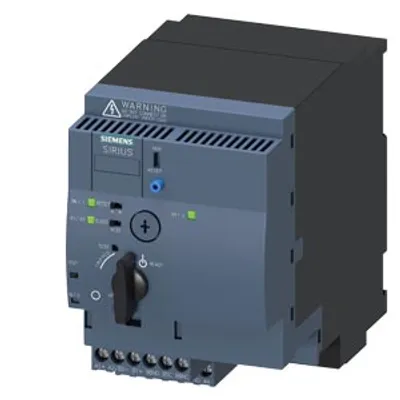

| 3RA6250-1EB33 | 5.4 W | 1.8 W | 2.368 kg | 8 ... 32 A | 15 kW |
| 3RA6250-1EB32 | 5.4 W | 1.8 W | 2.434 kg | 8 ... 32 A | 15 kW |
| 3RA6250-1BP32 | 0.1 W | 0.03 W | 2.377 kg | 0.32 ... 1.25 A | 0.37 kW |

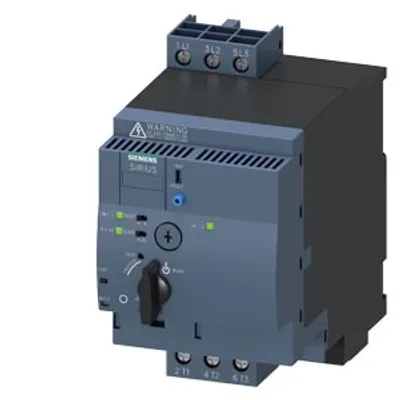

| 3RA6250-1BB34 | 0.1 W | 0.03 W | 2.337 kg | 0.32 ... 1.25 A | 0.37 kW |
| 3RA6250-1BB33 | 0.1 W | 0.03 W | 2.307 kg | 0.32 ... 1.25 A | 0.37 kW |
Common to all listed parts
| product designation | compact starter |
| design of the product | reversing starter |
| product type designation | 3RA62 |
| product function control circuit interface to parallel wiring | Yes |
| product extension auxiliary switch | Yes |
| insulation voltage rated value | 690 V |
| degree of pollution | 3 |
| surge voltage resistance rated value | 6 000 V |
