Mechanical system Parts

Siemens

8LK5002-1AA54

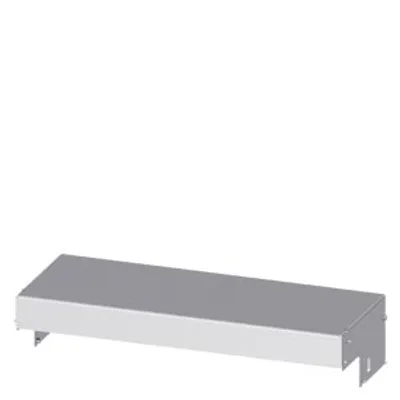

Mounting plate 3WA frame size 2, (4-pole), fixed-mounted

Siemens

8LK5002-1AA53

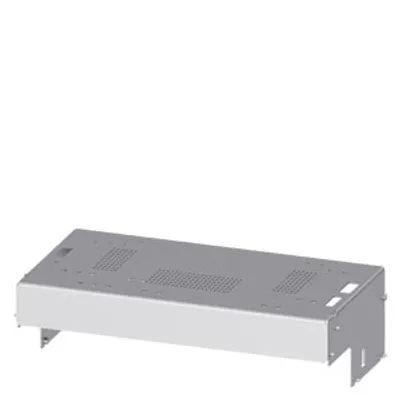

Mounting plate 3WA frame size 1, (3/4-pole)

Siemens

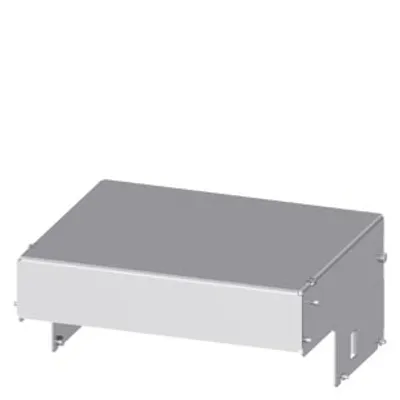

8LK5002-1AA52

Mounting plate 3WA frame size 1, (3-pole), fixed-mounted

Siemens

8LK6036-7AA61

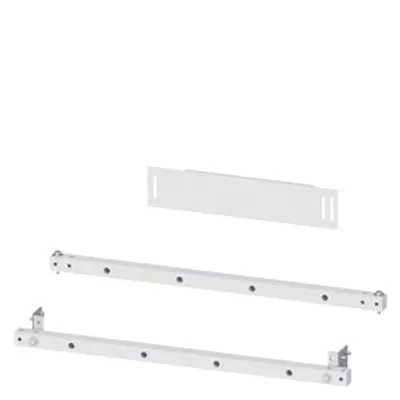

Support cable connection 3WA size 1, withdrawable version

Siemens

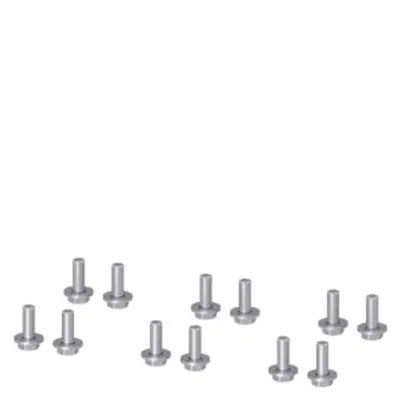

8LK6035-2AA70

Screw set M12 x 35 ACB connection L 3WA size 2 (2000 A)

Siemens

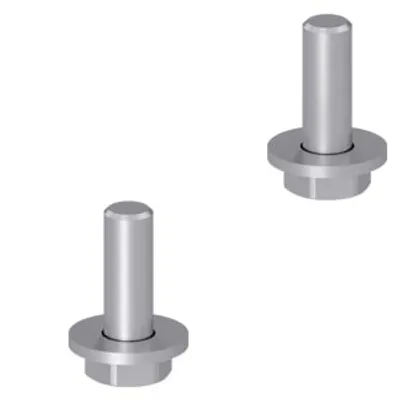

8LK6035-2AA68

Screw set M12 x 35 ACB connection N 3WA size 2 (2000 A)

Siemens

8LK6035-2AA67

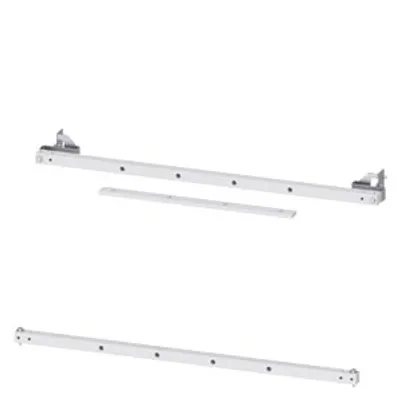

Support connection busbar 3WA frame size 2

Siemens

8LK6035-2AA27

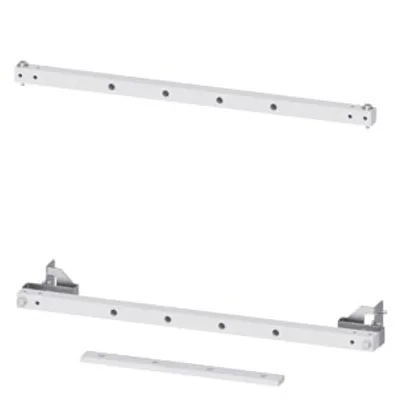

Support connection busbar 3WA frame size 1

Siemens

8LK2197-6AD08

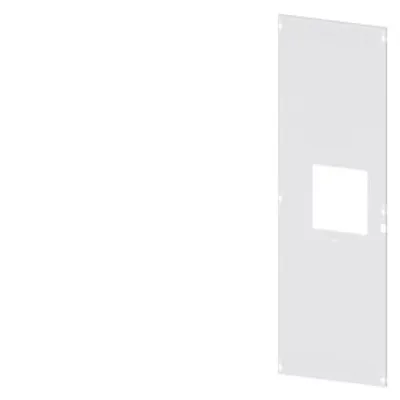

Door 3WA frame size 1, (3/4-pole), IP30, hinge: left

Siemens

8LK2197-6AD07

Door 3WA frame size 1, (3/4-pole), IP30

Siemens

8LK2197-6AD06

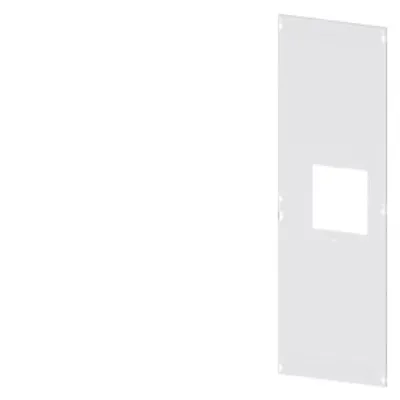

Door 3WA frame size 1, (3/4-pole), IP30, hinge: right

Siemens

8LK2197-8AE88

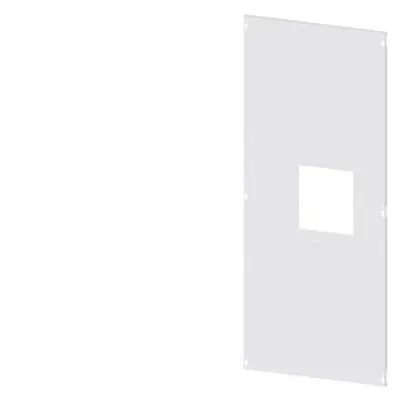

Door 3WA frame size 2, (3/4-pole), IP54

Siemens

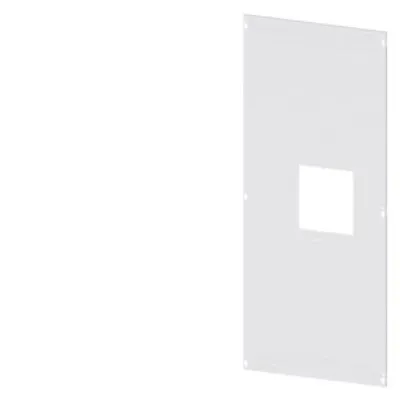

8LK2197-8AE87

Door 3WA frame size 2, (3/4-pole), IP30

Siemens

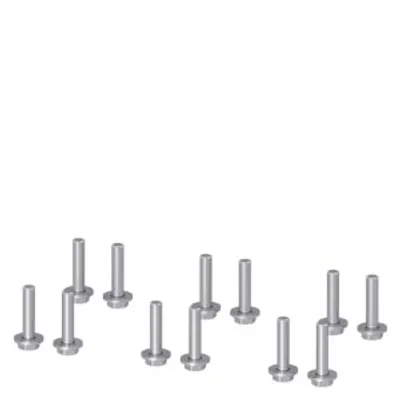

8LK6035-2AA63

Screw set M12 x 55 ACB connection L 3WA size 2 (3200 A)

Siemens

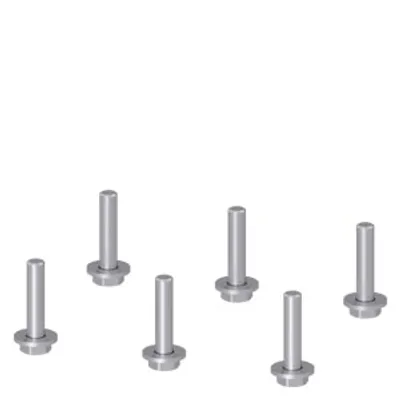

8LK6035-2AA61

Screw set M12 x 55 ACB connection L 3WA size 1 (2000 A)

Siemens

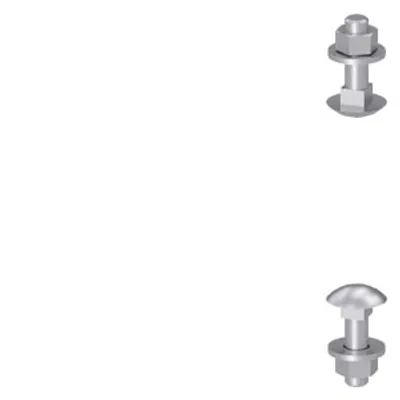

8LK6036-7AA08

Screw set M12 x 45 ACB connection N 3WA size 1 (1250 A)

Siemens

8LK6036-7AA07

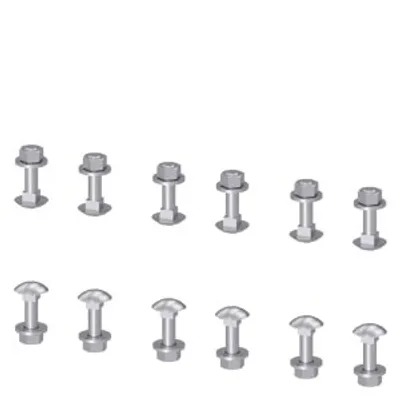

Screw set M12 x 50 ACB connection L 3WA size 2 (2500 A)

Siemens

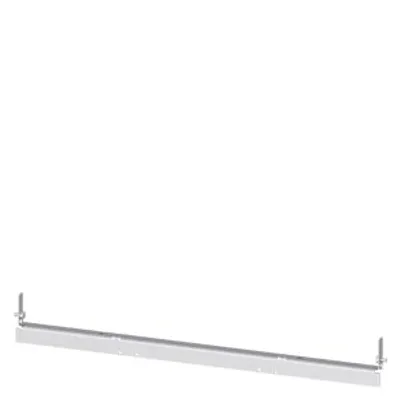

8LK3011-6AA58

Door strut W: 600 mm

Siemens

8LK3011-6AA57

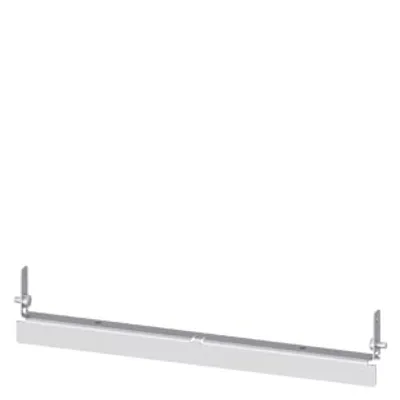

Door strut W: 400 mm

Siemens

8LK2060-8AA42

Compartment door size 2, IP54, fixed-mounted

Siemens

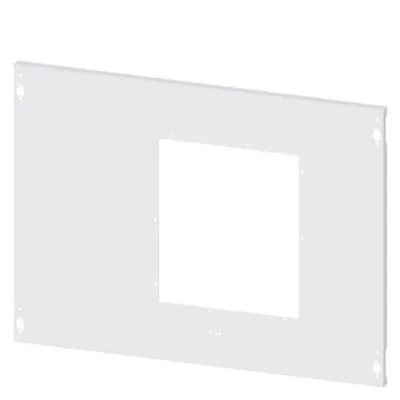

8LK2060-8AA41

Compartment door size 2, IP40, fixed-mounted

Compare Mechanical system

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	product designation	width	Net Weight	material
8LK5002-1AA54	mounting panel	800 mm	7.366 kg	sheet-steel
8LK5002-1AA53	mounting panel	600 mm	5.813 kg	sheet-steel
8LK5002-1AA52	mounting panel	400 mm	4.301 kg	sheet-steel
8LK6036-7AA61	Support 3WL cable connection	600 mm	2.25 kg	plastic
8LK6035-2AA70	—	—	0.681 kg	steel
8LK6035-2AA68	—	—	0.151 kg	steel
8LK6035-2AA67	Support 3VA busbar connection	800 mm	2.525 kg	plastic
8LK6035-2AA27	Support 3VA busbar connection	600 mm	2.211 kg	plastic
8LK2197-6AD08	Door	600 mm	21.533 kg	sheet-steel
8LK2197-6AD07	Door	600 mm	21.543 kg	sheet-steel
8LK2197-6AD06	Door	600 mm	21.533 kg	sheet-steel
8LK2197-8AE88	Door	800 mm	30.259 kg	sheet-steel
8LK2197-8AE87	Door	800 mm	28.819 kg	sheet-steel
8LK6035-2AA63	—	—	810 g	steel
8LK6035-2AA61	—	—	400 g	steel
8LK6036-7AA08	—	—	0.289 kg	steel
8LK6036-7AA07	—	—	1.357 kg	steel
8LK3011-6AA58	Door strut	600 mm	313 g	metal
8LK3011-6AA57	Door strut	400 mm	220 g	metal
8LK2060-8AA42	Compartment door	800 mm	6.235 kg	sheet-steel
8LK2060-8AA41	Compartment door	800 mm	5.555 kg	sheet-steel
