Optional braking resistors Parts
Compare Optional braking resistors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Weight | Resistance value at 20°C | Average available power at 50°C |
|---|---|---|---|

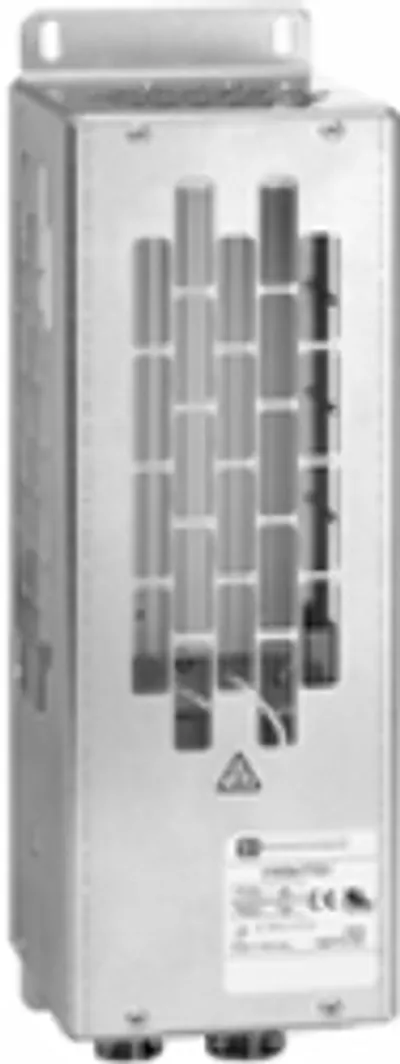

| 8I0BR028.000-1 | 3.5 kg | 28 Ω | 0.2 kW |
| 8I0BR060.000-1 | 2.4 kg | 60 Ω | 0.1 kW |
| 8I0BR100.000-1 | 2 kg | 100 Ω | 0.05 kW |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – KC | Yes |
| Rated protection of housing | IP20 |
| Ambient temperature | 0 to 50°C |
| Temperature – Storage | -25 to 70°C |
| Temperature controlled switch – Activation temperature | 120°C |
