Wall mounting Parts

B&R

ACOPOS P3 servo drive, 3x 200-480 VAC, 3x 2.2 A, SafeMOTION

B&R

ACOPOS P3 servo drive , 1x 110-230 VAC, 3x 200-230 VAC

B&R

ACOPOS P3 servo drive, 3x 200-480 VAC, 3x 4.5 A, SafeMOTION

B&R

ACOPOS P3 servo drive , 1x 110-230 VAC, 3x 200-230 VAC

B&R

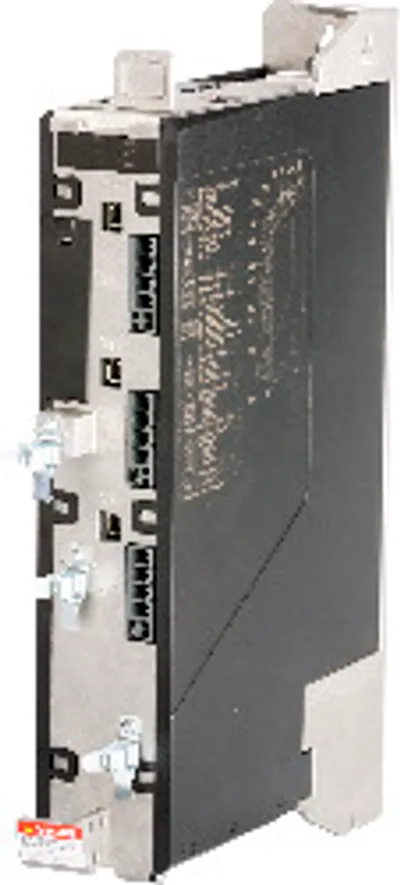

ACOPOS P3 servo drive, 3x 200-480 VAC, 3x 8.8 A, SafeMOTION

B&R

ACOPOS P3 servo drive , 1x 110-230 VAC, 3x 200-230 VAC

Compare Wall mounting

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Installed load	Inrush current	Accuracy of the safe current – SIL 2 / PL d / Cat. 2	Reduction of continuous current depending on installation elevation – Starting at 500 m above sea level	Peak current per motor connection
8EI2X2HWTS0.XXXX-1	Max. 7.5 kVA	Max. 45 A	0.555 A	0.22 A eff per 1000 m	6 / 6 / 6 A eff
8EI2X2MWTS0.XXXX-1	Max. 3.75 kVA	Max. 22 A	0.555 A	0.22 A eff per 1000 m	6 / 6 / 6 A eff
8EI4X5HWTS0.XXXX-1	Max. 10 kVA	Max. 45 A	0.688 A	0.45 A eff per 1000 m	12.25 / 12.25 / 12.25 A eff
8EI4X5MWTS0.XXXX-1	Max. 5 kVA	Max. 22 A	0.688 A	0.45 A eff per 1000 m	12.25 / 12.25 / 12.25 A eff
8EI8X8HWTS0.XXXX-1	Max. 10 kVA	Max. 45 A	0.936 A	0.88 A eff per 1000 m	24 / 24 / 24 A eff
8EI8X8MWTS0.XXXX-1	Max. 5 kVA	Max. 22 A	0.936 A	0.88 A eff per 1000 m	24 / 24 / 24 A eff

Support – Dynamic node allocation (DNA)	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	Yes
Slots for plug-in modules	1
Terminal connection cross section – With wire end sleeve	0.25 to 4 mm²
