Wall mounting Parts

B&R

ACOPOS P3 servo drive, 3x 200-480 VAC, 1.6 A, SafeMOTION

B&R

ACOPOS P3 servo drive, 1x 110-230 VAC, 3x 200-230 VAC

B&R

ACOPOS P3 servo drive, 3x 200-480 VAC, 2.2 A, SafeMOTION

B&R

ACOPOS P3 servo drive, 1x 110-230 VAC, 3x 200-230 VAC

B&R

ACOPOS P3 servo drive, 3x 200-480 VAC, 4.5 A, SafeMOTION

B&R

ACOPOS P3 servo drive, 1x 110-230 VAC, 3x 200-230 VAC

B&R

ACOPOS P3 servo drive, 3x 200-480 VAC, 8.8 A, SafeMOTION

B&R

ACOPOS P3 servo drive, 1x 110-230 VAC, 3x 200-230 VAC

B&R

ACOPOS P3 servo drive, 3x 200-480 VAC, 13 A, SafeMOTION

B&R

ACOPOS P3 servo drive, 3x 200-480 VAC, 17 A, SafeMOTION

B&R

ACOPOS P3 servo drive, 3x 200-480 VAC, 24 A, SafeMOTION

B&R

ACOPOS P3 servo drive, 3x 200-480 VAC, 34 A, SafeMOTION

B&R

ACOPOS P3 servo drive, 3x 200-480 VAC, 44 A, SafeMOTION

Compare Wall mounting

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Installed load	Accuracy of the safe current – SIL 2 / PL d / Cat. 2	Reduction of continuous current depending on installation elevation – Starting at 500 m above sea level	Peak current per motor connection	Peak power output
8EI1X6HWSS0.XXXX-1	Max. 1.75 kVA	0.509 A	0.16 A eff per 1000 m	4.5 A eff	1.75 kW
8EI1X6MWSS0.XXXX-1	Max. 1 kVA	0.509 A	0.16 A eff per 1000 m	4.5 A eff	1 kW
8EI2X2HWSS0.XXXX-1	Max. 2.5 kVA	0.539 A	0.22 A eff per 1000 m	6 A eff	2.5 kW
8EI2X2MWSS0.XXXX-1	Max. 1.25 kVA	0.539 A	0.22 A eff per 1000 m	6 A eff	1.25 kW
8EI4X5HWSS0.XXXX-1	Max. 5 kVA	0.655 A	0.45 A eff per 1000 m	12.25 A eff	5 kW
8EI4X5MWSS0.XXXX-1	Max. 2.5 kVA	0.655 A	0.45 A eff per 1000 m	12.25 A eff	2.5 kW

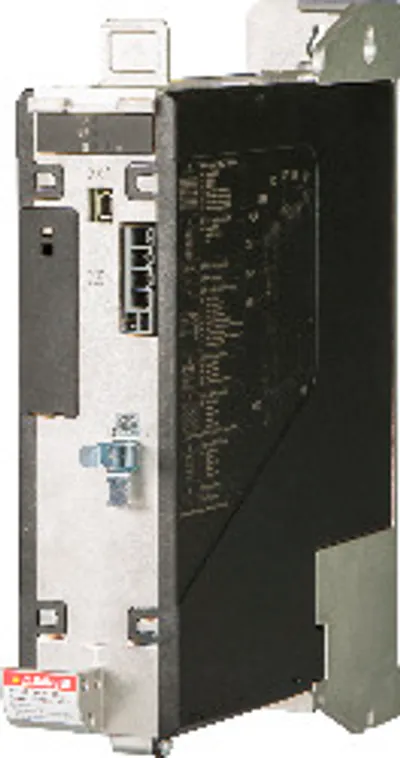

8EI8X8HWSS0.XXXX-1	Max. 10 kVA	0.871 A	0.88 A eff per 1000 m	24 A eff	10 kW
8EI8X8MWSS0.XXXX-1	Max. 5 kVA	0.871 A	0.88 A eff per 1000 m	24 A eff	5 kW
8EI013HWSS0.XXXX-1	Max. 13.5 kVA	1.362 A	1.3 A eff per 1000 m	32.5 A eff	16.25 kW
8EI017HWSS0.XXXX-1	Max. 18 kVA	1.537 A	1.7 A eff per 1000 m	42.5 A eff	21.25 kW
8EI024HWSS0.XXXX-1	Max. 18.7 kVA	3.301 A	2.4 A eff per 1000 m	60 A eff	25 kW
8EI034HWSS0.XXXX-1	Max. 26.4 kVA	3.804 A	3.4 A eff per 1000 m	85 A eff	35 kW

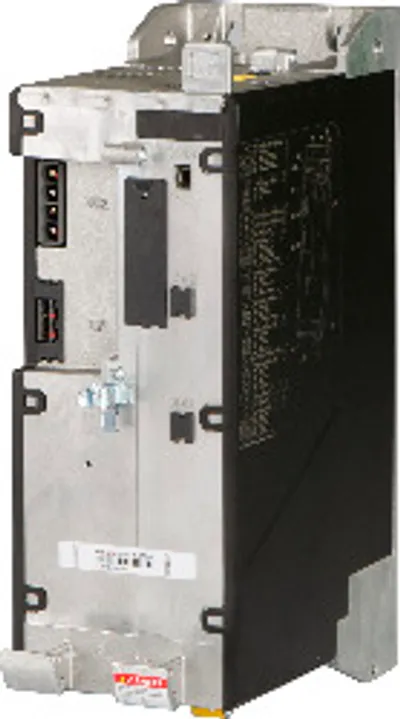

8EI044HWSS0.XXXX-1	Max. 30.5 kVA	4.307 A	4.4 A eff per 1000 m	110 A eff	45 kW

Support – Dynamic node allocation (DNA)	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E225616; Power conversion equipment
Slots for plug-in modules	1
Frequency	50 / 60 Hz ±4%
Input voltage	24 VDC ±25%
