Wall mounting Parts
Compare Wall mounting
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Terminal connection cross section – With wire end sleeve | Installed load | Inrush current | Reduction of continuous current depending on installation elevation – Starting at 500 m above sea level | Peak current per motor connection |
|---|---|---|---|---|---|
| 8EI022HWD10.XXXX-1 | 0.75 to 16 mm² | Max. 30.5 kVA | 100 A | 2.2 A eff per 1000 m | 55 / 55 A eff |

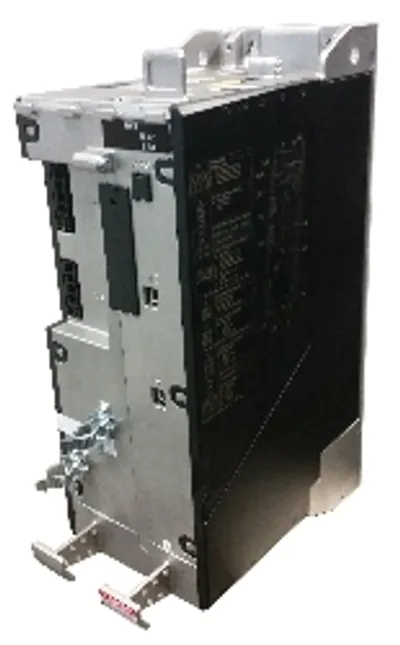

| 8EI017HWD10.XXXX-1 | 0.75 to 16 mm² | Max. 26.4 kVA | 100 A | 1.7 A eff per 1000 m | 42.5 / 42.5 A eff |
| 8EI8X8MWD10.XXXX-1 | 0.25 to 4 mm² | Max. 5 kVA | Max. 22 A | 0.88 A eff per 1000 m | 24 / 24 A eff |
| 8EI8X8HWD10.XXXX-1 | 0.25 to 4 mm² | Max. 10 kVA | Max. 45 A | 0.88 A eff per 1000 m | 24/24 A eff |
| 8EI4X5MWD10.XXXX-1 | 0.25 to 4 mm² | Max. 5 kVA | Max. 22 A | 0.45 A eff per 1000 m | 12.25 / 12.25 A eff |
| 8EI4X5HWD10.XXXX-1 | 0.25 to 4 mm² | Max. 10 kVA | Max. 45 A | 0.45 A eff per 1000 m | 12.25 / 12.25 A eff |
| 8EI2X2HWD10.XXXX-1 | 0.25 to 4 mm² | Max. 5 kVA | Max. 45 A | 0.22 A eff per 1000 m | 6 / 6 A eff |
| 8EI2X2MWD10.XXXX-1 | 0.25 to 4 mm² | Max. 2.5 kVA | Max. 22 A | 0.22 A eff per 1000 m | 6 / 6 A eff |

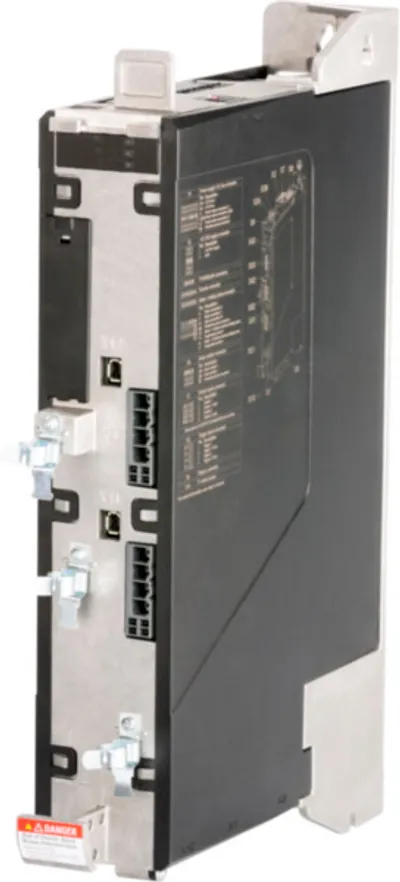

| 8EI8X8HWD10.0100-1 | 1.5 to 6 mm² | Max. 10 kVA | Max. 45 A | 0.88 A eff per 1000 m | 24/24 A eff |
| 8EI8X8MWD10.0100-1 | 1.5 to 6 mm² | Max. 5 kVA | Max. 22 A | 0.88 A eff per 1000 m | 24 / 24 A eff |
| 8EI2X2HWD10.0000-1 | 1.5 to 6 mm² | Max. 5 kVA | Max. 45 A | 0.22 A eff per 1000 m | 6 / 6 A eff |
| 8EI8X8HWD10.0600-1 | 1.5 to 6 mm² | Max. 10 kVA | Max. 45 A | 0.88 A eff per 1000 m | 24/24 A eff |
| 8EI4X5HWD10.0200-1 | 1.5 to 6 mm² | Max. 10 kVA | Max. 45 A | 0.45 A eff per 1000 m | 12.25 / 12.25 A eff |
| 8EI8X8HWD10.0700-1 | 1.5 to 6 mm² | Max. 10 kVA | Max. 45 A | 0.88 A eff per 1000 m | 24/24 A eff |
| 8EI2X2HWD10.0200-1 | 1.5 to 6 mm² | Max. 5 kVA | Max. 45 A | 0.22 A eff per 1000 m | 6 / 6 A eff |
| 8EI2X2HWD10.0600-1 | 1.5 to 6 mm² | Max. 5 kVA | Max. 45 A | 0.22 A eff per 1000 m | 6 / 6 A eff |
| 8EI4X5HWD10.0600-1 | 1.5 to 6 mm² | Max. 10 kVA | Max. 45 A | 0.45 A eff per 1000 m | 12.25 / 12.25 A eff |
| 8EI2X2HWD10.0A00-1 | 1.5 to 6 mm² | Max. 5 kVA | Max. 45 A | 0.22 A eff per 1000 m | 6 / 6 A eff |
| 8EI2X2MWD10.0A00-1 | 1.5 to 6 mm² | Max. 2.5 kVA | Max. 22 A | 0.22 A eff per 1000 m | 6 / 6 A eff |
| 8EI8X8HWD10.0200-1 | 1.5 to 6 mm² | Max. 10 kVA | Max. 45 A | 0.88 A eff per 1000 m | 24/24 A eff |
| 8EI2X2MWD10.0700-1 | 1.5 to 6 mm² | Max. 2.5 kVA | Max. 22 A | 0.22 A eff per 1000 m | 6 / 6 A eff |
| 8EI2X2HWD10.0700-1 | 1.5 to 6 mm² | Max. 5 kVA | Max. 45 A | 0.22 A eff per 1000 m | 6 / 6 A eff |
| 8EI2X2MWD10.0000-1 | 1.5 to 6 mm² | Max. 2.5 kVA | Max. 22 A | 0.22 A eff per 1000 m | 6 / 6 A eff |
| 8EI8X8HWD10.0400-1 | 1.5 to 6 mm² | Max. 10 kVA | Max. 45 A | 0.88 A eff per 1000 m | 24/24 A eff |
Common to all listed parts
| Support – Dynamic node allocation (DNA) | Yes |
| Slots for plug-in modules | 1 |
| Frequency | 50 / 60 Hz ±4% |
| Input voltage | 24 VDC ±25% |
| Protective measures – Overload protection | Yes |
| Protective measures – Short-circuit and ground fault protection | Yes |
| Variant – U, V, W, PE | Connector |
| Quantity | 2 |
