CPU 414 Parts
Compare CPU 414
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product type designation | from backplane bus 5 V DC, typ. | from backplane bus 5 V DC, max. | Power loss, typ. | Number of DP masters — via interface module |
|---|---|---|---|---|---|

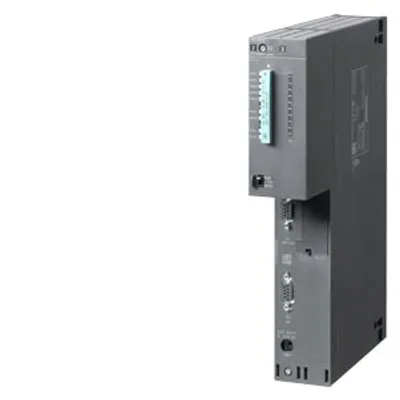

| 6ES7414-3XM07-0AB0 | CPU 414-3 | 1.1 A | 1.3 A | 5.5 W | 1 |

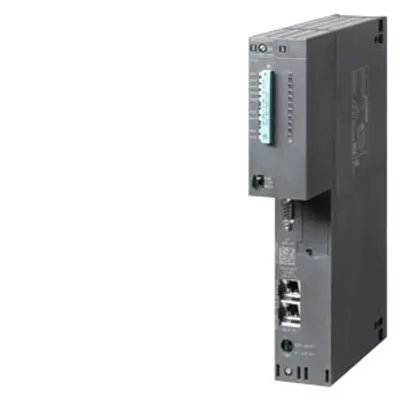

| 6ES7414-3EM07-0AB0 | CPU 414-3 PN/DP | 1.3 A | 1.6 A | 6.5 W | 1; IF 964-DP |

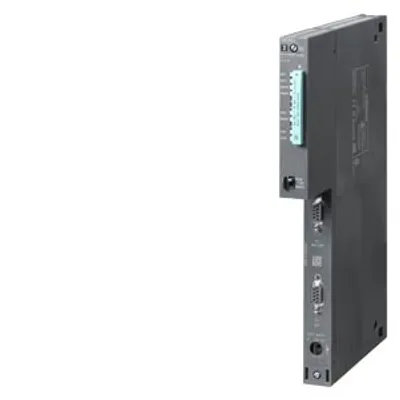

| 6ES7414-2XL07-0AB0 | CPU 414-2 | 0.9 A | 1.1 A | 4.5 W | 0 |
Common to all listed parts
| HW functional status | 01 |
| Firmware version | V7.0 |
| CiR synchronization time, basic load | 100 ms |
| CiR synchronization time, time per I/O byte | 15 µs |
| Rated value (DC) | Power supply via system power supply |
| from interface 5 V DC, max. | 90 mA; At each DP interface |
| Type of memory | RAM |
| Work memory — expandable | No |
