Counter functions Parts

B&R

I/O module, 1 ABR incremental encoder 5 V

B&R

I/O module, ultrasonic path measurement module

B&R

I/O module, 1 SSI absolute encoder 5 V

B&R

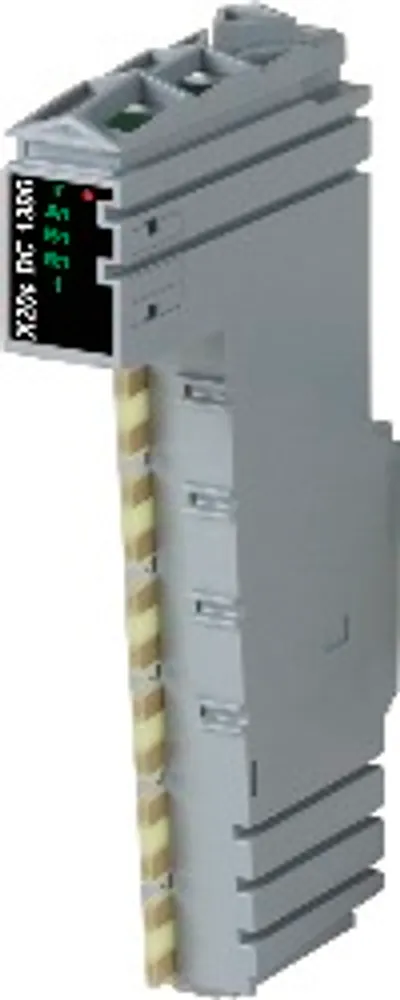

I/O module, 1 ABR incremental encoder 24 V

B&R

I/O module, 1 SSI absolute encoders 24 V

Compare Counter functions

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Power consumption – Internal I/O	Quantity	Input current at 24 VDC	Input resistance	Encoder inputs
X20cDC1196	1.5 W	2	Approx. 3.3 mA	7.19 kΩ	5 V, symmetrical
X20cDC2190	1.1 W	2	—	—	—
X20cDC1198	1.5 W	2	Approx. 3.3 mA	7.19 kΩ	5 V, symmetrical
X20cDC1396	1.4 W	1	Approx. 3.3 mA	7.19 kΩ	24 V, asymmetrical
X20cDC2395	1.4 W	2	Approx. 1.3 mA	18.4 kΩ	24 V, asymmetrical

Diagnostics – Module run/error	Yes, using LED status indicator and software
Power consumption – Bus	0.01 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W]	-
