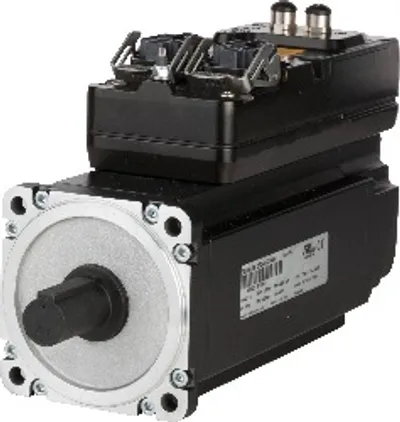

8DI4 (size 4; integrated servo drive) Parts
Compare 8DI4 (size 4; integrated servo drive)
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal torque M n [Nm] | Nominal power P N [W] | Nominal current I N [A] | Stall torque M 0 [Nm] | Stall current I 0 [A] |
|---|---|---|---|---|---|
| 8DI440.ff022hi00-1 | 5 | 1037 | 2.26 | 5.7 | 2.57 |
| 8DI450.ff022hi00-1 | 5.1 | 1175 | 2.4 | 6.7 | 3.02 |
| 8DI460.ff022hi00-1 | 5.2 | 1198 | 2.35 | 7.7 | 3.49 |
| 8DI44S.ff022hi00-1 | 5 | 1037 | 2.26 | 5.7 | 2.57 |
| 8DI45S.ff022hi00-1 | 5.1 | 1175 | 2.4 | 6.7 | 3.02 |
| 8DI46S.ff022hi00-1 | 5.2 | 1198 | 2.35 | 7.7 | 3.49 |
Common to all listed parts
| Nominal speed n N [rpm] | 2200 |
| Number of pole pairs | 5 |
| Maximum speed n max [rpm] | 12000 |
| Torque constant K T [Nm/A] | 2.22 |
| Voltage constant K E [V/1000 rpm] | 134.04 |
