System units Parts
Compare System units
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Processor – Type | Processor – Clock frequency | Processor – Thermal design power (TDP) | Memory – Memory size | Graphics – Max. dynamic graphics frequency |
|---|---|---|---|---|---|
| 5PPC2100.BY48-000 | Intel Atom E3845 | 1910 MHz | 10 W | 8 GB | 792 MHz |
| 5PPC2100.BY01-000 | Intel Atom E3815 | 1460 MHz | 5 W | 1 GB | 400 MHz |

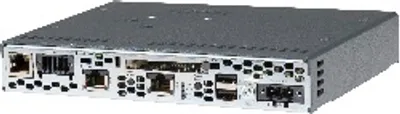

| 5PPC2100.BY11-000 | Intel Atom E3825 | 1330 MHz | 6 W | 1 GB | 533 MHz |
| 5PPC2100.BY22-000 | Intel Atom E3826 | 1460 MHz | 7 W | 2 GB | 667 MHz |
| 5PPC2100.BY34-000 | Intel Atom E3827 | 1750 MHz | 8 W | 4 GB | 792 MHz |
| 5PPC2100.BY44-000 | Intel Atom E3845 | 1910 MHz | 10 W | 4 GB | 792 MHz |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Non-compliant |
| Certifications – UL | cULus E115267; Industrial control equipment |
| LEDs | Power, CFast, Link, Run |
| Cooling | Passive via housing |
| Power button | Yes |
| Reset button | Yes |
