Additional EMC filters Parts

B&R

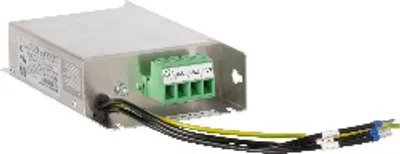

ACOPOSinverter additional EMC input filter 3-phase 15 A

B&R

ACOPOSinverter additional EMC input filter 3-phase 25 A

B&R

ACPi long distance filter 3-ph 120 A

B&R

ACPi long distance filter 3-ph 162 A

B&R

ACPi long distance filter 3-ph 100 A

B&R

ACPi long distance filter 3-ph 234 A

B&R

ACOPOSinverter additional EMC input filter 3-phase 50 A

B&R

ACOPOSinverter additional EMC input filter 3-phase 70 A

B&R

ACOPOSinverter additional EMC input filter 3-phase 100 A

B&R

ACOPOSinverter additional EMC input filter 3-phase 160 A

B&R

ACOPOSinverter EMC additional EMC input filter 3-phase 200…

Compare Additional EMC filters

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Power dissipation	Nominal filter current	Dimensions – Width	Dimensions – Height	Weight
8I0FT015.200-1	9.9 W	15 A	107 mm	195 mm	0.9 kg
8I0FT025.200-1	15.8 W	25 A	140 mm	235 mm	1.35 kg
8I0FT050.200-1	8 W	50 A	90 mm	285 mm	5.2 kg
8I0FT070.200-1	10 W	70 A	100 mm	330 mm	6.1 kg
8I0FT100.200-1	12.4 W	100 A	120 mm	340 mm	6.5 kg
8I0FT160.200-1	25 W	160 A	130 mm	395 mm	8.5 kg
8I0FT200.200-1	32.5 W	200 A	200 mm	445 mm	9.5 kg

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
