Shield component sets Parts

B&R

Shield component set is installed on the…

B&R

ACOPOS P3 shield component set: 1x shield connection clamp…

B&R

ACOPOS P3 shield component set: 1x shield connection clamp…

B&R

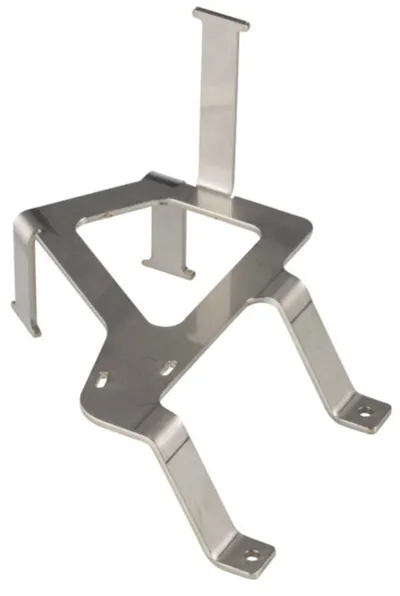

Shield component set is installed on the…

B&R

Shield component set consists of a support…

B&R

ACOPOS P3 shield set: 10x grounding clamp SKDZ4 8-11 mm

B&R

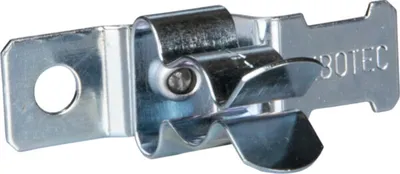

ACOPOS P3 shield set: 100x grounding clamp SKDZ4 8-11 mm

B&R

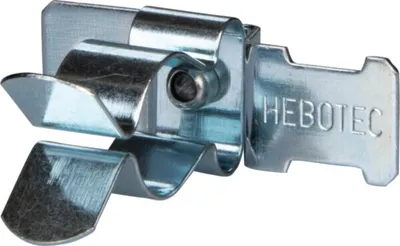

ACOPOS P3 shield set: 10x grounding clamp SKDZ4 11-16 mm

B&R

ACOPOS P3 shield set: 100x grounding clamp SKDZ4 11-16 mm

B&R

ACOPOS P3 shield set: 10x grounding clamp SKDZ4 17-22 mm

B&R

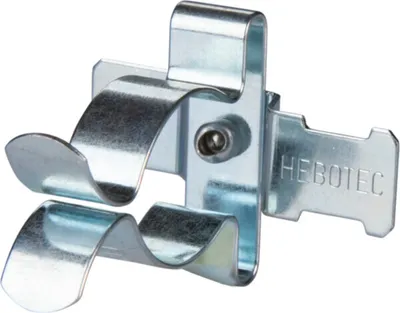

ACOPOS P3 shield set: 100x grounding clamp SKDZ4 17-22 mm

Compare Shield component sets

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Dimensions – Width	Dimensions – Height	Weight	Cable terminals
8SCSE01.0100-00	57.5 mm	108.6 mm	85 g	—
8SCSE02.0100-00	17 mm	54 mm	20 g	4 to 13.5 mm

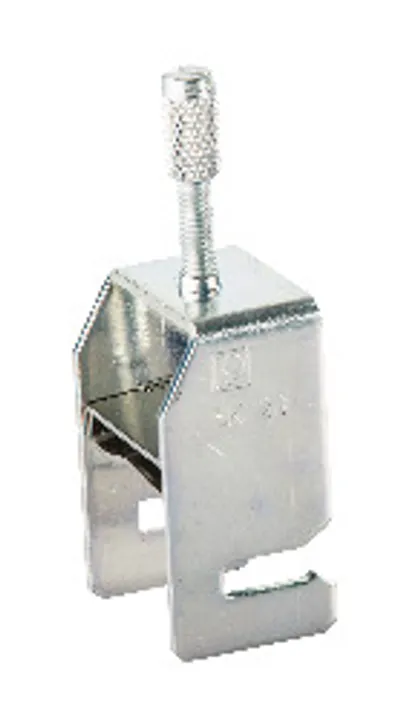

8SCSE02.0200-00	24 mm	63 mm	28 g	4 to 20 mm
8SCSE01.0200-00	84 mm	108.6 mm	80 g	—

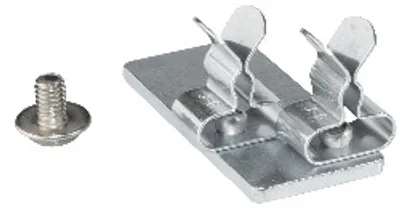

8SCSE01.0300-00	18 mm	40 mm	18 g	—
8SCSE04.0101-00	12.8 mm	22.5 mm	4 g	8 to 11 mm
8SCSE04.010A-00	12.8 mm	22.5 mm	4 g	8 to 11 mm
8SCSE04.0201-00	12.8 mm	26.5 mm	4 g	11 to 16 mm
8SCSE04.020A-00	12.8 mm	26.5 mm	4 g	11 to 16 mm
8SCSE04.0301-00	26.1 mm	36.5 mm	5 g	17 to 22 mm
8SCSE04.030A-00	26.1 mm	36.5 mm	5 g	17 to 22 mm

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
