1-phase, 24 V DC Parts
Compare 1-phase, 24 V DC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Technical Product Detail Page | type of current supply | input current — at rated input voltage 120 V | input current — at rated input voltage 230 V | current limitation of inrush current at 25 °C maximum |
|---|---|---|---|---|---|

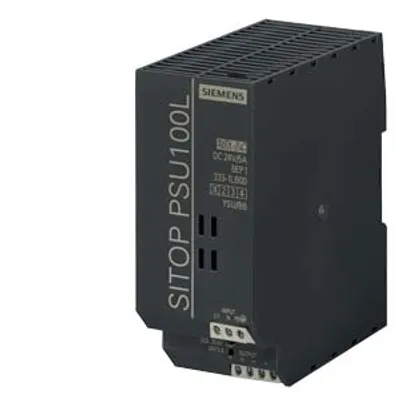

| 6EP1333-1LB00 | https://i.siemens.com/1P6EP1333-1LB00 | 24 V/5 A | 2.1 A | 1.15 A | 32 A |

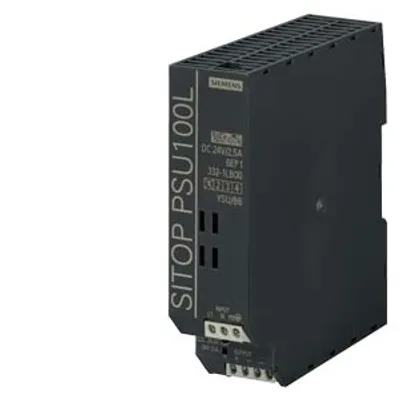

| 6EP1332-1LB00 | https://i.siemens.com/1P6EP1332-1LB00 | 24 V/2.5 A | 1.1 A | 0.65 A | 27 A |

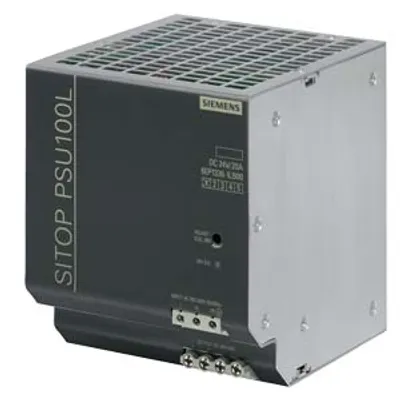

| 6EP1336-1LB00 | https://i.siemens.com/1P6EP1336-1LB00 | 24 V/20 A | 5.55 A | 2.35 A | 45 A |
Common to all listed parts
| product type designation | PSU100L |
| product designation | Power supply SITOP lite |
| phase number | 1 |
| line frequency | 50/60 Hz |
| buffering time for rated value of the output current in the event of power failure minimum | 20 ms |
| operating condition of the mains buffering | at Vin = 93/187 V |
| voltage curve at output | Controlled, isolated DC voltage |
| product function output voltage controlled | Yes |
