Optional EMC filters Parts

B&R

8I0FS009.200-1

EMC filter 1-phase 9 A, side installation, for ACOPOSinverter P74 1x 200-240 V, 0.18-0.75 kW

B&R

8I0FS016.200-1

16 A EMC filter for ACOPOSinverter P76 and P74new

B&R

8I0FS022.200-1

22 A EMC filter for ACOPOSinverter P76 and P74new

B&R

8I0FT047.200-1

47 A EMC filter for ACOPOSinverter P76 and P74new

B&R

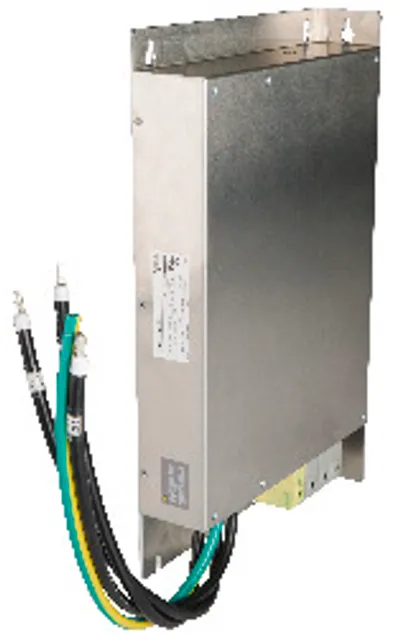

8I0FT049.200-1

49 A EMC filter for ACOPOSinverter P76 and P74new

B&R

8I0FS009.200-2

9 A EMC filter for ACOPOSinverter P76 and P74new

B&R

8I0FS016.200-3

ACPi additional EMC input filter 3-phase 47 A supply…

B&R

8I0FS022.200-2

ACPi additional EMC input filter 1-phase 22 A supply…

B&R

8I0FS010.57R-1

ACPi reduced leakage filter 1-ph 10 A

B&R

8I0FS006.57R-1

ACPi reduced leakage filter 1-ph 6 A

B&R

8I0FS010.57L-1

ACPi long distance filter 1-ph 10 A

B&R

8I0FS022.57L-1

ACPi long distance filter 1-ph 22.5 A

B&R

8I0FS022.57R-1

ACPi reduced leakage filter 1-ph 22.5 A

B&R

8I0FS022.57S-1

ACPi short distance filter 1-ph 22 A

B&R

8I0FS010.57S-1

ACPi short distance filter 1-ph 10 A

Compare Optional EMC filters

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Power dissipation	Nominal filter current	Max. fault current	Max. relative humidity per IEC 60068-2-3	Weight
8I0FS016.200-1	6.9 W	16 A	150 mA	95%, non-condensing ; No dripping water	0.775 kg
8I0FS022.200-1	7.5 W	22 A	80 mA	95%, non-condensing; No dripping water	1.13 kg
8I0FT047.200-1	19.3 W	47 A	45 mA	95%, non-condensing; No dripping water	3.15 kg
8I0FT049.200-1	27.4 W	49 A	45 mA	95%, non-condensing; No dripping water	4.75 kg
8I0FS009.200-2	3.7 W	9 A	100 mA	93%, non-condensing; No dripping water	0.6 kg
8I0FS016.200-3	—	—	—	—	—
8I0FS022.200-2	—	—	—	—	—

Common to all listed parts

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
