Optional EMC filters Parts
Compare Optional EMC filters
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Power dissipation | Max. nominal voltage | Nominal filter current | Max. fault current | Weight |
|---|---|---|---|---|---|
| 8I0FT007.200-1 | 2.6 W | 3x 240 VAC +10% | 7 A | 7 mA | 0.65 kg |

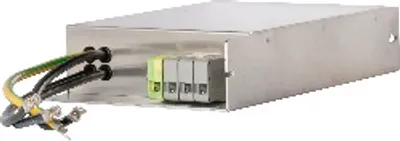

| 8I0FT083.200-1 | 35.2 W | 3x 500 VAC +10% | 83 A | 15 mA | 5.3 kg |
| 8I0FT015.200-2 | 9.9 W | 3x 240 VAC +10% | 15 A | 15 mA | 1 kg |
| 8I0FT025.400-1 | 15.8 W | 3x 500 VAC +10% | 25 A | 35 mA | 1.35 kg |
| 8I0FT047.201-1 | 19.3 W | 3x 500 VAC +10% | 47 A | 45 mA | 3.15 kg |
Common to all listed parts
| Certifications – CE | Yes |
| Installation elevation above sea level | 0 to 1000 m (note: Over 1000 m, current reduced by 1% per 100 m) |
| Degree of protection per EN 60529 | IP21 and IP41 on the upper part |
| Max. relative humidity per IEC 60068-2-3 | 95%, non-condensing ; No dripping water |
| Ambient temperature | -10 to 50°C |
| Temperature – Storage | -25 to 70°C |
| Installation | Below or next to the inverter |
| Conformity to standard | EN 133200 |
