Shuttles S3 Parts

B&R

ACOPOS 6D shuttle S3 120 x 120 mm

B&R

ACOPOS 6D shuttle S3 120 x 120 mm, hygienic

B&R

ACOPOS 6D shuttle S3 180 x 180 mm

B&R

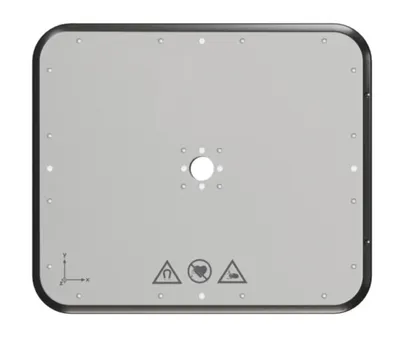

ACOPOS 6D shuttle S3 180 x 210 mm

B&R

ACOPOS 6D shuttle S3 210 x 210 mm

B&R

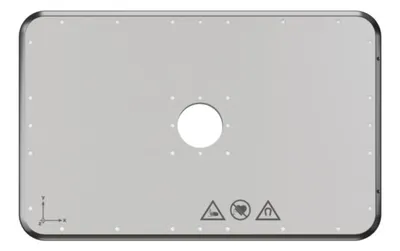

ACOPOS 6D shuttle S3 210 x 330 mm

B&R

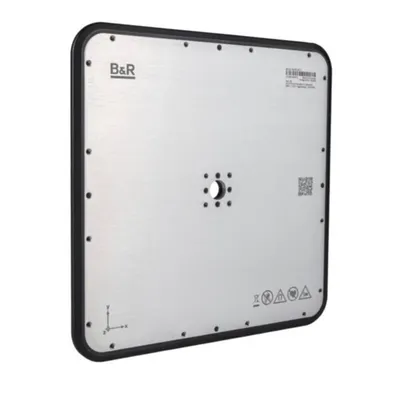

ACOPOS 6D shuttle S3 240 x 240 mm

B&R

ACOPOS 6D shuttle S3 300 x 300 mm

B&R

ACOPOS 6D shuttle S3 330 x 330 mm

B&R

ACOPOS 6D shuttle S3 450 x 450 mm

B&R

ACOPOS 6D shuttle S3 120 x 180 mm

B&R

ACOPOS 6D shuttle S3 120 x 240 mm

Compare Shuttles S3

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Payload – Maximum	Dimensions – Width	Dimensions – Length	Dimensions – Height	Weight
8FLS3.12120.00I-1	0.6 kg	118 mm	118 mm	9.85 mm	0.53 kg
8FLS3.1212H.00I-1	—	—	—	—	0.56 kg
8FLS3.18180.00I-1	2.5 kg	178 mm	178 mm	9.85 mm	1.47 kg
8FLS3.18210.00I-1	3 kg	178 mm	208 mm	9.85 mm	1.7 kg
8FLS3.21210.00I-1	3.5 kg	208 mm	208 mm	9.85 mm	1.93 kg
8FLS3.21330.00I-1	6 kg	208 mm	328 mm	11.85 mm	3.44 kg
8FLS3.24240.00I-1	5 kg	238 mm	238 mm	9.85 mm	2.85 kg
8FLS3.30300.00I-1	8 kg	298 mm	298 mm	11.85 mm	4.97 kg
8FLS3.33330.00I-1	10 kg	328 mm	328 mm	11.85 mm	5.89 kg
8FLS3.45450.00I-1	20 kg	448 mm	448 mm	15.85 mm	12.45 kg
8FLS3.12180.00I-1	1 kg	118 mm	178 mm	9.85 mm	0.88 kg
8FLS3.12240.00I-1	1.5 kg	118 mm	238 mm	9.85 mm	1.23 kg

Maximum velocity	3 m/s
Repeat accuracy	Typ. 1 µm
Shuttle temperature during operation	-25 to 70°C
