Wall mounting Parts
Compare Wall mounting
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | DC bus capacitance | Reduction of continuous current depending on installation elevation – Starting at 500 m above sea level | Peak current | Energy efficiency (IE classification) – Nominal losses in standby mode | Weight |
|---|---|---|---|---|---|
| 8BVI0014HWS0.000-1 | 165 µF | 0.19 A eff per 1000 m | 4.7 A eff | 7.5 W | Approx. 2.6 kg |
| 8BVI0028HWS0.000-1 | 165 µF | 0.38 A eff per 1000 m | 9.5 A eff | 7.5 W | Approx. 2.6 kg |

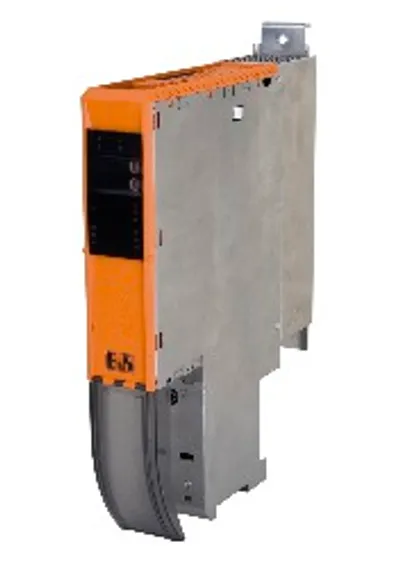

| 8BVI0055HWS0.000-1 | 165 µF | 0.76 A eff per 1000 m | 18.9 A eff | 7.5 W | Approx. 2.7 kg |
| 8BVI0110HWS0.000-1 | 330 µF | 1.51 A eff per 1000 m | 37.7 A eff | 7.5 W | Approx. 2.9 kg |
| 8BVI0220HWS0.000-1 | 495 µF | 2.2 A eff per 1000 m | 55 A eff | 10.3 W | Approx. 5.2 kg |
| 8BVI0330HWS0.000-1 | 990 µF | 3.3 A eff per 1000 m | 83 A eff | 10.3 W | Approx. 5.4 kg |
| 8BVI0440HWS0.000-1 | 990 µF | 4.4 A eff per 1000 m | 88 A eff | 10.3 W | Approx. 5.4 kg |
| 8BVI0660HWS0.000-1 | 1980 µF | 6.6 A eff per 1000 m | 132 A eff | 10.5 W | Approx. 10.9 kg |
| 8BVI0880HWS0.000-1 | 1980 µF | 8.8 A eff per 1000 m | 176 A eff | — | Approx. 9.6 kg |
| 8BVI0880HWS0.004-1 | 1980 µF | 8.8 A eff per 1000 m | 176 A eff | 10.5 W | Approx. 10.9 kg |

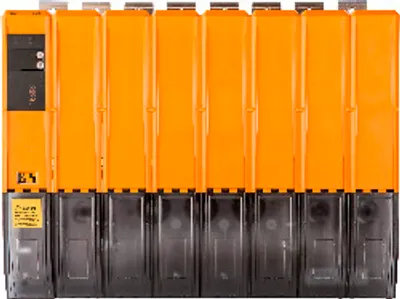

| 8BVI1650HWS0.000-1 | 3630 µF | 16.5 A eff per 1000 m | 330 A eff | 13.8 W | 24.7 kg |

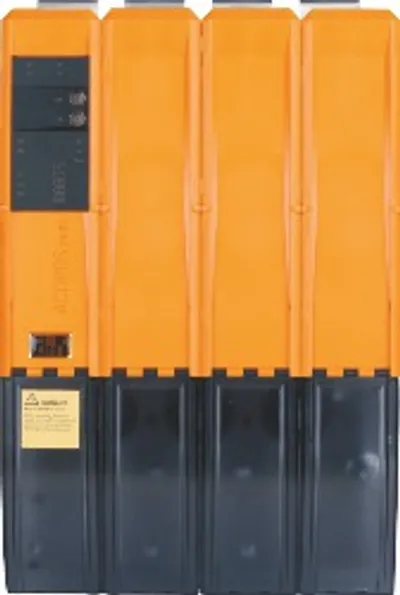

| 8BVI0660HWS0.008-1 | 1980 µF | 6.6 A eff per 1000 m | 132 A eff | 10.5 W | Approx. 10.85 kg |
| 8BVI0880HWS0.008-1 | 1980 µF | 8.8 A eff per 1000 m | 176 A eff | 10.5 W | Approx. 10.9 kg |
| 8BVI0014HWS0.000-3 | 165 µF | 0.19 A eff per 1000 m | 4.7 A eff | 8.5 W | Approx. 2.6 kg |
| 8BVI0028HWS0.000-3 | 165 µF | 0.38 A eff per 1000 m | 9.5 A eff | 8.5 W | Approx. 2.6 kg |
| 8BVI0055HWS0.000-3 | 165 µF | 0.76 A eff per 1000 m | 18.9 A eff | 8.5 W | Approx. 2.7 kg |
| 8BVI0110HWS0.000-3 | 330 µF | 1.51 A eff per 1000 m | 37.7 A eff | 8.5 W | Approx. 2.9 kg |

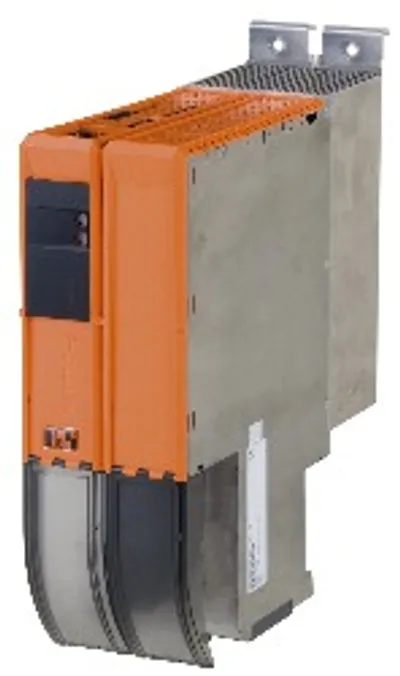

| 8BVI0220HWS0.000-3 | 495 µF | 2.2 A eff per 1000 m | 55 A eff | 11.5 W | Approx. 5.2 kg |

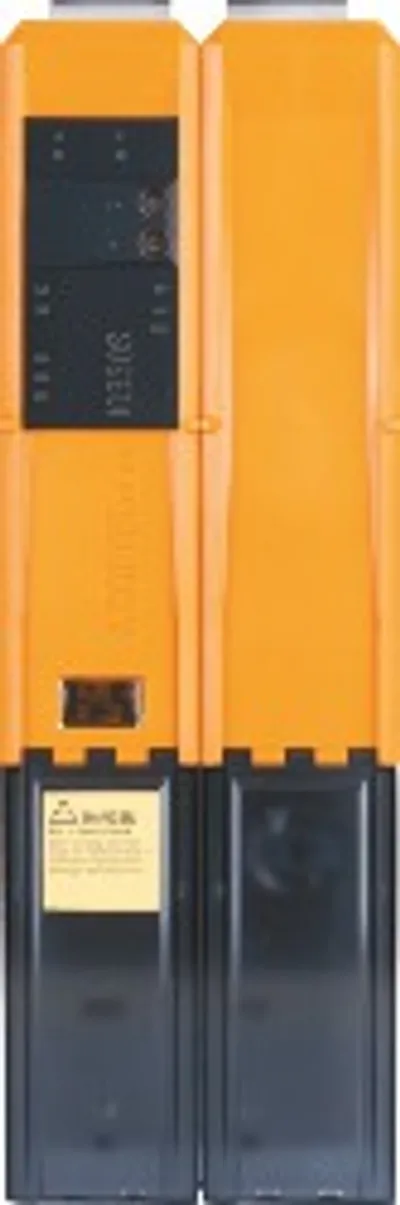

| 8BVI0330HWS0.000-3 | 990 µF | 3.3 A eff per 1000 m | 83 A eff | 11.5 W | Approx. 5.4 kg |
| 8BVI0440HWS0.000-3 | 990 µF | 4.4 A eff per 1000 m | 88 A eff | 11.5 W | Approx. 5.4 kg |

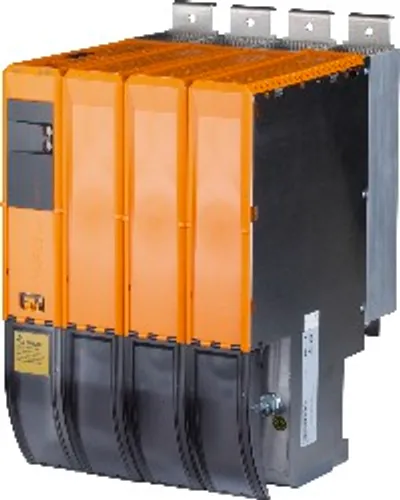

| 8BVI0880HWS0.008-3 | 1980 µF | 8.8 A eff per 1000 m | 176 A eff | 11.8 W | Approx. 10.9 kg |
| 8BVI0660HWS0.008-3 | 1980 µF | 6.6 A eff per 1000 m | 132 A eff | 11.8 W | Approx. 10.85 kg |
| 8BVI1650HWS0.004-1 | 3630 µF | 16.5 A eff per 1000 m | 330 A eff | 14.5 W | 23 kg |
| 8BVI2000HWS0.000-1 | 3630 µF | 20.0 A eff per 1000 m | 330 A eff | 14.5 W | 23 kg |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – Functional safety | Yes |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Cooling and mounting type | Wall mounting |
| Slots for plug-in modules | 2 |
| Voltage – Nominal | 750 VDC |
| Input voltage | 25 VDC ±1.6% |
