Cold plate or feed-through mounting Parts
Compare Cold plate or feed-through mounting
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Installed load | Inrush current | DC bus capacitance | Reduction of continuous current depending on installation elevation – Starting at 500 m above sea level | Peak current per motor connection |
|---|---|---|---|---|---|
| 8EI2X2HCTS0.XXXX-1 | Max. 7.5 kVA | Max. 45 A | 470 µF | 0.22 A eff per 1000 m | 6 / 6 / 6 A eff |
| 8EI2X2MCTS0.XXXX-1 | Max. 3.75 kVA | Max. 22 A | 1880 µF | 0.22 A eff per 1000 m | 6 / 6 / 6 A eff |
| 8EI4X5HCTS0.XXXX-1 | Max. 10 kVA | Max. 45 A | 470 µF | 0.45 A eff per 1000 m | 12.25 / 12.25 / 12.25 A eff |

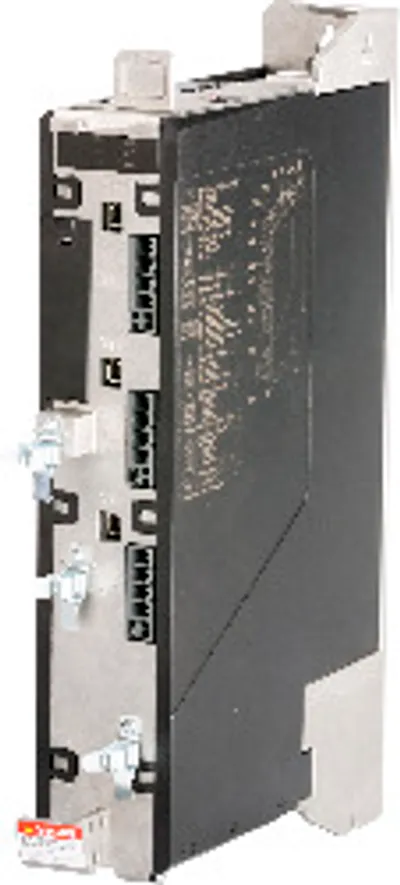

| 8EI4X5MCTS0.XXXX-1 | Max. 5 kVA | Max. 22 A | 1880 µF | 0.45 A eff per 1000 m | 12.25 / 12.25 / 12.25 A eff |
| 8EI8X8HCTS0.XXXX-1 | Max. 10 kVA | Max. 45 A | 470 µF | 0.88 A eff per 1000 m | 24 / 24 / 24 A eff |
| 8EI8X8MCTS0.XXXX-1 | Max. 5 kVA | Max. 22 A | 1880 µF | 0.88 A eff per 1000 m | 24 / 24 / 24 A eff |
Common to all listed parts
| Support – Dynamic node allocation (DNA) | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Certifications – KC | In preparation |
| Slots for plug-in modules | 1 |
| Terminal connection cross section – With wire end sleeve | 0.25 to 4 mm² |
