Output expansions Parts
Compare Output expansions
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] maximum | Net Weight | make time with automatic start — typical | make time with automatic start after power failure — typical | make time with automatic start after power failure — maximum |
|---|---|---|---|---|---|
| 3SK1213-2AL20 | 3.5 W | 0.772 kg | 10 ms | 10 ms | 15 ms |
| 3SK1213-2AJ20 | 4 W | 0.93 kg | 10 ms | 10 ms | 15 ms |

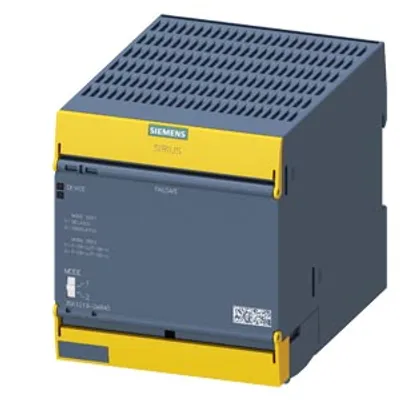

| 3SK1213-2AB40 | 5.5 W | 0.93 kg | 50 ms | 50 ms | 70 ms |
Common to all listed parts
| product category | Safety relays |
| product designation | Output expansion |
| design of the product | Relay enabling circuits |
| product type designation | 3SK1 |
| suitability for use — safety-related circuits | Yes |
| certificate of suitability UL approval | Yes |
| product feature protective coating on printed-circuit board | No |
| insulation voltage rated value | 300 V |
