SIRIUS 3RT25 contactors, 4-pole, 2 NO + 2 NC Parts

Siemens

3RT2535-1NF30

Power contactor, AC-3, 35 A, 18.5 kW / 400 V, 4-pole

Siemens

3RT2535-1NB30

Power contactor, AC-3, 35 A, 18.5 kW / 400 V, 4-pole

Siemens

3RT2535-1AP60

Power contactor, AC-3, 35 A, 18.5 kW / 400 V, 4-pole

Siemens

3RT2535-1AP00

Power contactor, AC-3, 35 A, 18.5 kW / 400 V, 4-pole

Siemens

3RT2535-1AL20

Power contactor, AC-3, 35 A, 18.5 kW / 400 V, 4-pole

Siemens

3RT2535-1AK60

Power contactor, AC-3, 35 A, 18.5 kW / 400 V, 4-pole

Siemens

3RT2526-1BW40

Power contactor, AC-3, 25 A, 11 kW / 400 V, 4-pole, 48 V DC

Siemens

3RT2526-1BP40

Power contactor, AC-3, 25 A, 11 kW / 400 V, 4-pole

Siemens

3RT2526-1BM40

Power contactor, AC-3, 25 A, 11 kW / 400 V, 4-pole

Siemens

3RT2526-1BJ80

Power contactor, AC-3, 25 A, 11 kW / 400 V, 4-pole, 72 V DC

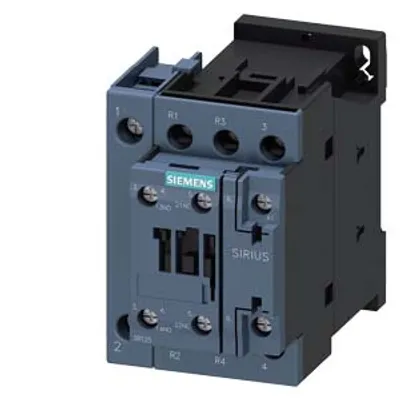

Siemens

3RT2526-1AK60

Power contactor, AC-3, 25 A, 11 kW / 400 V, 4-pole

Siemens

3RT2526-1AH20

Power contactor, AC-3, 25 A, 11 kW / 400 V, 4-pole, 48 V AC

Siemens

3RT2526-1AG20

Power contactor, AC-3, 25 A, 11 kW / 400 V, 4-pole

Siemens

3RT2545-1AK60

Power contactor, AC-3, 80 A, 37 kW / 400 V, 4-pole

Siemens

3RT2545-1AF00

Power contactor, AC-3, 80 A, 37 kW / 400 V, 4-pole

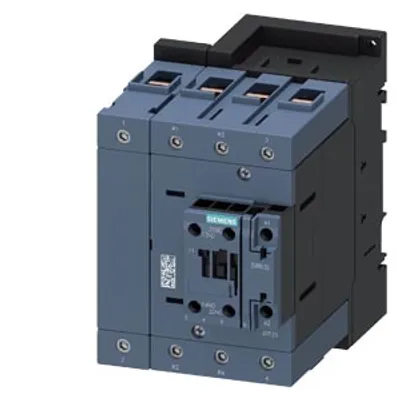

Siemens

3RT2545-1AB00

Power contactor, AC-3, 80 A, 37 kW / 400 V, 4-pole, 24 V AC

Siemens

3RT2526-2AP00

Power contactor, AC-3, 25 A, 11 kW / 400 V, 4-pole

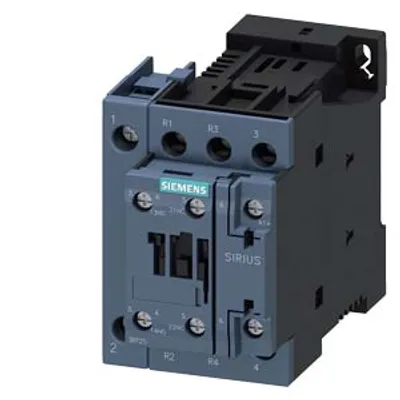

Siemens

3RT2526-1BA40

Power contactor, AC-3, 25 A, 11 kW / 400 V, 4-pole, 12 V DC

Siemens

3RT2518-2AF00

Power contactor, AC-3, 16 A, 7.5 kW / 400 V, 4-pole

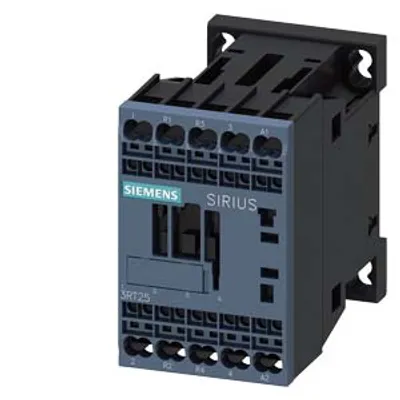

Siemens

3RT2518-2AB00

Power contactor, AC-3, 16 A, 7.5 kW / 400 V, 4-pole

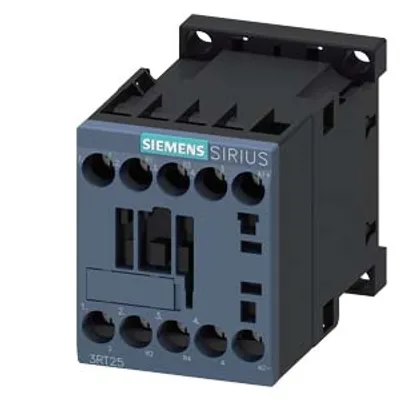

Siemens

3RT2518-1BW40

Power contactor, AC-3, 16 A, 7.5 kW / 400 V, 4-pole

Siemens

3RT2518-1BM40

Power contactor, AC-3, 16 A, 7.5 kW / 400 V, 4-pole

Siemens

3RT2518-1BJ80

Power contactor, AC-3, 16 A, 7.5 kW / 400 V, 4-pole

Siemens

3RT2518-1BF40

Power contactor, AC-3, 16 A, 7.5 kW / 400 V, 4-pole

Compare SIRIUS 3RT25 contactors, 4-pole, 2 NO + 2 NC

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	power loss [W] for rated value of the current — without load current share typical	Net Weight	apparent pick-up power of magnet coil at AC	inductive power factor with closing power of the coil	apparent holding power of magnet coil at AC
3RT2535-1NF30	2.4 W	1.139 kg	110 V·A	0.95	2.5 V·A
3RT2535-1NB30	2.4 W	1.152 kg	110 VA	0.95	2.5 VA
3RT2535-1AP60	6.9 W	1.092 kg	212 V·A	0.67	18.5 V·A
3RT2535-1AP00	6.5 W	1.1 kg	190 V·A	0.72	16 V·A
3RT2535-1AL20	6.5 W	1.103 kg	210 V·A	0.69	17.2 V·A
3RT2535-1AK60	6.9 W	1.16 kg	212 V·A	0.67	18.5 V·A
3RT2526-1BW40	5.9 W	612.88 g	—	—	—
3RT2526-1BP40	5.9 W	641.58 g	—	—	—
3RT2526-1BM40	5.9 W	0.629 kg	—	—	—
3RT2526-1AK60	2.7 W	443.88 g	87 V·A	0.76	9.4 V·A
3RT2526-1AH20	2.7 W	0.447 kg	81 V·A	0.72	10.5 V·A
3RT2526-1AG20	2.7 W	0.443 kg	81 V·A	0.72	10.5 V·A
3RT2545-1AK60	8.4 W	1.875 kg	326 V·A	0.62	22 V·A
3RT2545-1AF00	7.3 W	1.905 kg	296 V·A	0.61	19 V·A
3RT2545-1AB00	7.3 W	1.913 kg	296 V·A	0.61	19 V·A
3RT2526-2AP00	2.7 W	537.71 g	77 V·A	0.82	9.8 V·A
3RT2526-1BA40	5.9 W	0.625 kg	—	—	—
3RT2518-2AF00	1.5 W	0.24 kg	37 V·A	0.8	5.7 V·A
3RT2518-2AB00	1.5 W	0.242 kg	37 V·A	0.8	5.7 V·A
3RT2518-1BW40	4 W	0.274 kg	—	—	—
3RT2518-1BM40	4 W	0.284 kg	—	—	—
3RT2518-1BJ80	4 W	0.275 kg	—	—	—
3RT2518-1BF40	4 W	0.279 kg	—	—	—

Common to all listed parts

product designation	contactor
product type designation	3RT25
product extension — function module for communication	No
product extension — auxiliary switch	Yes
type of calculation of power loss current-dependent	quadratic
insulation voltage — of auxiliary circuit with degree of pollution 3 rated value	690 V
surge voltage resistance — of auxiliary circuit rated value	6 kV
mechanical service life (operating cycles) — of the contactor with added electronically optimized auxiliary switch block typical	5 000 000
