1492-RCDA Residual Current Devices Parts
Compare 1492-RCDA Residual Current Devices
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Number of Poles | Sensitivity | Current (A) | Standard/ United States 110V option |
|---|---|---|---|---|
| 1492-RCDA4B63 | 4-pole | 100mA Sensitivity | 63 A | Standard, Utmin 170V |
| 1492-RCDA4D80 | 4-pole | 500mA Sensitivity | 80 A | Standard, Utmin 170V |
| 1492-RCDA4D63 | 4-pole | 500mA Sensitivity | 63 A | Standard, Utmin 170V |
| 1492-RCDA4C80 | 4-pole | 300mA Sensitivity | 80 A | Standard, Utmin 170V |
| 1492-RCDA4C40 | 4-pole | 300mA Sensitivity | 40 A | Standard, Utmin 170V |
| 1492-RCDA4B63S | 4-pole | 100mA Sensitivity | 63 A | Standard, Utmin 170V |
| 1492-RCDA4B25 | 4-pole | 100mA Sensitivity | 25 A | Standard, Utmin 170V |
| 1492-RCDA4A63 | 4-pole | 30mA Sensitivity | 63 A | Standard, Utmin 170V |
| 1492-RCDA4A40 | 4-pole | 30mA Sensitivity | 40 A | Standard, Utmin 170V |
| 1492-RCDA4A25-US | 4-pole | 30mA Sensitivity | 25 A | United States, Ut min 110V option |
| 1492-RCDA4A25 | 4-pole | 30mA Sensitivity | 25 A | Standard, Utmin 170V |
| 1492-RCDA2C40 | 2-pole | 300mA Sensitivity | 40 A | Standard, Utmin 170V |
| 1492-RCDA2B40 | 2-pole | 100mA Sensitivity | 40 A | Standard, Utmin 170V |
| 1492-RCDA2B25 | 2-pole | 100mA Sensitivity | 25 A | Standard, Utmin 170V |

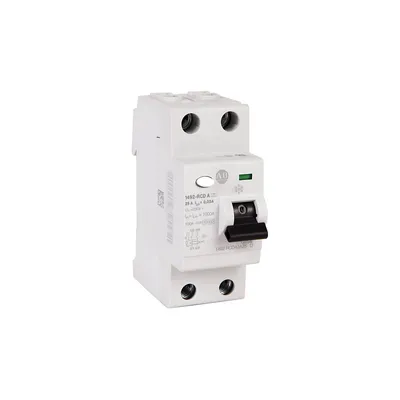

| 1492-RCDA2A40-US | 2-pole | 30mA Sensitivity | 40 A | United States, Ut min 110V option |
| 1492-RCDA4C63 | 4-pole | 300mA Sensitivity | 63 A | Standard, Utmin 170V |
| 1492-RCDA4C40S | 4-pole | 300mA Sensitivity | 40 A | Standard, Utmin 170V |
| 1492-RCDA4C25 | 4-pole | 300mA Sensitivity | 25 A | Standard, Utmin 170V |
| 1492-RCDA4B40S | 4-pole | 100mA Sensitivity | 40 A | Standard, Utmin 170V |
| 1492-RCDA4B40 | 4-pole | 100mA Sensitivity | 40 A | Standard, Utmin 170V |
| 1492-RCDA4A80 | 4-pole | 30mA Sensitivity | 80 A | Standard, Utmin 170V |
| 1492-RCDA4A63-US | 4-pole | 30mA Sensitivity | 63 A | United States, Ut min 110V option |

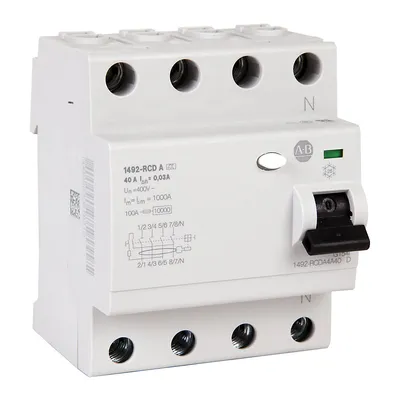

| 1492-RCDA4A40-US | 4-pole | 30mA Sensitivity | 40 A | United States, Ut min 110V option |

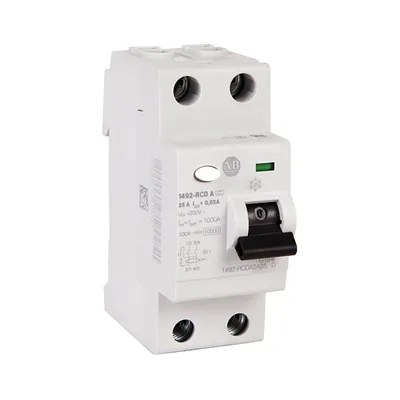

| 1492-RCDA2C25 | 2-pole | 300mA Sensitivity | 25 A | Standard, Utmin 170V |
