Mitsubishi FREQROL inverter – FREQROL-E800 Parts

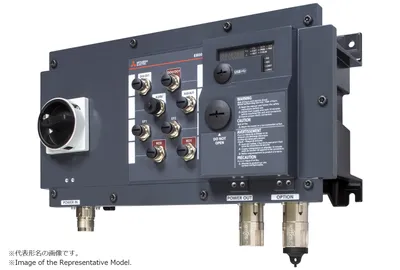

Available on requestFR-E846-0095SCEPB-S6C2 Mitsubishi FREQROL inverter FR-E800MPN: FR-E846-0095SCEPB-S6C2 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-E846-0060SCEPB-S6C2 Mitsubishi FREQROL inverter FR-E800MPN: FR-E846-0060SCEPB-S6C2 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-E846-0040SCEPB-S6C2 Mitsubishi FREQROL inverter FR-E800MPN: FR-E846-0040SCEPB-S6C2 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-E846-0026SCEPB-S6C2 Mitsubishi FREQROL inverter FR-E800MPN: FR-E846-0026SCEPB-S6C2 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-E846-0095SCEPB-60C2 Mitsubishi FREQROL inverter FR-E800MPN: FR-E846-0095SCEPB-60C2 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-E846-0060SCEPB-60C2 Mitsubishi FREQROL inverter FR-E800MPN: FR-E846-0060SCEPB-60C2 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-E846-0040SCEPB-60C2 Mitsubishi FREQROL inverter FR-E800MPN: FR-E846-0040SCEPB-60C2 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-E846-0026SCEPB-60C2 Mitsubishi FREQROL inverter FR-E800MPN: FR-E846-0026SCEPB-60C2 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-E846-0095SCEPA-S6C2 Mitsubishi FREQROL inverter FR-E800MPN: FR-E846-0095SCEPA-S6C2 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-E846-0060SCEPA-S6C2 Mitsubishi FREQROL inverter FR-E800MPN: FR-E846-0060SCEPA-S6C2 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-E846-0040SCEPA-S6C2 Mitsubishi FREQROL inverter FR-E800MPN: FR-E846-0040SCEPA-S6C2 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-E846-0026SCEPA-S6C2 Mitsubishi FREQROL inverter FR-E800MPN: FR-E846-0026SCEPA-S6C2 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-E846-0095SCEPA-60C2 Mitsubishi FREQROL inverter FR-E800MPN: FR-E846-0095SCEPA-60C2 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-E846-0060SCEPA-60C2 Mitsubishi FREQROL inverter FR-E800MPN: FR-E846-0060SCEPA-60C2 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-E846-0040SCEPA-60C2 Mitsubishi FREQROL inverter FR-E800MPN: FR-E846-0040SCEPA-60C2 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-E846-0026SCEPA-60C2 Mitsubishi FREQROL inverter FR-E800MPN: FR-E846-0026SCEPA-60C2 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote
Available on requestFR-E860-0120SCEPC-60 Mitsubishi FREQROL inverter FR-E800MPN: FR-E860-0120SCEPC-60 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-E860-0090SCEPC-60 Mitsubishi FREQROL inverter FR-E800MPN: FR-E860-0090SCEPC-60 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-E860-0061SCEPC-60 Mitsubishi FREQROL inverter FR-E800MPN: FR-E860-0061SCEPC-60 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-E860-0040SCEPC-60 Mitsubishi FREQROL inverter FR-E800MPN: FR-E860-0040SCEPC-60 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-E860-0027SCEPC-60 Mitsubishi FREQROL inverter FR-E800MPN: FR-E860-0027SCEPC-60 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-E860-0017SCEPC-60 Mitsubishi FREQROL inverter FR-E800MPN: FR-E860-0017SCEPC-60 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-E860-0120SCEPB-60 Mitsubishi FREQROL inverter FR-E800MPN: FR-E860-0120SCEPB-60 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-E860-0090SCEPB-60 Mitsubishi FREQROL inverter FR-E800MPN: FR-E860-0090SCEPB-60 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteCompare Mitsubishi FREQROL inverter – FREQROL-E800
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Model name | Output: Rated capacity (kVA) *2: LD | Output: Rated capacity (kVA) *2: ND | Output: Rated current (A) *7: LD | Output: Rated current (A) *7: ND |
|---|---|---|---|---|---|
| FR-E846-0095SCEPB-S6C2 | FR-E846-0095SCEPB-S6C2 | 8.5 | 7.2 | 11.1 (9.4) | 9.5 (8.7) |
| FR-E846-0060SCEPB-S6C2 | FR-E846-0060SCEPB-S6C2 | 5.3 | 4.6 | 6.9 (5.9) | 6.0 (5.4) |
| FR-E846-0040SCEPB-S6C2 | FR-E846-0040SCEPB-S6C2 | 4.2 | 3.0 | 5.5 (4.7) | 4.0 (3.8) |
| FR-E846-0026SCEPB-S6C2 | FR-E846-0026SCEPB-S6C2 | 2.7 | 2.0 | 3.5 (3.0) | 2.6 (2.2) |
| FR-E846-0095SCEPB-60C2 | FR-E846-0095SCEPB-60C2 | 8.5 | 7.2 | 11.1 (9.4) | 9.5 (8.7) |
| FR-E846-0060SCEPB-60C2 | FR-E846-0060SCEPB-60C2 | 5.3 | 4.6 | 6.9 (5.9) | 6.0 (5.4) |
| FR-E846-0040SCEPB-60C2 | FR-E846-0040SCEPB-60C2 | 4.2 | 3.0 | 5.5 (4.7) | 4.0 (3.8) |
| FR-E846-0026SCEPB-60C2 | FR-E846-0026SCEPB-60C2 | 2.7 | 2.0 | 3.5 (3.0) | 2.6 (2.2) |
| FR-E846-0095SCEPA-S6C2 | FR-E846-0095SCEPA-S6C2 | 8.5 | 7.2 | 11.1 (9.4) | 9.5 (8.7) |
| FR-E846-0060SCEPA-S6C2 | FR-E846-0060SCEPA-S6C2 | 5.3 | 4.6 | 6.9 (5.9) | 6.0 (5.4) |
| FR-E846-0040SCEPA-S6C2 | FR-E846-0040SCEPA-S6C2 | 4.2 | 3.0 | 5.5 (4.7) | 4.0 (3.8) |
| FR-E846-0026SCEPA-S6C2 | FR-E846-0026SCEPA-S6C2 | 2.7 | 2.0 | 3.5 (3.0) | 2.6 (2.2) |
| FR-E846-0095SCEPA-60C2 | FR-E846-0095SCEPA-60C2 | 8.5 | 7.2 | 11.1 (9.4) | 9.5 (8.7) |
| FR-E846-0060SCEPA-60C2 | FR-E846-0060SCEPA-60C2 | 5.3 | 4.6 | 6.9 (5.9) | 6.0 (5.4) |
| FR-E846-0040SCEPA-60C2 | FR-E846-0040SCEPA-60C2 | 4.2 | 3.0 | 5.5 (4.7) | 4.0 (3.8) |
| FR-E846-0026SCEPA-60C2 | FR-E846-0026SCEPA-60C2 | 2.7 | 2.0 | 3.5 (3.0) | 2.6 (2.2) |
| FR-E860-0120SCEPC-60 | FR-E860-0120SCEPC-60 | 15.9 | 12.0 | 16.0 (13.6) | 12.0 |
| FR-E860-0090SCEPC-60 | FR-E860-0090SCEPC-60 | 11.0 | 9.0 | 11.0(9.0) | 9.0 |
| FR-E860-0061SCEPC-60 | FR-E860-0061SCEPC-60 | 8.2 | 6.1 | 8.2 (7.0) | 6.1 |
| FR-E860-0040SCEPC-60 | FR-E860-0040SCEPC-60 | 5.6 | 4.0 | 5.6 (4.8) | 4.0 |
| FR-E860-0027SCEPC-60 | FR-E860-0027SCEPC-60 | 3.6 | 2.7 | 3.6 (3.0) | 2.7 |
| FR-E860-0017SCEPC-60 | FR-E860-0017SCEPC-60 | 2.5 | 1.7 | 2.5 (2.1) | 1.7 |
| FR-E860-0120SCEPB-60 | FR-E860-0120SCEPB-60 | 15.9 | 12.0 | 16.0 (13.6) | 12.0 |
| FR-E860-0090SCEPB-60 | FR-E860-0090SCEPB-60 | 11.0 | 9.0 | 11.0(9.0) | 9.0 |
Common to all listed parts
| Series | FREQROL inverter |
| Category | FR-E800 |
| Output: Regenerative braking: Brake transistor | Built-in |
| Power supply: Permissible frequency fluctuation | ±5 % |
| Control: Control method: Common | Soft-PWM control/High carrier frequency PWM control |
| Control: Control method: PM motor | PM sensorless vector control |
| Control: Frequency setting and resolution: Digital input | 0.01 Hz |
| Control: Frequency accuracy: Analog input | Within ±0.2 % of the maximum output frequency (25 °C ±10 °C) |
