Kinetix & Legacy Servo Drives, 2090 Motion Cables Parts
Compare Kinetix & Legacy Servo Drives, 2090 Motion Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cable style | Drive-end Connector Type | AWG size | Cable length | Nominal cross section conductor (AWG) |
|---|---|---|---|---|---|
| 2090-CSWM1DF-18AA33 | Standard, Non-flex | Flying Lead at 5500 Drive End | 18 AWG | 33 m | 1.62 |
| 2090-CSWM1DF-18AA32 | Standard, Non-flex | Flying Lead at 5500 Drive End | 18 AWG | 32 m | 1.62 |
| 2090-CSWM1DF-18AA29 | Standard, Non-flex | — | 18 AWG | 29 m | 1.62 |

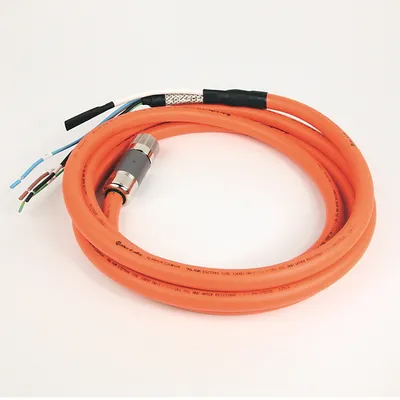

| 2090-CSWM1DF-18AA26 | Standard, non-flexible | Flying Lead at 5500 Drive End | 18 AWG | 26 m | 1.62 |
| 2090-CSBM1DF-14AA24 | Standard, Non-flex | Flying Lead at 5500 Drive End | 14 AWG | 24 m | 4.1 |
| 2090-CSBM1DF-14AA45 | Standard, Non-flex | — | 14 AWG | 45 m | 4.1 |

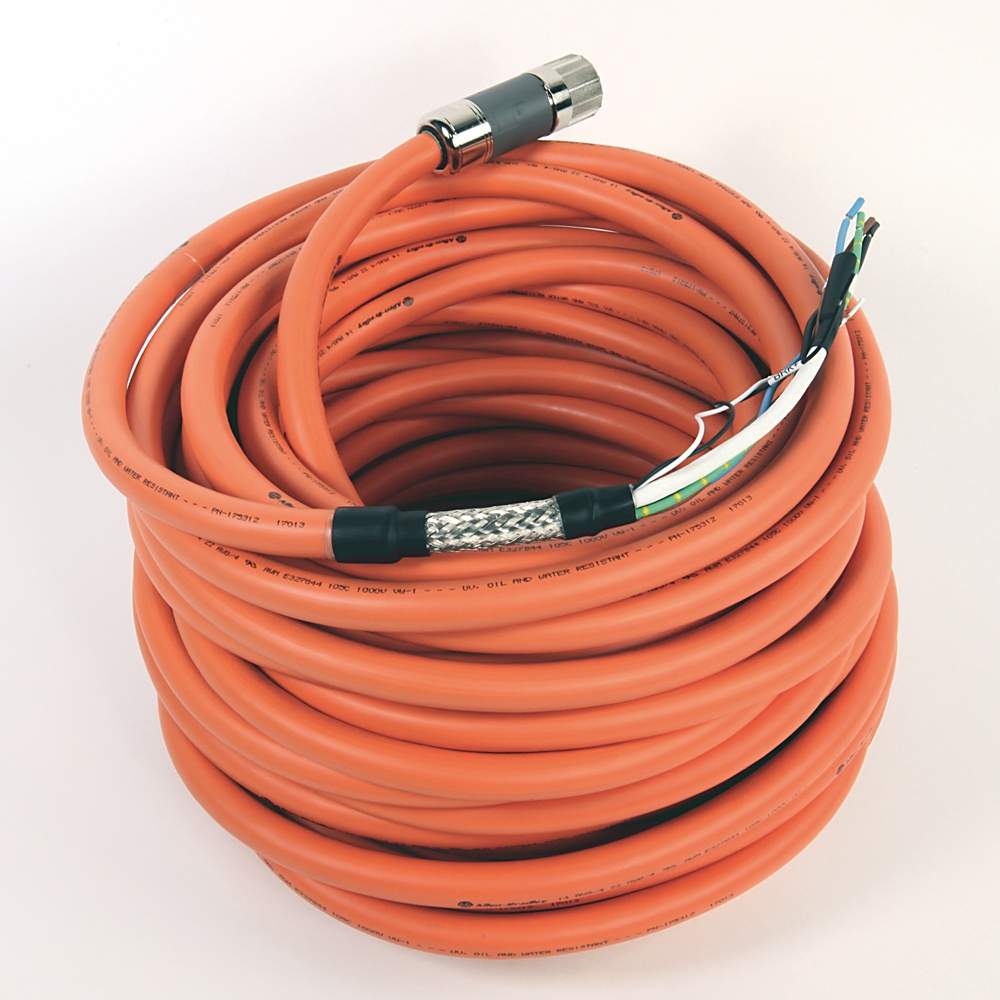

| 2090-CSBM1DF-14AA27 | Standard, non-flexible | Flying Lead at 5500 Drive End | 14 AWG | 27 m | 4.1 |
| 2090-CSBM1DF-10AF08 | Continuous-flex | — | 10 AWG | 8 m | 10.38 |
| 2090-CSBM1DE-14AF42 | Continuous-flex | Flying Lead at 5700 Drive End | 14 AWG | 42 m | 4.1 |
| 2090-CSBM1DF-18AF24 | Continuous-flexible | — | 18 AWG | 24 m | 1.62 |
| 2090-CSBM1DF-18AF46 | Continuous-flexible | — | 18 AWG | 46 m | 1.62 |
| 2090-CSBM1DF-18AF26 | Continuous-flex | Drive-end, flying-lead | 18 AWG | 26 m | 1.62 |
| 2090-CSBM1DG-10AF45 | Continuous-flex | Drive-end, long flying-leads | 10 AWG | 45 m | 10.38 |
| 2090-CSWM1DE-18AA23 | Standard, Non-flex | Flying Lead at 5700 Drive End | 18 AWG | 23 m | 1.62 |
| 2090-CSWM1DE-18AA17 | Standard, Non-flex | Drive-end, connector kit | 18 AWG | 17 m | 1.62 |

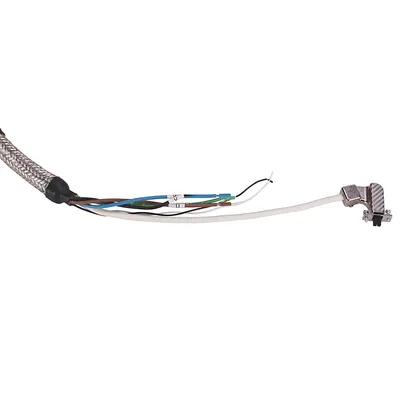

| 2090-CSWM1DE-18AA13 | Standard, non-flexible | — | 18 AWG | 13 m | 1.62 |
| 2090-CSBM1DG-14AF02 | Continuous-flex | Drive-End, Flying Lead, hybrid | 14 AWG | 2 m | 4.1 |
| 2090-CSBM1DF-14AF44 | Continuous-flex | Flying Lead at 5500 Drive End | 14 AWG | 44 m | 4.1 |
| 2090-CSBM1DG-14AF01 | Continuous-flex | Drive-end, long flying-leads | 14 AWG | 1 m | 4.1 |
| 2090-CSBM1DG-14AA36 | Standard, Non-flex | Drive-End, Flying Lead, hybrid | 14 AWG | 36 m | 4.1 |
| 2090-CSBM1E1-08AF03 | Continuous-flex | Extension Receptor | 8 AWG | 3 m | 16.5 |
| 2090-CSWM1DG-18AA06 | Standard, Non-flex | Drive-end, long flying-leads | 18 AWG | 6 m | 1.62 |

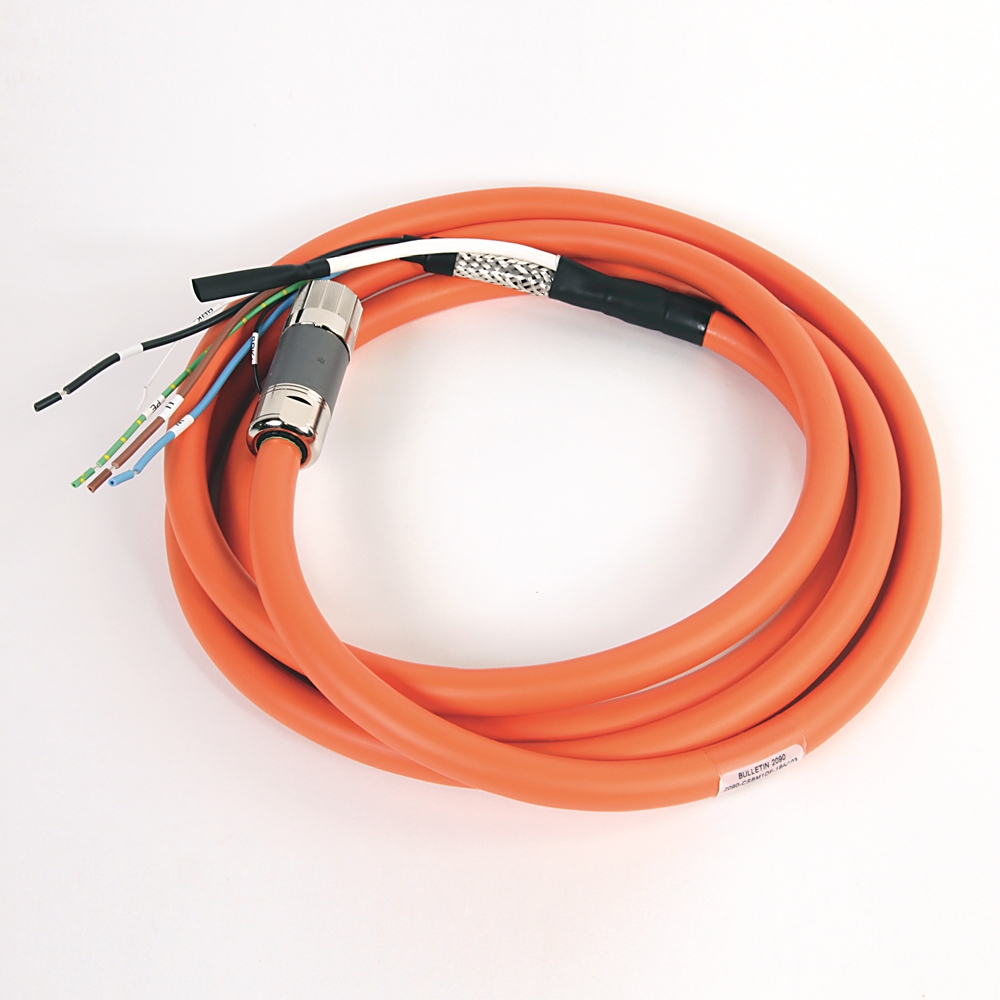

| 2090-CSBM1DF-18AF02 | Continuous-flexible | — | 18 AWG | 2 m | 1.62 |
| 2090-CSBM1DF-18AA39 | Standard, Non-flex | Flying Lead at 5500 Drive End | 18 AWG | 39 m | 1.62 |
Common to all listed parts
| Lifecycle | Active |
| Repair options available | No |
| Accessory component | Cable |
| Color cable code | RAL2003 |
| Colour outer sheath | Orange |
| Conductor material | Copper |
| Conductor surface | Tinned |
| Core color | White/blue |
