Kinetix & Legacy Servo Drives, 2090 Motion Cables Parts
Compare Kinetix & Legacy Servo Drives, 2090 Motion Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cable style | AWG size | Cable length | Nominal cross section conductor (AWG) | Nominal cross section conductor |
|---|---|---|---|---|---|
| 2090-CSBM1DG-14AF11 | Continuous-flex | 14 AWG | 11 m | 4.1 | 2.08 |
| 2090-CSWM1DG-14AA28 | Standard, Non-flex | 14 AWG | 28 m | 4.1 | 2.08 |
| 2090-CSWM1DE-14AA02 | Standard, Non-flex | 14 AWG | 2 m | 4.1 | 2.08 |
| 2090-CSWM1DE-14AA14 | Standard, Non-flex | 14 AWG | 14 m | 4.1 | 2.08 |

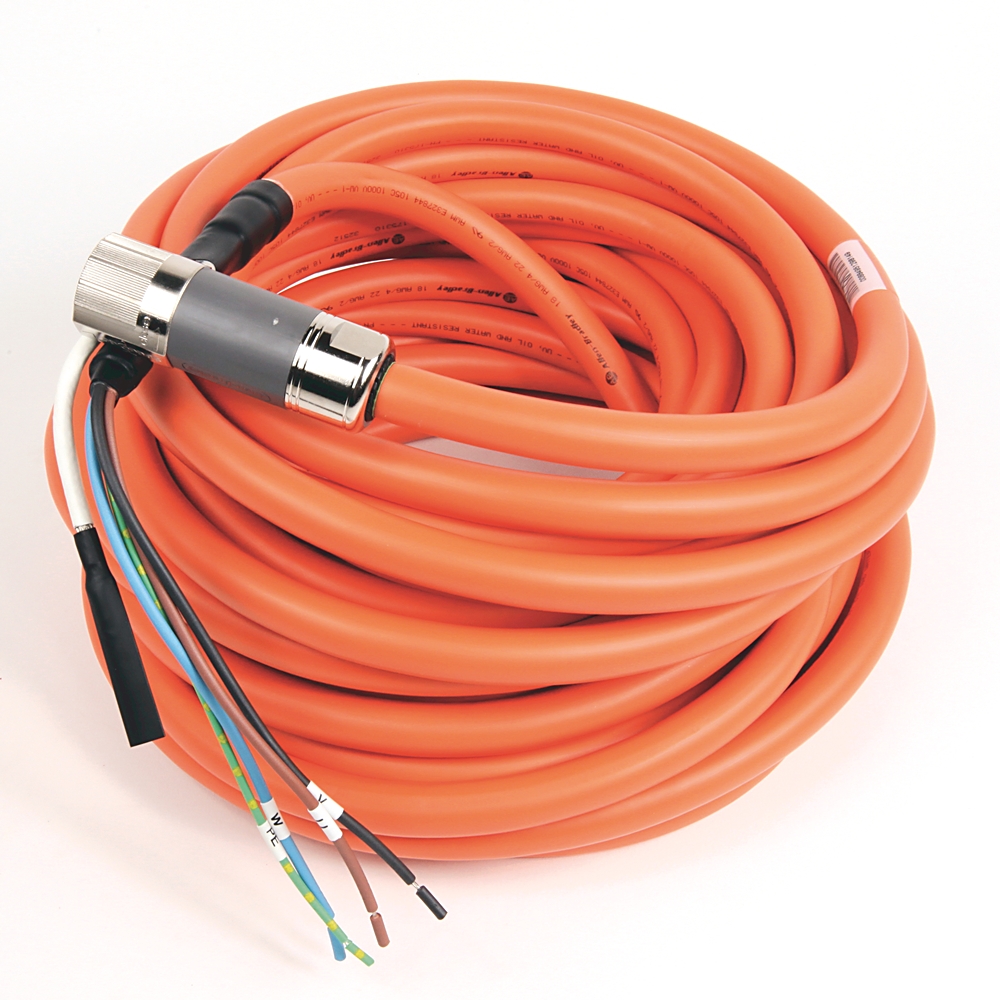

| 2090-CSWM1DF-18AA11 | Standard, Non-flex | 18 AWG | 11 m | 1.62 | 0.82 |

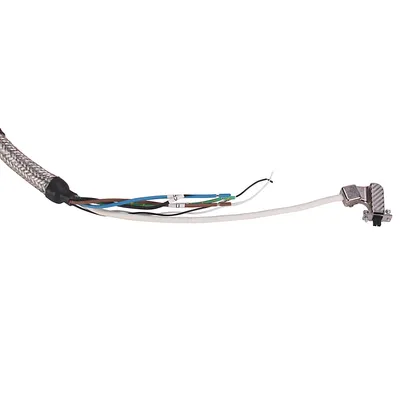

| 2090-CSWM1DE-18AA11 | Standard, Non-flex | 18 AWG | 11 m | 1.62 | 0.82 |
| 2090-CSWM1DE-18AA22 | Standard, Non-flex | 18 AWG | 22 m | 1.62 | 0.82 |
| 2090-CSWM1DE-18AA08 | Standard, Non-flex | 18 AWG | 8 m | 1.62 | 0.82 |
| 2090-CSBM1DE-18AA18 | Standard, Non-flex | 18 AWG | 18 m | 1.62 | 0.82 |

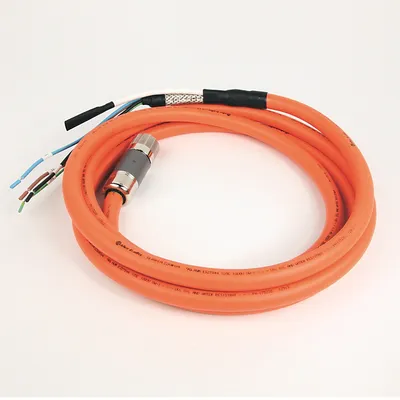

| 2090-CSWM1DF-18AA40 | Standard, Non-flex | 18 AWG | 40 m | 1.62 | 0.82 |
| 2090-CSBM1DE-14AF35 | Continuous-flex | 14 AWG | 35 m | 4.1 | 2.08 |

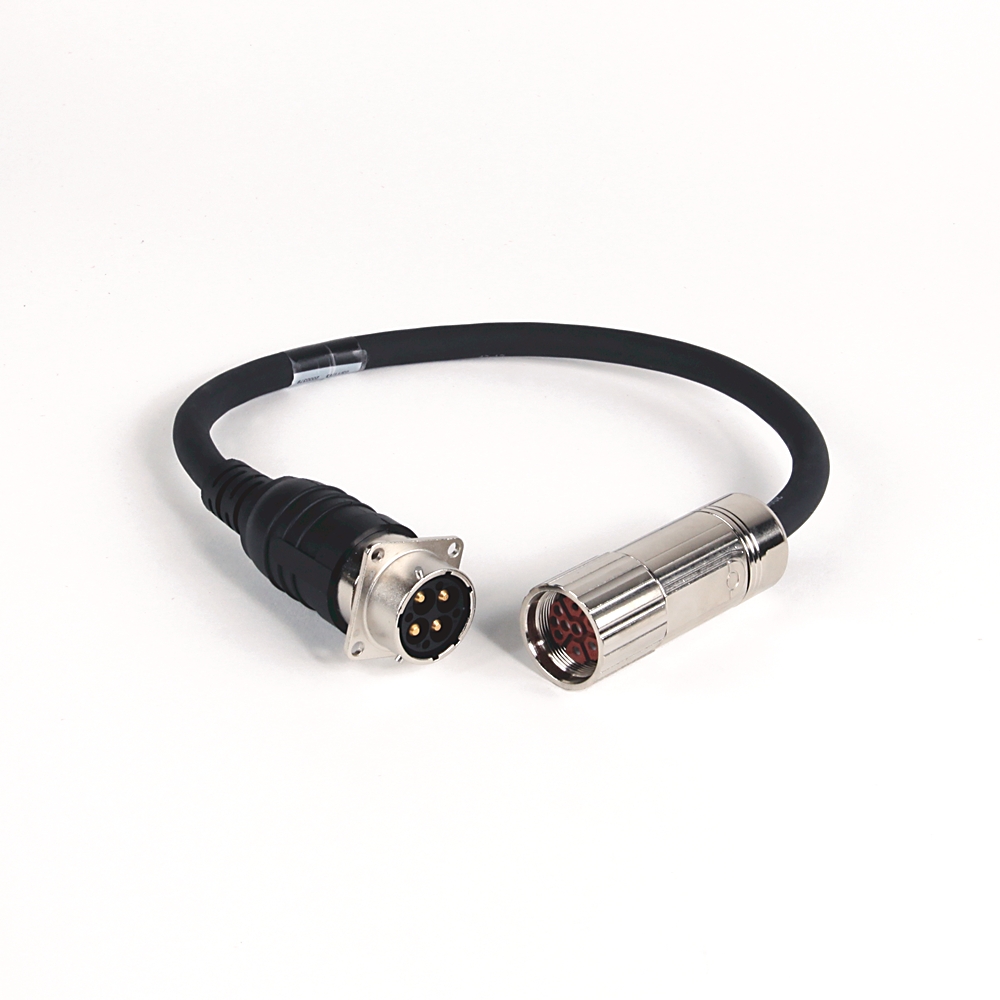

| 2090-CPWM4E2-14TR | — | — | — | — | — |

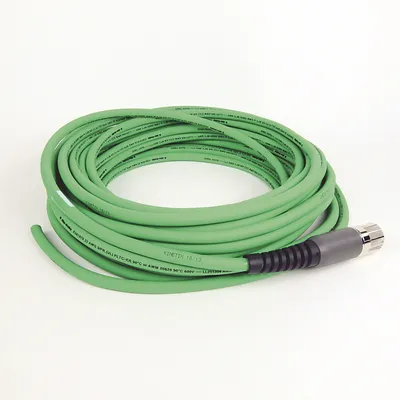

| 2090-CFBM7DF-CEAA15 | — | — | — | — | — |

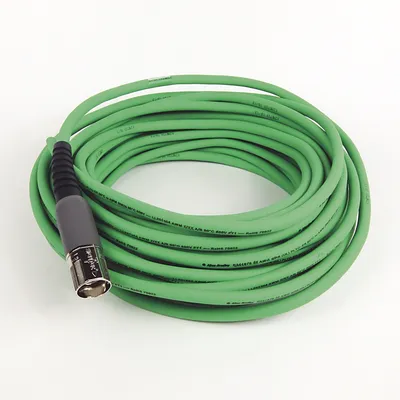

| 2090-CFBM7DF-CEAA20 | — | — | — | — | — |

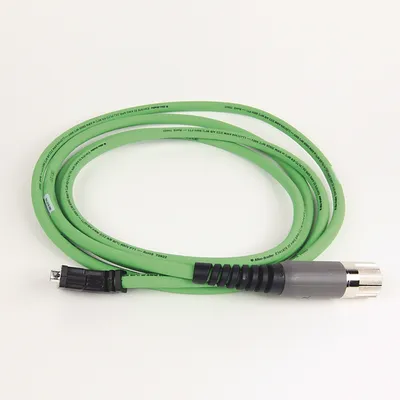

| 2090-CFBM7DD-CEAA03 | — | — | — | — | — |
| 2090-CSBM1DE-14AA19 | Standard, Non-flex | 14 AWG | 19 m | 4.1 | 2.08 |
| 2090-CSBM1E1-08AF15 | Continuous-flex | 8 AWG | 15 m | 16.5 | 8.36 |
| 2090-CSWM1DG-14AA26 | Standard, non-flexible | 14 AWG | 26 m | 4.1 | 2.08 |
| 2090-CSBM1DF-18AF21 | Continuous-flex | 18 AWG | 21 m | 1.62 | 0.82 |

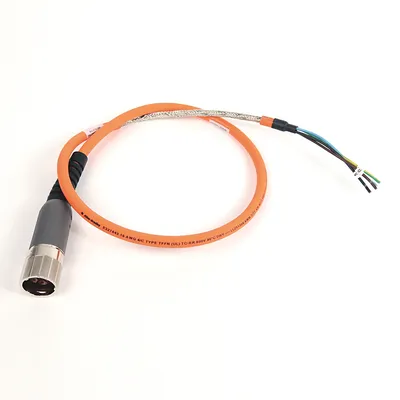

| 2090-CPWM7DF-16AA01 | — | — | — | — | — |
| 2090-CSBM1E1-14AF04 | Continuous-flex | 14 AWG | 4 m | 4.1 | 2.08 |
| 2090-CSBM1DF-14AA04 | Standard, Non-flex | 14 AWG | 4 m | 4.1 | 2.08 |

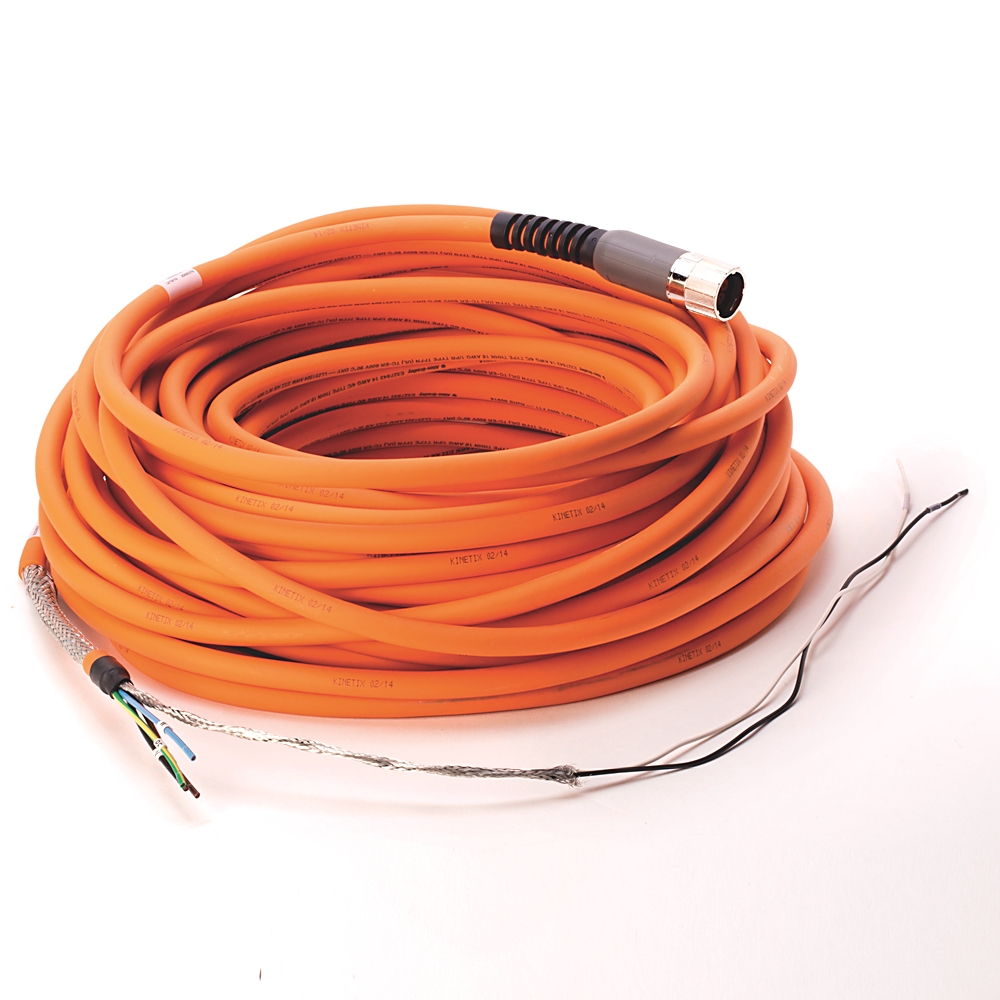

| 2090-CPBM7DF-14AA30 | — | — | — | — | — |

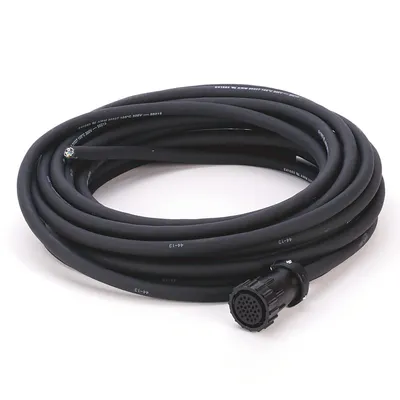

| 2090-CFBM6DF-CBAA09 | — | — | — | — | — |
Common to all listed parts
| Repair options available | No |
