Kinetix & Legacy Servo Drives, 2090 Motion Cables Parts
Compare Kinetix & Legacy Servo Drives, 2090 Motion Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | AWG size | Cable length | Cable style | Nominal cross section conductor (AWG) | Nominal cross section conductor |
|---|---|---|---|---|---|

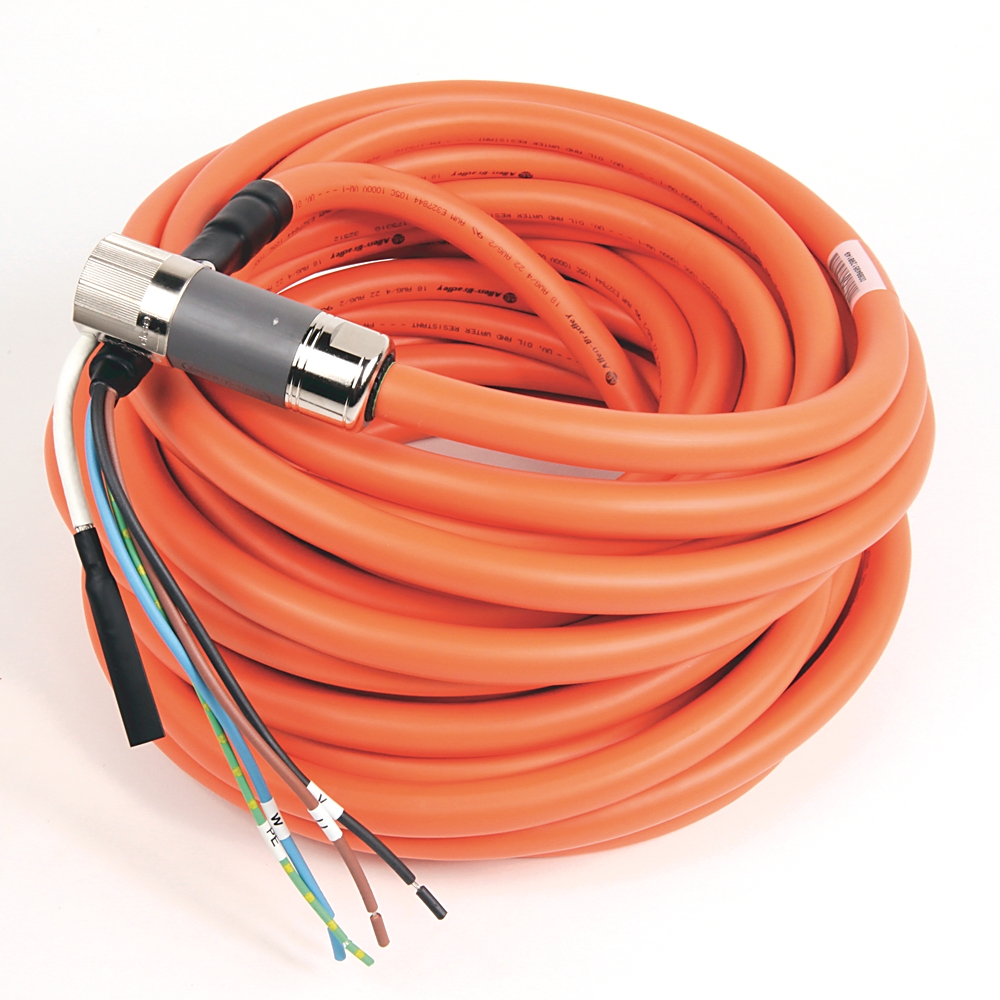

| 2090-CSWM1DF-18AA14 | 18 AWG | 14 m | Standard, non-flexible | 1.62 | 0.82 |
| 2090-CSBM1DF-14AF16 | 14 AWG | 16 m | Continuous-flex | 4.1 | 2.08 |
| 2090-CSBM1DG-18AA50 | 18 AWG | 50 m | Standard, Non-flex | 1.62 | 0.82 |
| 2090-CSBM1DF-14AF17 | 14 AWG | 17 m | Continuous-flex | 4.1 | 2.08 |
| 2090-CSBM1DG-18AA05 | 18 AWG | 5 m | Standard, Non-flex | 1.62 | 0.82 |
| 2090-CSBM1DF-14AF19 | 14 AWG | 19 m | Continuous-flexible | 4.1 | 2.08 |

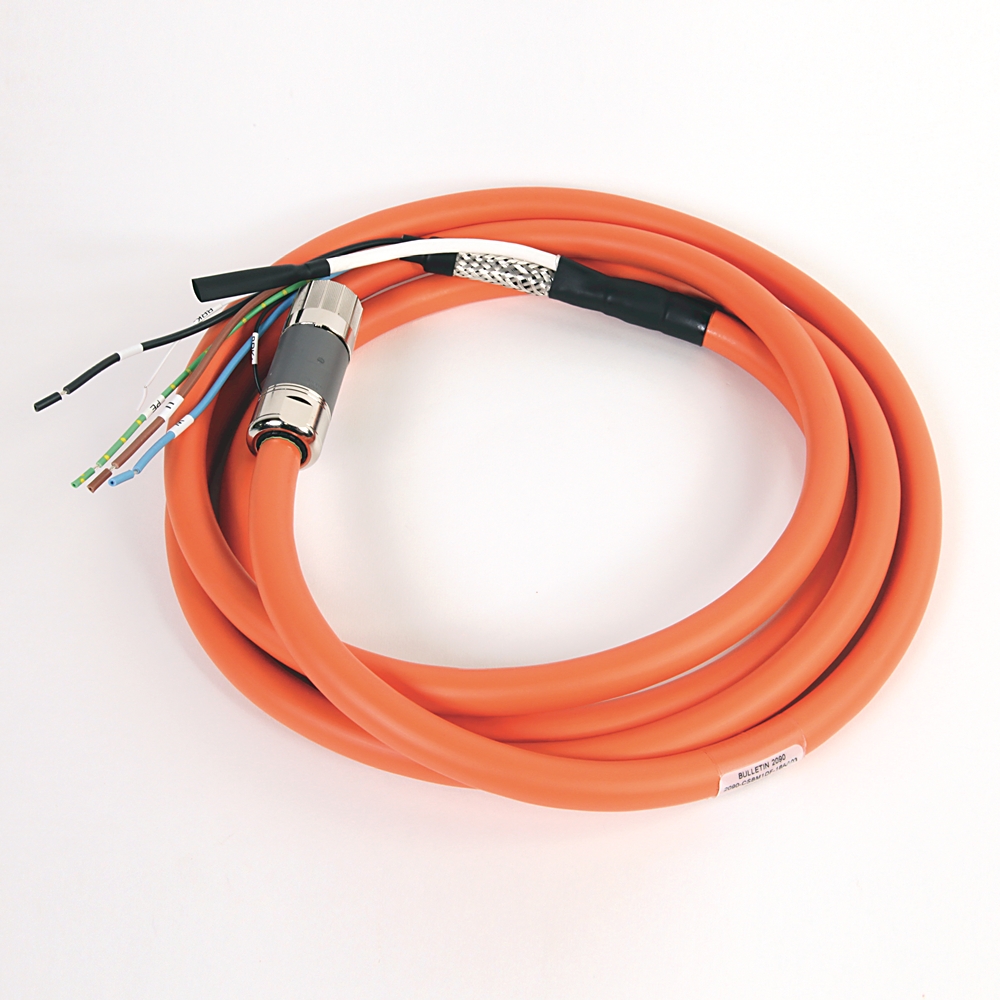

| 2090-CSBM1DF-18AF22 | 18 AWG | 22 m | Continuous-flex | 1.62 | 0.82 |
| 2090-CSBM1DF-18AF19 | 18 AWG | 19 m | Continuous-flex | 1.62 | 0.82 |
| 2090-CSBM1DF-18AF16 | 18 AWG | 16 m | Continuous-flexible | 1.62 | 0.82 |
| 2090-CSBM1DF-14AF34 | 14 AWG | 34 m | Continuous-flexible | 4.1 | 2.08 |
| 2090-CSBM1DF-18AF01 | 18 AWG | 1 m | Continuous-flex | 1.62 | 0.82 |
| 2090-CSBM1DF-18AF34 | 18 AWG | 34 m | Continuous-flex | 1.62 | 0.82 |
| 2090-CSBM1DF-14AF32 | 14 AWG | 32 m | Continuous-flexible | 4.1 | 2.08 |
| 2090-CSBM1DF-10AF36 | 10 AWG | 36 m | Continuous-flex | 10.38 | 5.26 |
| 2090-CSBM1DF-18AA45 | 18 AWG | 45 m | Standard, Non-flex | 1.62 | 0.82 |
| 2090-CSBM1DF-10AF04 | 10 AWG | 4 m | Continuous-flex | 10.38 | 5.26 |

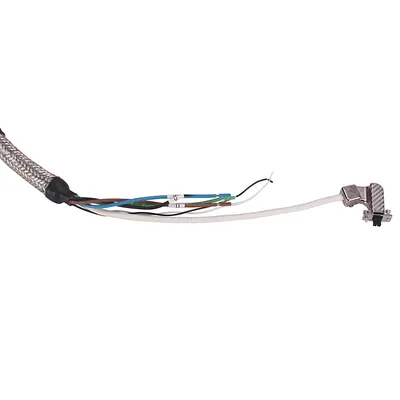

| 2090-CSWM1DG-14AA22 | 14 AWG | 22 m | Standard, Non-flex | 4.1 | 2.08 |
| 2090-CSWM1DG-14AA16 | 14 AWG | 16 m | Standard, non-flexible | 4.1 | 2.08 |
| 2090-CSBM1DF-10AF22 | 10 AWG | 22 m | Continuous-flexible | 10.38 | 5.26 |
| 2090-CSBM1DE-14AA26 | 14 AWG | 26 m | Standard, non-flexible | 4.1 | 2.08 |
| 2090-CSBM1DE-06AF50 | 6 AWG | 50 m | Continuous-flexible | 26.25 | 13.3 |
| 2090-CSBM1DE-10AF11 | 10 AWG | 11 m | Continuous-flexible | 10.38 | 5.26 |

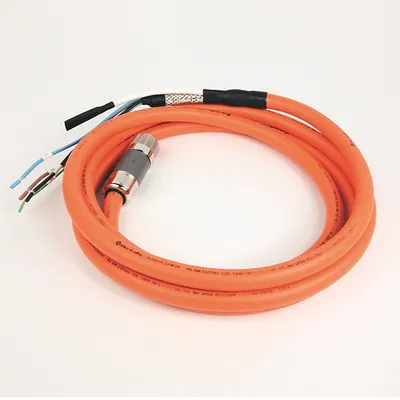

| 2090-CSWM1DF-18AA22 | 18 AWG | 22 m | Standard, Non-flex | 1.62 | 0.82 |
Common to all listed parts
| Lifecycle | Active |
| Repair options available | No |
| Accessory component | Cable |
| Color cable code | RAL2003 |
| Colour outer sheath | Orange |
| Conductor material | Copper |
| Conductor surface | Tinned |
| Core color | White/blue |
