LF RFID readers (125 kHz) Parts

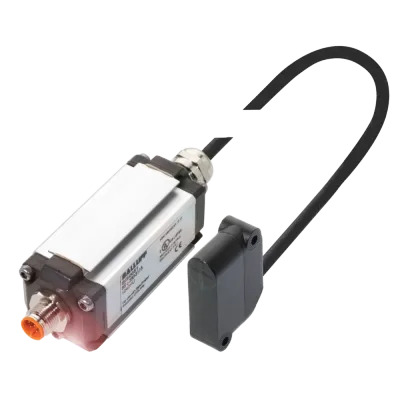

Available on requestBIS0051 BIS L-350-S115 – LF RFID readers (125 kHz)MPN: BIS0051 · Balluff
Price on request
Request a quote

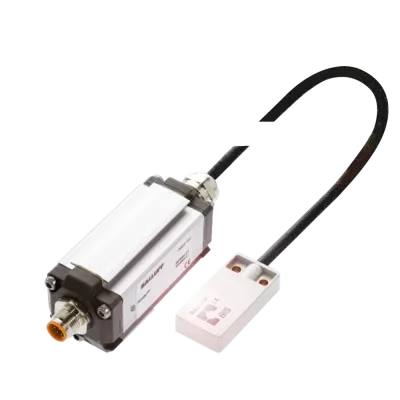

Available on requestBIS004Z BIS L-304-S115 – LF RFID readers (125 kHz)MPN: BIS004Z · Balluff
Price on request
Request a quote
Available on requestBIS004U BIS L-302-S115 – LF RFID readers (125 kHz)MPN: BIS004U · Balluff
Price on request
Request a quote

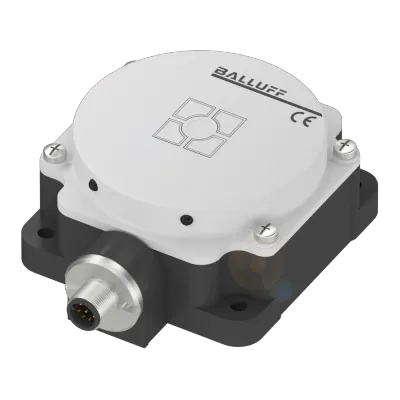

Available on requestBIS004T BIS L-301-S115 – LF RFID readers (125 kHz)MPN: BIS004T · Balluff
Price on request
Request a quote

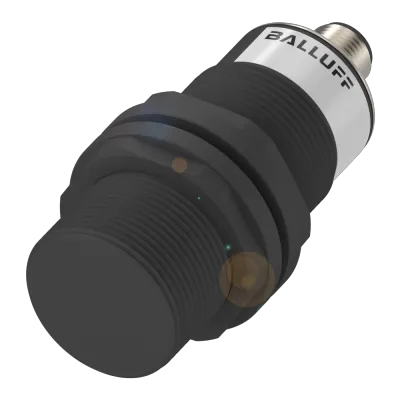

Available on requestBIS004R BIS L-300-S115 – LF RFID readers (125 kHz)MPN: BIS004R · Balluff
Price on request
Request a quote
Available on requestBIS004Y BIS L-303-S115 – LF RFID readers (125 kHz)MPN: BIS004Y · Balluff
Price on request
Request a quote
Available on requestBIS00K5 BIS L-306-PU1-05-S49/A – LF RFID readers (125 kHz)MPN: BIS00K5 · Balluff
Price on request
Request a quoteAvailable on requestBIS0050 BIS L-305-PVC-20-S115/E – LF RFID readers (125 kHz)MPN: BIS0050 · Balluff
Price on request
Request a quoteCompare LF RFID readers (125 kHz)
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type designation | Dimension | Connection | Housing material | Approval/Conformity |
|---|---|---|---|---|---|
| BIS0051 | BIS L-350-S115 | 12 x 26 x 40 mm | Male, 8-pin, 0.50 m, PU | ABS, GF16, Interface aluminum | CE UKCA cULus WEEE |
| BIS004Z | BIS L-304-S115 | 25 x 10 x 50 mm | Male, 8-pin, 0.50 m, PU | ABS, GF16, Interface aluminum | CE UKCA cULus WEEE |
| BIS004U | BIS L-302-S115 | Ø 18 x 75 mm | Male, 8-pin, 0.50 m, PVC | Brass, Interface aluminum, nickel-plated | CE UKCA cULus WEEE |
| BIS004T | BIS L-301-S115 | 80 x 80 x 40 mm | Male, 8-pin | PBT | CE UKCA cULus WEEE |
| BIS004R | BIS L-300-S115 | Ø 30 x 82 mm | Male, 8-pin | PVDF, Nuts PA 6.6 | CE UKCA cULus WEEE |
| BIS004Y | BIS L-303-S115 | 80 x 50 x 170 mm | Male, 8-pin | PBT, Aluminum | CE UKCA FCC IC (Radio) cULus WEEE |
| BIS00K5 | BIS L-306-PU1-05-S49/A | Ø 12 x 59.7 mm | M8x1-Coupling, 3-pin, 5.00 m, PU | — | CE UL-FILE E227256, Vol.X1, BIS WEEE |
| BIS0050 | BIS L-305-PVC-20-S115/E | 85 x 28 x 200 mm | Male, 8-pin, 20.00 m, PVC | POM-C | CE UKCA WEEE |
Common to all listed parts
| Product group | LF RFID readers (125 kHz) |
| Installation | metal-free (clear zone) |
| Communication | Read/Write |
| Storage temperature | -20...85 °C |
| Ambient temperature | 0...70 °C |
| IP rating | IP67 |
| ECLASS 14.0 | 27-28-04-01 |
| ETIM 9.0 | EC002998 |
