Home / Accessories / Universal brackets

Universal brackets Parts

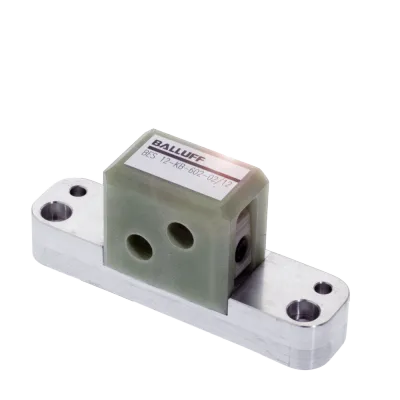

Available on requestBAM00CK BES 12,0-KB-602-02/12 – Universal brackets

MPN: BAM00CK · Balluff

Price on request

Request a quote

Available on requestBAM00CN BES 12,0-KB-602-06/16 – Universal brackets

MPN: BAM00CN · Balluff

Price on request

Request a quote

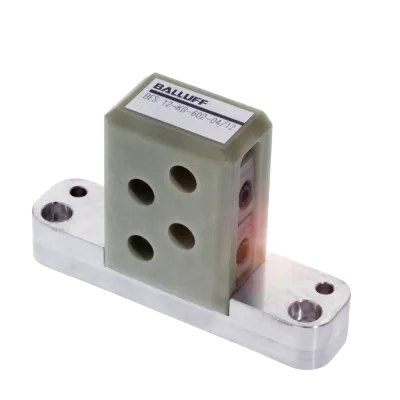

Available on requestBAM00CL BES 12,0-KB-602-04/12 – Universal brackets

MPN: BAM00CL · Balluff

Price on request

Request a quote

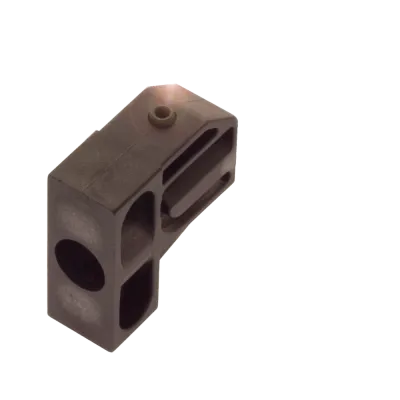

Available on requestBAM00C7 BES 12,0-KB-2 – Universal brackets

MPN: BAM00C7 · Balluff

Price on request

Request a quote

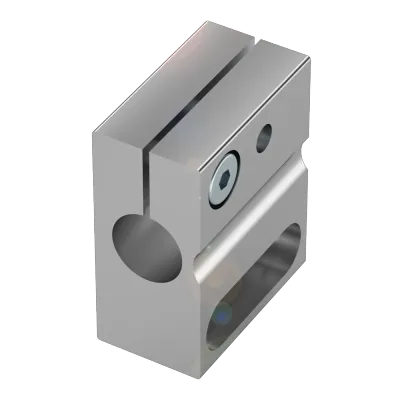

Available on requestBAM00CF BES 12,0-KB-4-F – Universal brackets

MPN: BAM00CF · Balluff

Price on request

Request a quote

Available on requestBAM00EN BES 16-HW-1 – Universal brackets

MPN: BAM00EN · Balluff

Price on request

Request a quote

Available on requestBAM00HA BES 24-HW-1 – Universal brackets

MPN: BAM00HA · Balluff

Price on request

Request a quote

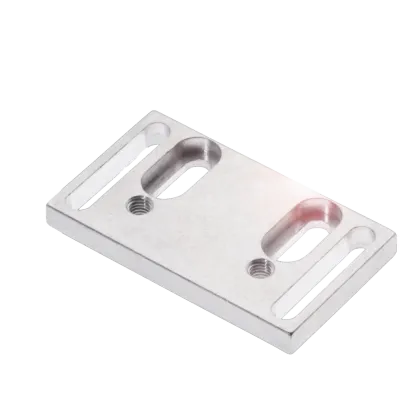

Available on requestBAM00JW BES Q40-HW-1 – Universal brackets

MPN: BAM00JW · Balluff

Price on request

Request a quote

Available on requestBAM00C0 BES 12-HW-1 – Universal brackets

MPN: BAM00C0 · Balluff

Price on request

Request a quote

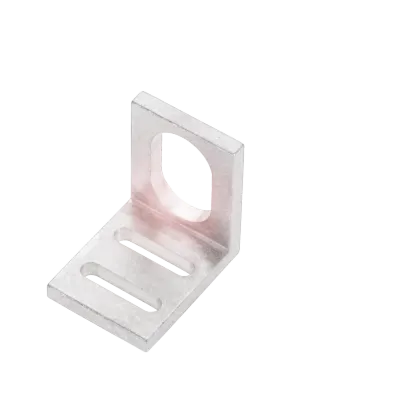

Available on requestBAM00EY BES 18-HW-1 – Universal brackets

MPN: BAM00EY · Balluff

Price on request

Request a quote

Available on requestBAM00JT BES HS-01-P1-C16/Q40 – Universal brackets

MPN: BAM00JT · Balluff

Price on request

Request a quote

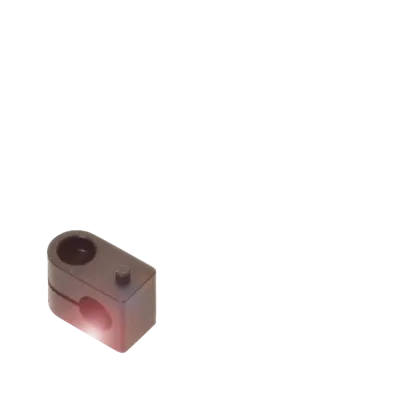

Available on requestBAM009C BES 06,5-KB-1 – Universal brackets

MPN: BAM009C · Balluff

Price on request

Request a quote

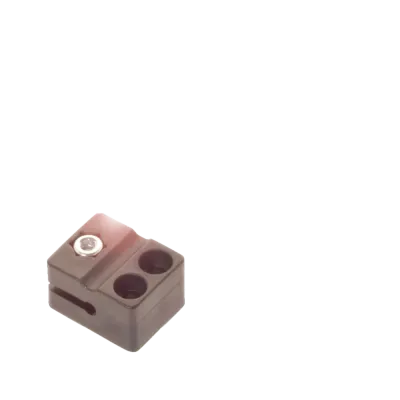

Available on requestBAM0092 BES 03,0-KB-3 – Universal brackets

MPN: BAM0092 · Balluff

Price on request

Request a quote

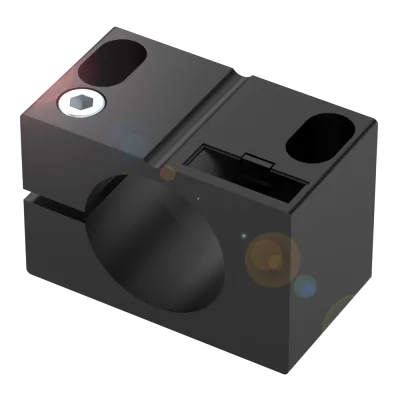

Available on requestBAM00HU BES 30,0-KB-3-F – Universal brackets

MPN: BAM00HU · Balluff

Price on request

Request a quote

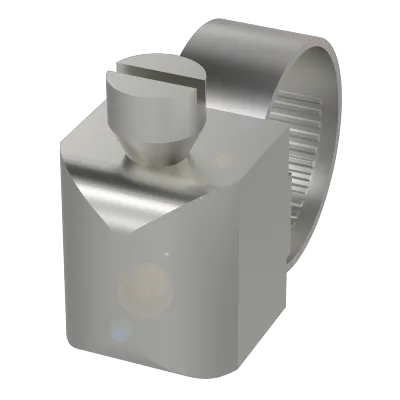

Available on requestBAM00N2 SCHLAUCHSCHELLE BMF GR. 0 – Universal brackets

MPN: BAM00N2 · Balluff

Price on request

Request a quote

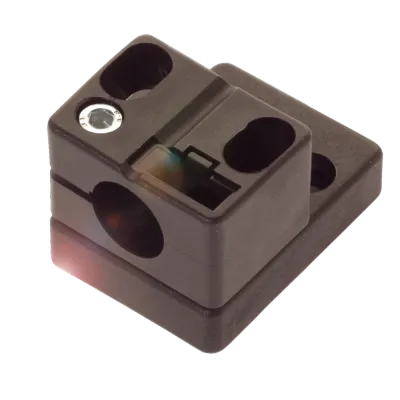

Available on requestBAM00F9 BES 18,0-KB-3-F-SA1 – Universal brackets

MPN: BAM00F9 · Balluff

Price on request

Request a quote

Available on requestBAM00FA BES 18,0-KB-3-F-SA2 – Universal brackets

MPN: BAM00FA · Balluff

Price on request

Request a quote

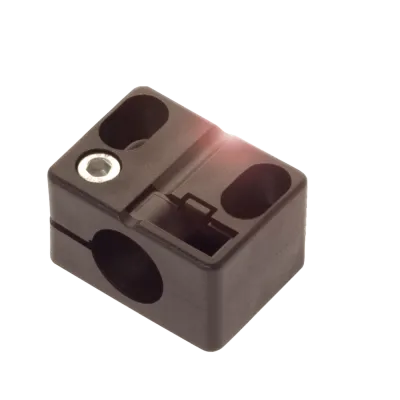

Available on requestBAM00F8 BES 18,0-KB-3-F – Universal brackets

MPN: BAM00F8 · Balluff

Price on request

Request a quote

Available on requestBAM00F7 BES 18,0-KB-3 – Universal brackets

MPN: BAM00F7 · Balluff

Price on request

Request a quote

Available on requestBAM0096 BES 04.0-KB-8 – Universal brackets

MPN: BAM0096 · Balluff

Price on request

Request a quote

Available on requestBAM009H BES 06.5-KB-8 – Universal brackets

MPN: BAM009H · Balluff

Price on request

Request a quote

Available on requestBAM00HZ BES 30,0-KB-6 – Universal brackets

MPN: BAM00HZ · Balluff

Price on request

Request a quote

Available on requestBAM00FF BES 18,0-KB-6 – Universal brackets

MPN: BAM00FF · Balluff

Price on request

Request a quote

Available on requestBAM00A9 BES 08,0-KB-6 – Universal brackets

MPN: BAM00A9 · Balluff

Price on request

Request a quote

Compare Universal brackets

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Type designation	Version	Use	Material	Dimension
BAM00CK	BES 12,0-KB-602-02/12	Mounting block	For M12 sensors	Aluminum GFK	120 x 57 x 30 mm
BAM00CN	BES 12,0-KB-602-06/16	Mounting block	For M12 sensors	Aluminum GFK	120 x 125 x 30 mm
BAM00CL	BES 12,0-KB-602-04/12	Mounting block	For M12 sensors	Aluminum GFK	120 x 81 x 30 mm
BAM00C7	BES 12,0-KB-2	Mounting block	for sensors Ø12 mm For M12 sensors	PA 6	40 x 16 x 40 mm
BAM00CF	BES 12,0-KB-4-F	Mounting clamp with positive stop	for sensors Ø12 mm For M12 sensors	Aluminum Anodized	35 x 16 x 28 mm
BAM00EN	BES 16-HW-1	—	for sensors Ø16 mm for positive stop M16	Aluminum	30 x 40 x 40 mm
BAM00HA	BES 24-HW-1	—	for sensors Ø24 mm for positive stop M24	Aluminum	35 x 50 x 40 mm
BAM00JW	BES Q40-HW-1	Holder	for inductive sensors BES Q40	Aluminum Anodized	61.5 x 5 x 35 mm
BAM00C0	BES 12-HW-1	Mounting bracket	For M12 sensors for positive stop M12	Aluminum	25 x 30 x 30 mm
BAM00EY	BES 18-HW-1	Mounting bracket	For M18 sensors for positive stop M18	Aluminum	30 x 40 x 40 mm
BAM00JT	BES HS-01-P1-C16/Q40	—	for inductive sensors BES Q40	Slide block: Brass Plate: Aluminum	—
BAM009C	BES 06,5-KB-1	Mounting block	for sensors Ø6.5 mm	PA 6	17 x 12 x 9 mm
BAM0092	BES 03,0-KB-3	Mounting block	for sensors and fiber optics Ø3	PA 6	16 x 12 x 20 mm
BAM00HU	BES 30,0-KB-3-F	Mounting clamp with positive stop	for sensors Ø30 mm For M30 sensors	PA 6	54 x 36 x 30 mm
BAM00N2	SCHLAUCHSCHELLE BMF GR. 0	Ø 7-11 mm	for magnetic sensors BMF	Stainless steel (1.4301)	—
BAM00F9	BES 18,0-KB-3-F-SA1	Mounting block	for sensors Ø18 mm For M18 sensors	PA 6	40 x 36.5 x 54 mm
BAM00FA	BES 18,0-KB-3-F-SA2	Mounting block	for sensors Ø18 mm For M18 sensors	PA 6	40 x 30 x 85 mm
BAM00F8	BES 18,0-KB-3-F	Mounting clamp with positive stop	for sensors Ø18 mm For M18 sensors	PA 6	40 x 24 x 30 mm
BAM00F7	BES 18,0-KB-3	Mounting block	for sensors Ø18 mm For M18 sensors	PA 6	40 x 24 x 30 mm
BAM0096	BES 04.0-KB-8	Mounting clamp	for sensors and fiber optics Ø4	Aluminium Anodized	25.4 x 8.2 x 5 mm
BAM009H	BES 06.5-KB-8	Mounting clamp	for sensors Ø6.5 mm	Aluminum Anodized	25.4 x 13.9 x 8 mm
BAM00HZ	BES 30,0-KB-6	Mounting clamp	for sensors Ø30 mm	Aluminum Anodized	35 x 50.8 x 63.5 mm
BAM00FF	BES 18,0-KB-6	Mounting clamp	for sensors Ø18 mm For M18 sensors	Aluminum Anodized	25.4 x 31.8 x 38.1 mm
BAM00A9	BES 08,0-KB-6	Mounting clamp	for sensors Ø8 mm For M08 sensors	Aluminium Anodized	19.2 x 16 x 25.4 mm

Common to all listed parts

Lifecycle	Active
Product group	Universal brackets
ECLASS 14.0	27-27-37-01
ETIM 9.0	EC003015
UNSPSC 11	31162300
