Altivar 66 Parts

Showing 73–91 of 91 parts
Schneider Electric ATV66D16N4G – Adjustable speed drive ATV66 16KVA 400/460V
Schneider Electric
ATV66D16N4G

Adjustable speed drive ATV66 16KVA 400/460V

Schneider Electric ATV66D16N4F – Adjustable speed drive ATV66 16KVA 400/460V
Schneider Electric
ATV66D16N4F

Adjustable speed drive ATV66 16KVA 400/460V

Schneider Electric ATV66D16N4 – Adjustable speed drive ATV-66D with heat sink - 15 kW - without EMC filter
Schneider Electric
ATV66D16N4

Adjustable speed drive ATV-66D with heat sink - 15 kW - without EMC filter

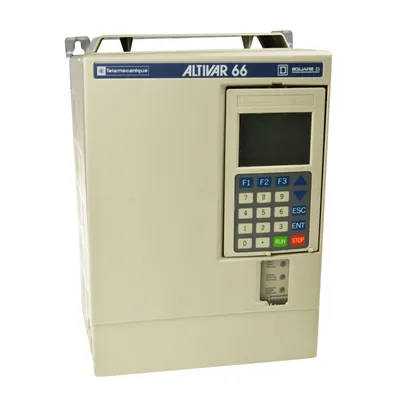

Schneider Electric ATV66D12N4U – Adjustable speed drive ATV66 12KVA 400/460V
Schneider Electric
ATV66D12N4U

Adjustable speed drive ATV66 12KVA 400/460V

Schneider Electric ATV66D12N4S244S – Adjustable speed drive ATV66 12KVA 400/460V
Schneider Electric
ATV66D12N4S244S

Adjustable speed drive ATV66 12KVA 400/460V

Schneider Electric ATV66D12N4S244F – Adjustable speed drive ATV66 12KVA 400/460V
Schneider Electric
ATV66D12N4S244F

Adjustable speed drive ATV66 12KVA 400/460V

Schneider Electric ATV66D12N4S244G – Adjustable speed drive ATV66 12KVA 400/460V
Schneider Electric
ATV66D12N4S244G

Adjustable speed drive ATV66 12KVA 400/460V

Schneider Electric ATV66D12N4S244E – Adjustable speed drive ATV66 12KVA 400/460V
Schneider Electric
ATV66D12N4S244E

Adjustable speed drive ATV66 12KVA 400/460V

Schneider Electric ATV66D12N4S244 – Adjustable speed drive ATV66 12KVA 400/460V
Schneider Electric
ATV66D12N4S244

Adjustable speed drive ATV66 12KVA 400/460V

Schneider Electric ATV66D12N4S – Adjustable speed drive ATV66 12KVA 400/460V
Schneider Electric
ATV66D12N4S

Adjustable speed drive ATV66 12KVA 400/460V

Schneider Electric ATV66D12N4G – Adjustable speed drive ATV66 12KVA 400/460V
Schneider Electric
ATV66D12N4G

Adjustable speed drive ATV66 12KVA 400/460V

Schneider Electric ATV66D12N4F – Adjustable speed drive ATV66 12KVA 400/460V
Schneider Electric
ATV66D12N4F

Adjustable speed drive ATV66 12KVA 400/460V

Schneider Electric ATV66C28N4 – Adjustable speed drive ATV-66C with heat sink - 200 kW - without EMC filter
Schneider Electric
ATV66C28N4

Adjustable speed drive ATV-66C with heat sink - 200 kW - without EMC filter

Schneider Electric ATV66D12N4E – Adjustable speed drive ATV66 12KVA 400/460V
Schneider Electric
ATV66D12N4E

Adjustable speed drive ATV66 12KVA 400/460V

Schneider Electric ATV66D12N4 – Adjustable speed drive ATV-66D with heat sink - 15kW - without EMC filter
Schneider Electric
ATV66D12N4

Adjustable speed drive ATV-66D with heat sink - 15kW - without EMC filter

Schneider Electric ATV66C15N4 – Adjustable speed drive ATV-66C with heat sink - 110 kW - without EMC filter
Schneider Electric
ATV66C15N4

Adjustable speed drive ATV-66C with heat sink - 110 kW - without EMC filter

Schneider Electric ATV66C13N4 – Adjustable speed drive ATV-66C with heat sink - 90 kW - without EMC filter
Schneider Electric
ATV66C13N4

Adjustable speed drive ATV-66C with heat sink - 90 kW - without EMC filter

Schneider Electric ATV66C10N4 – Adjustable speed drive ATV-66C with heat sink - 75 kW - without EMC filter
Schneider Electric
ATV66C10N4

Adjustable speed drive ATV-66C with heat sink - 75 kW - without EMC filter

Compare Altivar 66

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNMotor power kWMotor power hpLine currentApparent powerContinuous output current
ATV66D16N4G15 kW at 380...460 V20 hp35.4 A at 380 V; 28 A at 460 V16 kVA at 400 V24.2 A at 400 V
ATV66D16N4F15 kW at 380...460 V20 hp35.4 A at 380 V; 28 A at 460 V16 kVA at 400 V24.2 A at 400 V
ATV66D16N415 kW at 380...460 V20 hp35.4 A at 380 V; 28 A at 460 V16 kVA at 400 V24.2 A at 400 V
ATV66D12N4U11 kW at 380...460 V15 hp26.5 A at 380 V; 21 A at 460 V12 kVA at 400 V17.6 A at 400 V
ATV66D12N4S244S11 kW at 380...460 V15 hp26.5 A at 380 V; 21 A at 460 V12 kVA at 400 V17.6 A at 400 V
ATV66D12N4S244F11 kW at 380...460 V15 hp26.5 A at 380 V; 21 A at 460 V12 kVA at 400 V17.6 A at 400 V
ATV66D12N4S244G11 kW at 380...460 V15 hp26.5 A at 380 V; 21 A at 460 V12 kVA at 400 V17.6 A at 400 V
ATV66D12N4S244E11 kW at 380...460 V15 hp26.5 A at 380 V; 21 A at 460 V12 kVA at 400 V17.6 A at 400 V
ATV66D12N4S24411 kW at 380...460 V15 hp26.5 A at 380 V; 21 A at 460 V12 kVA at 400 V17.6 A at 400 V
ATV66D12N4S11 kW at 380...460 V15 hp26.5 A at 380 V; 21 A at 460 V12 kVA at 400 V17.6 A at 400 V
ATV66D12N4G11 kW at 380...460 V15 hp26.5 A at 380 V; 21 A at 460 V12 kVA at 400 V17.6 A at 400 V
ATV66D12N4F11 kW at 380...460 V15 hp26.5 A at 380 V; 21 A at 460 V12 kVA at 400 V17.6 A at 400 V
ATV66C28N4200 kW at 380...460 V300 hp378 A at 380 V; 338 A at 460 V280 kVA at 400 V404 A at 380 V; 361 A at 460 V
ATV66D12N4E11 kW at 380...460 V15 hp26.5 A at 380 V; 21 A at 460 V12 kVA at 400 V17.6 A at 400 V
ATV66D12N411 kW at 380...460 V15 hp26.5 A at 380 V; 21 A at 460 V12 kVA at 400 V17.6 A at 400 V
ATV66C15N4110 kW at 380...460 V150 hp194 A at 380 V; 169 A at 460 V150 kVA at 400 V208 A at 380 V; 180 A at 460 V
ATV66C13N490 kW at 380...460 V125 hp161 A at 380 V; 146 A at 460 V130 kVA at 400 V172 A at 380 V; 137 A at 460 V
ATV66C10N475 kW at 380...460 V100 hp133 A at 380 V; 116 A at 460 V100 kVA at 400 V142 A at 380 V; 124 A at 460 V

Common to all listed parts

Range of productAltivar 66
Product or component typeVariable speed drive
Product destinationAsynchronous motors
[Us] rated supply voltage380...460 V - 10...10 %
Supply frequency50...60 Hz - 5...5 %
Network frequency47.5...63 Hz
Network number of phases3 phases
Output frequency0…0.3 kHz
