Wall mounting Parts
B&R
8B0P0440HW00.001-1ACOPOSmulti power supply module passive, 44 A, AS, wall mounting, passive motor short circuit brake
Compare Wall mounting
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Max. chargeable DC bus capacitance depending on mains voltage – 480 VAC | Installed load | Reduction of continuous power depending on mains input voltage – Mains input voltage <3x 400 VAC | Reduction of continuous power depending on installation elevation – Starting at 500 m above sea level | Peak power output (supply) |
|---|---|---|---|---|---|

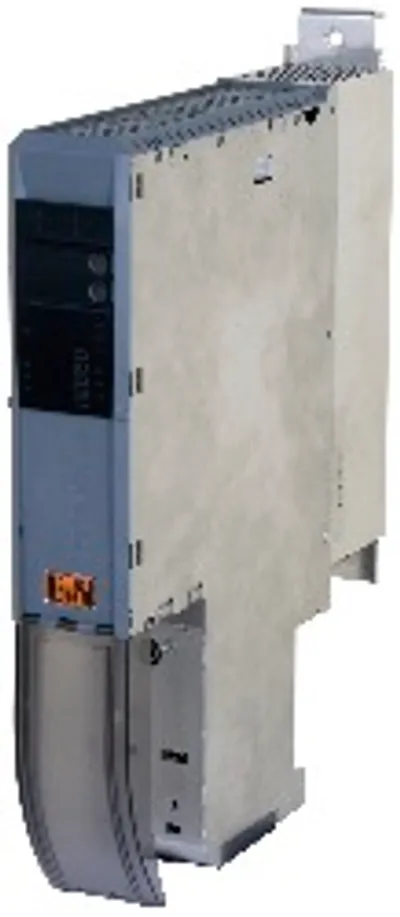

| 8B0P0110HW00.000-1 | 2 mF | Max. 6.7 kVA | 10 W/V * (400 V - Mains input voltage) | 0.4 kW per 1000 m | 12 kW |
| 8B0P0220HW00.000-1 | 10 mF (note: Up to revision H0: 4 mF) | Max. 15.6 kVA | 20 W/V * (400 V - Mains input voltage) | 0.8 kW per 1000 m | 24 kW |

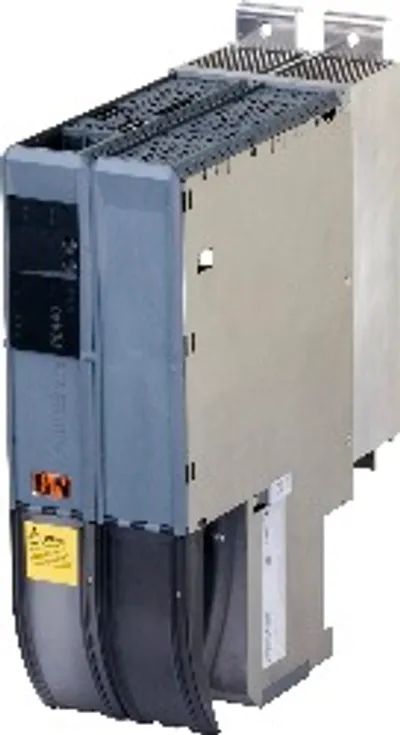

| 8B0P0220HW00.001-1 | 10 mF (note: Up to revision H0: 4 mF) | Max. 15.6 kVA | 20 W/V * (400 V - Mains input voltage) | 0.8 kW per 1000 m | 24 kW |
| 8B0P0440HW00.000-1 | 10 mF (note: Up to revision F0: 4 mF) | Max. 30.4 kVA | 40 W/V * (400 V - Mains input voltage) | 1.6 kW per 1000 m | 48 kW |
| 8B0P0440HW00.001-1 | 10 mF (note: Up to revision F0: 4 mF) | Max. 30.4 kVA | 40 W/V * (400 V - Mains input voltage) | 1.6 kW per 1000 m | 48 kW |
Common to all listed parts
| Support – Dynamic node allocation (DNA) | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Cooling and mounting type | Wall mounting |
| Variant – L1, L2, L3, PE | Connector |
| Variant – PE | M5 threaded bolt |
