Home / Relays & Timers / 700-SH Hockey Puck Style Solid-state Relays

700-SH Hockey Puck Style Solid-state Relays Parts

Allen-Bradley

700-SN25

/ – 25A Heat Sink

Allen-Bradley

700-SH75HZ25

/ – 4...32V DC Hockey Puck Solid State Relay

Allen-Bradley

700-SH75HA24

/ – Hockey Puck Solid State Relay

Allen-Bradley

700-SH50GA24

/ – Hockey Puck Solid State Relay

Allen-Bradley

700-SH10HZ25

/ – 4...32V DC Hockey Puck Solid State Relay

Allen-Bradley

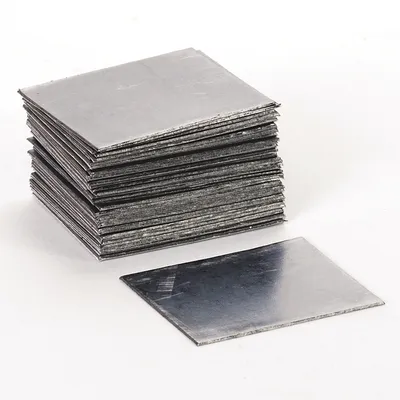

700-SHCPAD

/ – Relay Thermal Conductive Pad

Allen-Bradley

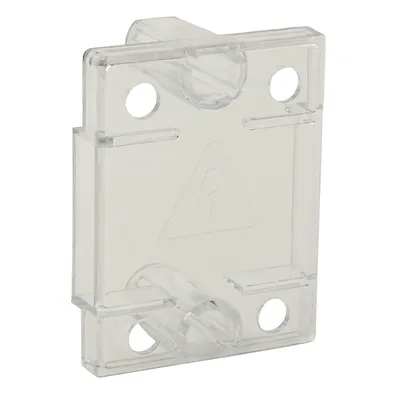

700-SHCOV

Allen-Bradley

700-SH25GZ24

/ – 3...32V DC Hockey Puck Solid State Relay

Allen-Bradley

700-SH10JZ24

/ – 3...32V DC Hockey Puck Solid State Relay

Allen-Bradley

700-SH10JA12

/ – Hockey Puck Solid State Relay

Allen-Bradley

700-SH75VA24

/ – Hockey Puck Solid State Relay

Allen-Bradley

700-SH50WA25

/ – Hockey Puck Solid State Relay

Allen-Bradley

700-SH50VA24

/ – Hockey Puck Solid State Relay

Allen-Bradley

700-SH25WA25

/ – Hockey Puck Solid State Relay

Allen-Bradley

700-SH100VZ25

/ – 4...32V DC Hockey Puck Solid State Relay

Allen-Bradley

700-SH100HA24

/ – Hockey Puck Solid State Relay

Allen-Bradley

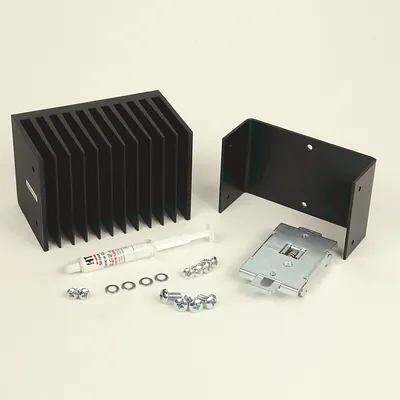

700-SN50

/ – 50A Heat Sink

Allen-Bradley

700-SH10JA22

/ – Hockey Puck Solid State Relay

Allen-Bradley

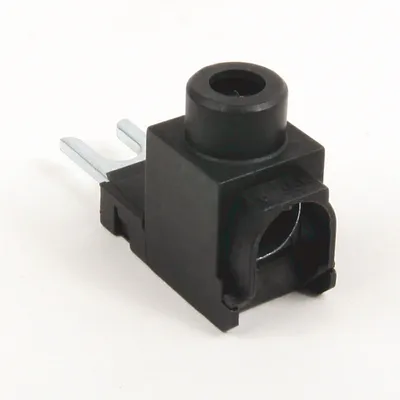

700-SHTRMA

/ – SS Relay Thermal Adaptor Fork Terminals

Allen-Bradley

700-SN10

/ – Heat Sink

Allen-Bradley

700-SH75VZ25

/ – 4...32V DC Hockey Puck Solid State Relay

Allen-Bradley

700-SH50VZ25

/ – 4...32V DC Hockey Puck Solid State Relay

Allen-Bradley

700-SH50HZ25

/ – 4...32V DC Hockey Puck Solid State Relay

Allen-Bradley

700-SH50GZ24

/ – 3...32V DC Hockey Puck Solid State Relay

Compare 700-SH Hockey Puck Style Solid-state Relays

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Rated Output (Load) Max. Current and Voltage Range	Input/Control Voltage	Switching Type
700-SH75HZ25	75 Amp @ 42...530V AC	4...32V DC	Zero Cross
700-SH75HA24	75 Amp @ 42...530V AC	20...280V AC/22..48V DC	Zero Cross
700-SH50GA24	50 Amp @ 24...265V AC	20...280V AC/22..48V DC	Zero Cross
700-SH10HZ25	10 Amp @ 42...530V AC	4...32V DC	Zero Cross
700-SH25GZ24	25 Amp @ 24...265V AC	3...32V DC	Zero Cross
700-SH10JZ24	10 Amp @ 42...265V AC	3...32V DC	Zero Cross
700-SH10JA12	10 Amp @ 42...265V AC	80...130V AC	Zero Cross
700-SH75VA24	75 Amp @ 42...660V AC	20...280V AC/22..48V DC	Zero Cross
700-SH50WA25	50 Amp @ 90...280V AC	4...20mA DC Phase Control	Analog/Phase Angle
700-SH50VA24	50 Amp @ 42...660V AC	20...280V AC/22..48V DC	Zero Cross
700-SH25WA25	25 Amp @ 90...280V AC	4...20mA DC Phase Control	Analog/Phase Angle
700-SH100VZ25	100 Amp @ 42...660V AC	4...32V DC	Zero Cross
700-SH100HA24	100 Amp @ 42...530V AC	20...280V AC/22..48V DC	Zero Cross
700-SH10JA22	10 Amp @ 42...265V AC	200...260V AC	Zero Cross
700-SH75VZ25	75 Amp @ 42...660V AC	4...32V DC	Zero Cross
700-SH50VZ25	50 Amp @ 42...660V AC	4...32V DC	Zero Cross
700-SH50HZ25	50 Amp @ 42...530V AC	4...32V DC	Zero Cross
700-SH50GZ24	50 Amp @ 24...265V AC	3...32V DC	Zero Cross

Common to all listed parts

Input-to-Output Isolation Method	Optocoupler
LED Indicator	Yes
