700-K Miniature Industrial Control Relays Parts
Compare 700-K Miniature Industrial Control Relays
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Auxiliary Contact Configuration | Terminal Type | Control Voltage | Package Quantity |
|---|---|---|---|---|
| 700-K31Z-BM | 3 N.O. / 1 N.C. | Screw Type Terminals | 440V 50Hz/480V 60Hz | 20 |

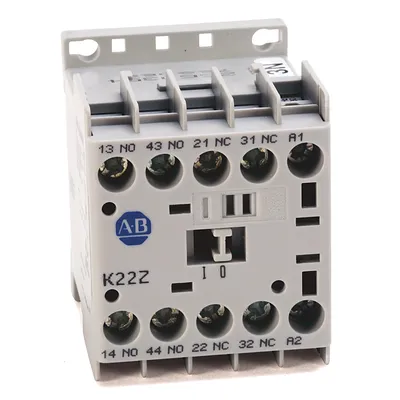

| 700-K31Z-B | 3 N.O. / 1 N.C. | Screw Type Terminals | 440V 50Hz/480V 60Hz | 1 |
| 700-K22Z-ZT | 2 N.O. / 2 N.C. | Screw Type Terminals | 250V DC | 1 |
| 700-K22Z-ZQM | 2 N.O. / 2 N.C. | Screw Type Terminals | 12 (7.5...15)V DC | 20 |
| 700-K22Z-ZQ | 2 N.O. / 2 N.C. | Screw Type Terminals | 12 (7.5...15)V DC | 1 |
| 700-KRL22Z-KJ | 1 N.O. / 1 N.C. / 1 E.M. / 1 L.B. | Spring Clamp Terminals | 24V 50/60Hz | 1 |

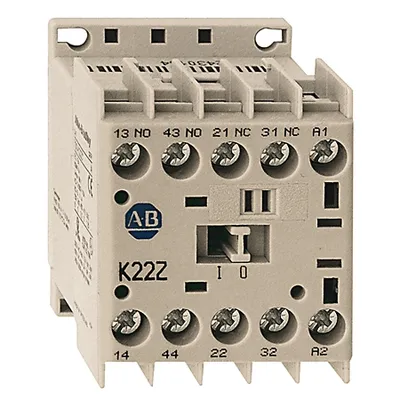

| 700-KRL22Z-KF | 1 N.O. / 1 N.C. / 1 E.M. / 1 L.B. | Spring Clamp Terminals | 230V 50/60Hz | 1 |
| 700-KRL22Z-DJ | 1 N.O. / 1 N.C. / 1 E.M. / 1 L.B. | Spring Clamp Terminals | 24 (17...30)V DC Diode | 1 |
| 700-KR40E-KFM | 4 N.O. | Spring Clamp Terminals | 230V 50/60Hz | 20 |
| 700-KR40E-DJM | 4 N.O. | Spring Clamp Terminals | 24 (17...30)V DC Diode | 20 |
| 700-KR31Z-ZJM | 3 N.O. / 1 N.C. | Spring Clamp Terminals | 24 (17...30)V DC | 20 |
| 700-KR31Z-KFM | 3 N.O. / 1 N.C. | Spring Clamp Terminals | 230V 50/60Hz | 20 |
| 700-KR31Z-DM | 3 N.O. / 1 N.C. | Spring Clamp Terminals | 110V 50Hz/120V 60Hz | 20 |
| 700-KR22Z-DM | 2 N.O. / 2 N.C. | Spring Clamp Terminals | 110V 50Hz/120V 60Hz | 20 |
| 700-KRL22Z-ZJM | 1 N.O. / 1 N.C. / 1 E.M. / 1 L.B. | Spring Clamp Terminals | 24 (17...30)V DC | 20 |
| 700-KL22Z-ZT | 1 N.O. / 1 N.C. / 1 E.M. / 1 L.B. | Screw Type Terminals | 250V DC | 1 |
| 700-KL22Z-WD | 1 N.O. / 1 N.C. / 1 E.M. / 1 L.B. | Screw Type Terminals | 110V 50Hz/120V 60Hz With Varsitor | 1 |
