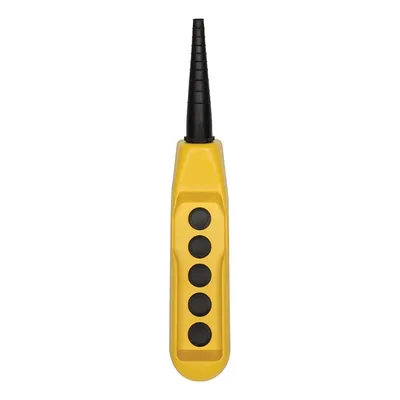

800FC Pendant Stations Parts
Compare 800FC Pendant Stations
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Contact block configuration | Contact block type | Operator cap color (lens) | Operator cap text/symbol | Operator cap type |
|---|---|---|---|---|---|
| 800FP-G0MX10 | 1 NO | Standard | Orange | Blank | Guarded push-button |
| 800FP-G3MX10 | 1 NO | Standard | Green | Blank | Guarded push-button |
| 800FP-F5PX02 | 2 NC | Standard | Yellow | Blank | Flush push-button |
| 800FP-FA1PX11E | 1 NO/1 NC | NO early make | White | Optional | Flush alternate action |
| 800FP-FA1PX10E | 1 NO | NO early make | White | Optional | Flush alternate action |
| 800FP-F8PX22 | 2 NO/2 NC | Standard | Gray | Blank | Flush push-button |
| 800FP-F209PX10 | 1 NO | Standard | Black | FORWARD | Flush push-button |
| 800FP-E4PX02V | 2 NC | Low voltage | Red | Blank | Extended push-button |
| 800FP-LSB34PN5RX11 | 1 NO/1 NC | Standard | — | — | — |

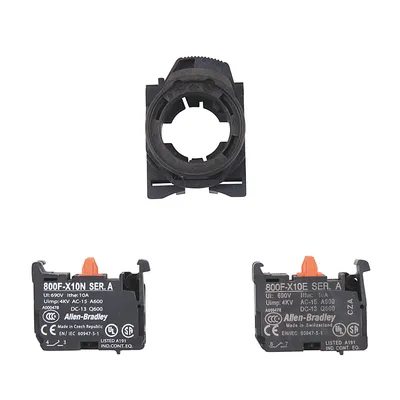

Common to all listed parts
| Lifecycle | Active |
| Repair options available | No |
| Contact block durability | 1.0E7 |
| Contact block mounting style | Latch |
| Contact block operational voltage, max | 600V (A600, Q600) - screw termination |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | #18...12 AWG (0.75...2.5 mm²) |
| Contact block thermal current rating | 10 A |
