100L Electrically Held Parts
Compare 100L Electrically Held
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Enclosure Type | Control Voltage | No. of Poles | Auxiliary Hold-In Contact |
|---|---|---|---|---|

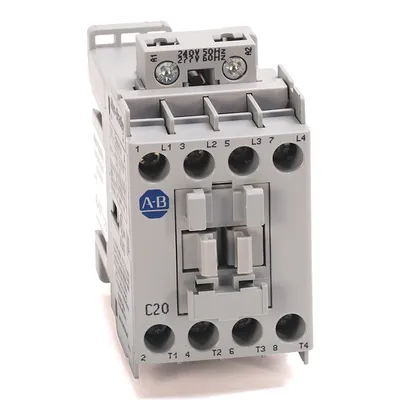

| 100L-C20ND12 | Open | 110V 50 Hz / 120V 60 Hz | 12 Poles | No |
| 100L-C20NT8 | Open | 240V 50 Hz / 277V 60 Hz | 8 Poles | No |
| 100L-C20NT12 | Open | 240V 50 Hz / 277V 60 Hz | 12 Poles | No |
| 100L-C20NL12 | Open | 200-220V 50 Hz / 208-240V 60 Hz | 12 Poles | No |
| 100L-C20ND8-90 | Open | 110V 50 Hz / 120V 60 Hz | 8 Poles | Yes |
| 100L-C20ND8 | Open | 110V 50 Hz / 120V 60 Hz | 8 Poles | No |
| 100L-C20ND4-90 | Open | 110V 50 Hz / 120V 60 Hz | 4 Poles | Yes |
| 100L-C20FD8 | NEMA Type 3/4/12 - IP66 | 110V 50 Hz / 120V 60 Hz | 8 Poles | No |
| 100L-C20FD4 | NEMA Type 3/4/12 - IP66 | 110V 50 Hz / 120V 60 Hz | 4 Poles | No |

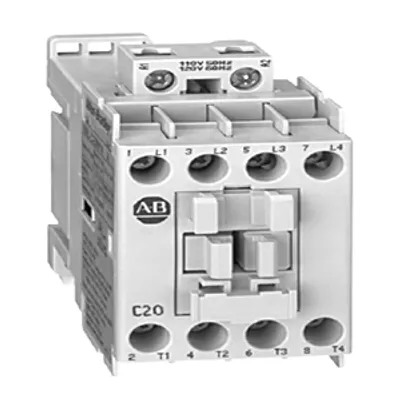

| 100L-C20ND12-90 | Open | 110V 50 Hz / 120V 60 Hz | 12 Poles | Yes |
| 100L-C20NT4 | Open | 240V 50 Hz / 277V 60 Hz | 4 Poles | No |
| 100L-C20NKJ12 | Open | 24V 50-60Hz | 12 Poles | No |
| 100L-C20NL4 | Open | 200-220V 50 Hz / 208-240V 60 Hz | 4 Poles | No |

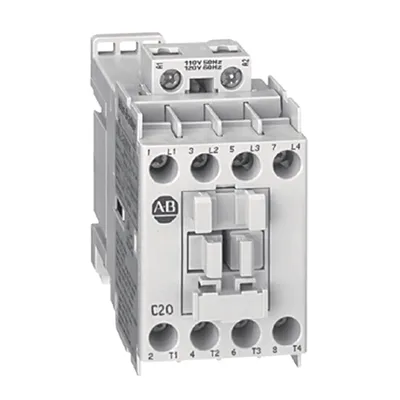

| 100L-C20NKJ8 | Open | 24V 50-60Hz | 8 Poles | No |
| 100L-C20NKJ4-90 | Open | 24V 50-60Hz | 4 Poles | Yes |
| 100L-C20NKJ4 | Open | 24V 50-60Hz | 4 Poles | No |
| 100L-C20ND4 | Open | 110V 50 Hz / 120V 60 Hz | 4 Poles | No |
Common to all listed parts
| Contactor Size | 20 A |
