1492-P Power Distribution Parts
Compare 1492-P Power Distribution
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Wire Range (Rated Cross Section) | UL/CSA Current Rating | Width | Connection Points | Wiring Diagram |
|---|---|---|---|---|---|

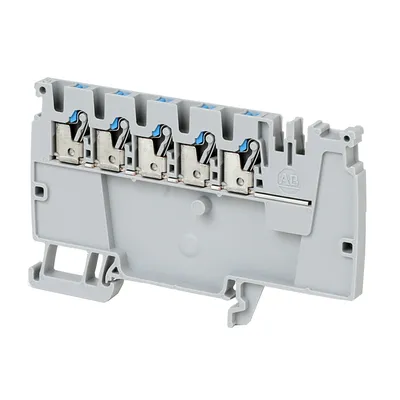

| 1492-P10PD3E-5B | 2.5 mm² (AWG 28 - AWG 12) | 20A | 5.1 mm | 5 Points Blue | 1492-P10PD3E-5B |

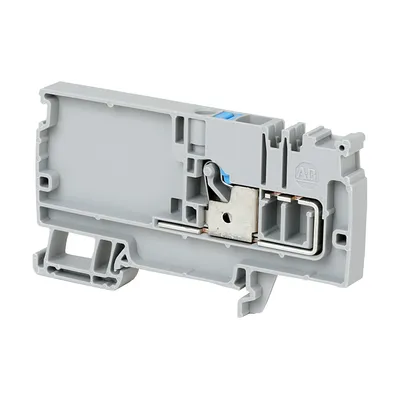

| 1492-P6PD2S-1B | 6 mm² ( AWG 22 - AWG 8) | 36A | 8.1 mm | 1 Point Blue | 1492-P6PD2S-1B |
| 1492-PG6PD2S | 6 mm² ( AWG 22 - AWG 8) | Not Applicable | 8.1 mm | 1 Point Blue | 1492-PG6PD2S |

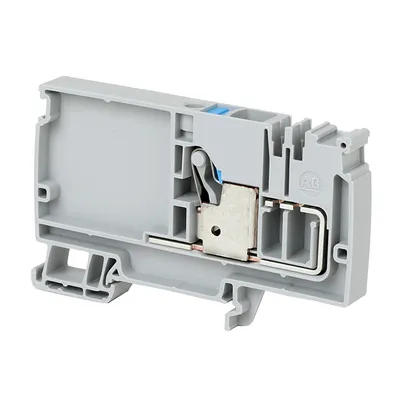

| 1492-PG10PD3S | 10 mm² ( AWG 20 - AWG 6) | Not Applicable | 10 mm | 1 Point Blue | 1492-PG10PD3S |
| 1492-P6PD2S-1RE1G | 6 mm² ( AWG 22 - AWG 8) | 36A | 8.1 mm | 1 Point Red, 1 Point Blue | 1492-P6PD2S-1RE1G |

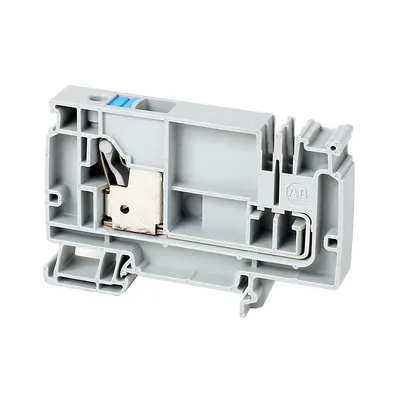

| 1492-P10PD4S-1B | 10 mm² ( AWG 20 - AWG 6) | 51A | 12 mm | 1 Point Blue | 1492-P10PD4S-1B |

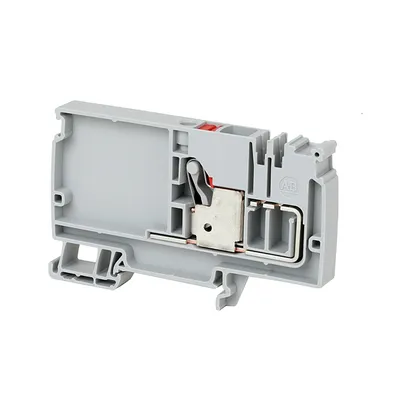

| 1492-P10PD3S-1RE | 10 mm² ( AWG 20 - AWG 6) | 51A | 10 mm | 1 Point Red | 1492-P10PD3S-1RE |

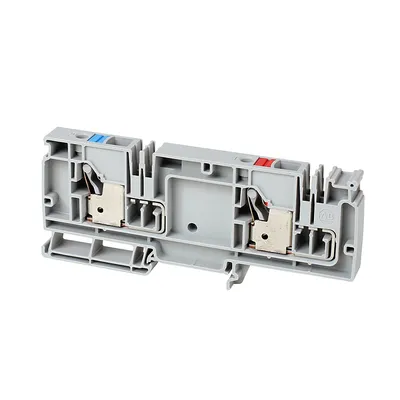

| 1492-P10PD4S-1B1RE | 10 mm² ( AWG 20 - AWG 6) | 51A | 12 mm | 1 Point Red, 1 Point Blue | 1492-P10PD4S-1B1RE |
| 1492-P10PD4E-1RE | 4 mm² (AWG 26 - AWG 10) | 20A | 6.1 mm | 1 Point Red | 1492-P10PD4E-1RE |

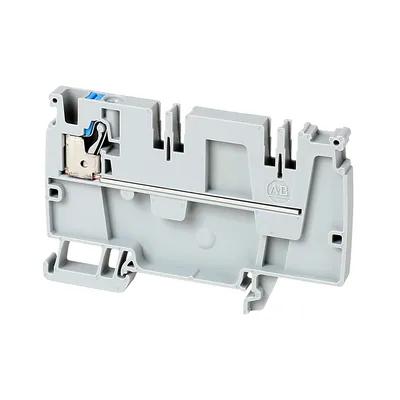

| 1492-P10PD4E-1B | 4 mm² (AWG 26 - AWG 10) | 20A | 6.1 mm | 1 Point Blue | 1492-P10PD4E-1B |

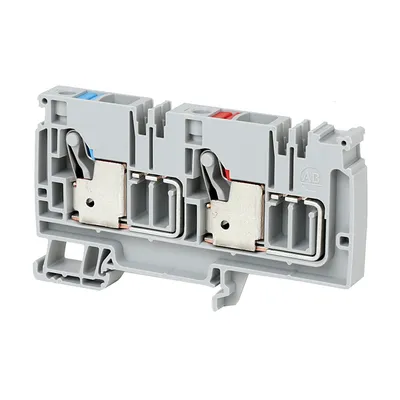

| 1492-P10PD3S-1RE1G | 10 mm² ( AWG 20 - AWG 6) | 51A | 10 mm | 1 Point Red, 1 Point Blue | 1492-P10PD3S-1RE1G |
| 1492-P10PD3S-1B | 10 mm² ( AWG 20 - AWG 6) | 51A | 10 mm | 1 Point Blue | 1492-P10PD3S-1B |

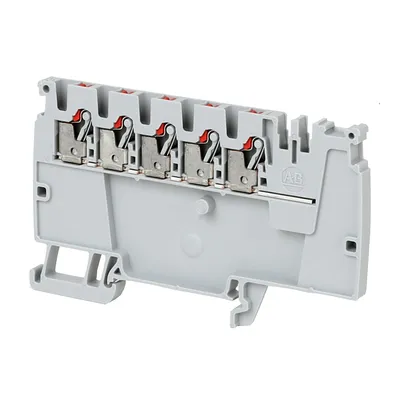

| 1492-P10PD3E-5RE | 2.5 mm² (AWG 28 - AWG 12) | 20A | 5.1 mm | 5 Points Red | 1492-P10PD3E-5RE |
| 1492-P10PD3S-1B1RE | 10 mm² ( AWG 20 - AWG 6) | 51A | 10 mm | 1 Point Red, 1 Point Blue | 1492-P10PD3S-1B1RE |

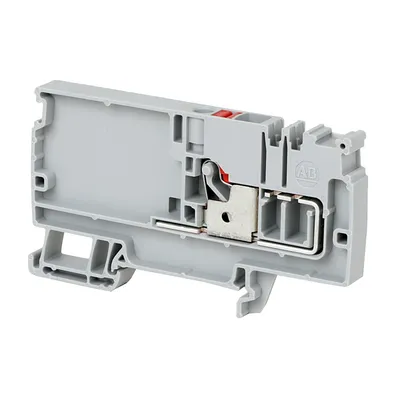

| 1492-P6PD2S-1RE | 6 mm² ( AWG 22 - AWG 8) | 36A | 8.1 mm | 1 Point Red | 1492-P6PD2S-1RE |

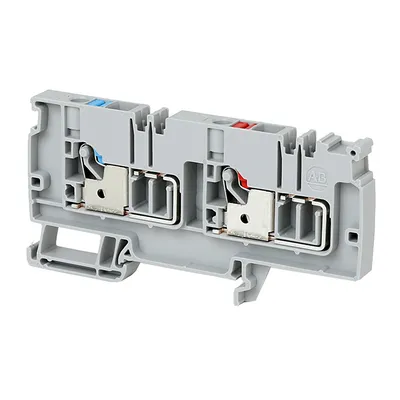

| 1492-P6PD2S-1B1RE | 6 mm² ( AWG 22 - AWG 8) | 36A | 8.1 mm | 1 Point Red, 1 Point Blue | 1492-P6PD2S-1B1RE |
| 1492-P6PD2E-6RE | 1.5 mm² ( AWG 26 - AWG 14) | 13A | 3.5 mm | 6 Points Red | 1492-P6PD2E-6RE |

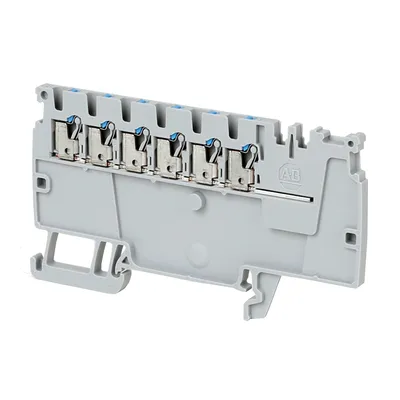

| 1492-P6PD2E-6B | 1.5 mm² ( AWG 26 - AWG 14) | 13A | 3.5 mm | 6 Points Blue | 1492-P6PD2E-6B |

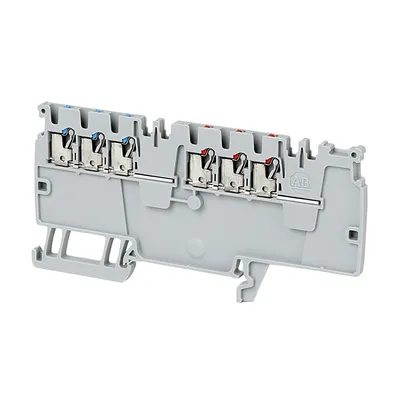

| 1492-P6PD2E-3B3RE | 1.5 mm² ( AWG 26 - AWG 14) | 13A | 3.5 mm | 3 Points Red, 3 Points Blue | 1492-P6PD2E-3B3RE |

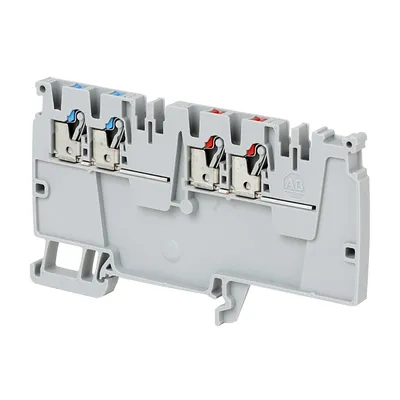

| 1492-P10PD3E-2B2RE | 2.5 mm² (AWG 28 - AWG 12) | 20A | 5.1 mm | 2 Points Red, 2 Points Blue | 1492-P10PD3E-2B2RE |

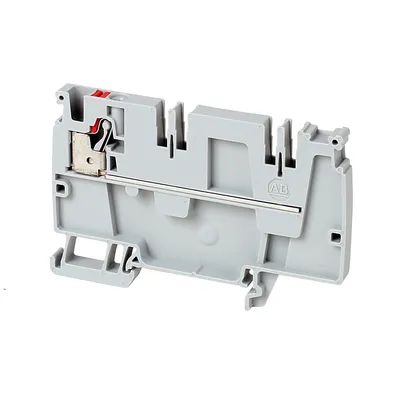

| 1492-P10PD4S-1RE | 10 mm² ( AWG 20 - AWG 6) | 51A | 12 mm | 1 Point Red | 1492-P10PD4S-1RE |

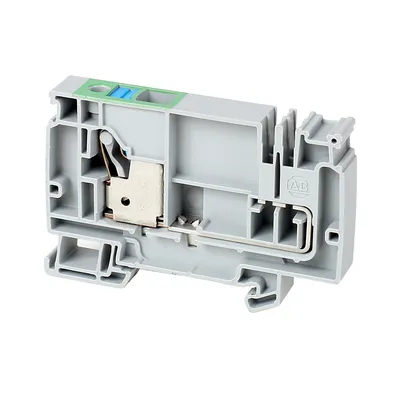

| 1492-PG10PD4S | 10 mm² ( AWG 20 - AWG 6) | Not Applicable | 12 mm | 1 Point Blue | 1492-PG10PD4S |

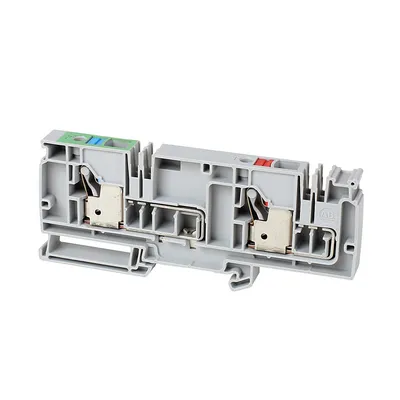

| 1492-P10PD4S-1RE1G | 10 mm² ( AWG 20 - AWG 6) | 51A | 12 mm | 1 Point Red, 1 Point Blue | 1492-P10PD4S-1RE1G |
Common to all listed parts
| Electrical Standards/ Certifications | IEC / UL / CSA / ATEX / IECEx |
| Color | Grey |
| Block Type | Control Power Distribution Block |
