1585 On-Machine M12 Cables Parts
Compare 1585 On-Machine M12 Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | First Connector Type | Second Connector Type | Second Connector Orientation | Standard or Build-to-Order Cable Length | Cable Length |
|---|---|---|---|---|---|
| 1585D-M4HBDM-30M5 | M12 D-Code | M12 | Straight Male | Build-to-Order Cable Length | 30.5 Meters |
| 1585D-M4TBDE-8 | M12 D-Code | M12 | Right Angle Male | Build-to-Order Cable Length | 8 Meters |

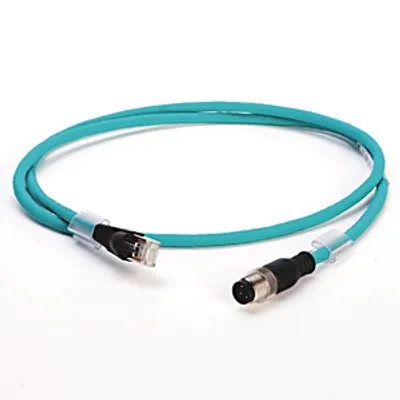

| 1585D-M4TBJM-51 | M12 D-Code | RJ45 | Straight Male | Build-to-Order Cable Length | 51 Meters |
| 1585D-M4UBDE-30 | M12 D-Code | M12 | Right Angle Male | 30 Meters | — |

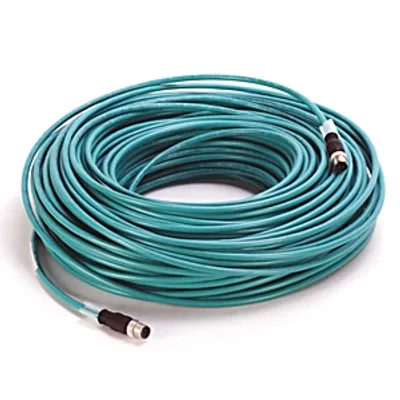

| 1585D-M4UBDM-75 | M12 D-Code | M12 | Straight Male | Build-to-Order Cable Length | 75 Meters |

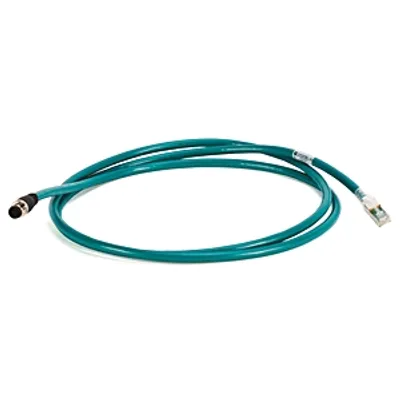

| 1585D-M4HBDM-9M4 | M12 D-Code | M12 | Straight Male | Build-to-Order Cable Length | 9.4 Meters |
| 1585J-M8HBJE-0M3 | RJ45 | RJ45 | Right Angle Male | 0.3 Meters | — |
| 1585J-M8CBJM-51 | RJ45 | RJ45 | Straight Male | Build-to-Order Cable Length | 51 Meters |

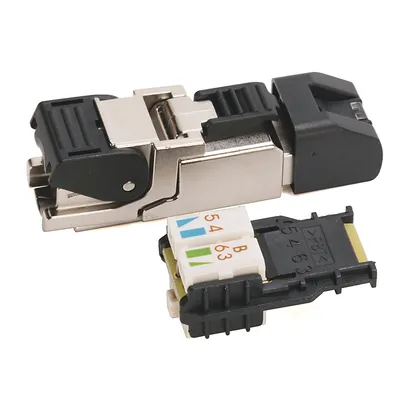

| 1585J-M8CBJM-91M5 | RJ45 | RJ45 | Straight Male | Build-to-Order Cable Length | 91.5 Meters |
| 1585J-M4TBJM-55 | RJ45 | RJ45 | Straight Male | Build-to-Order Cable Length | 55 Meters |
| 1585J-M4TBJE-0M6 | RJ45 | RJ45 | Right Angle Male | 0.6 Meters | — |
| 1585J-M4TB-60 | RJ45 | Flying Leads | Flying Leads | Build-to-Order Cable Length | 60 Meters |
| 1585J-M8CB-1M5 | RJ45 | Flying Leads | Flying Leads | Build-to-Order Cable Length | 1.5 Meters |

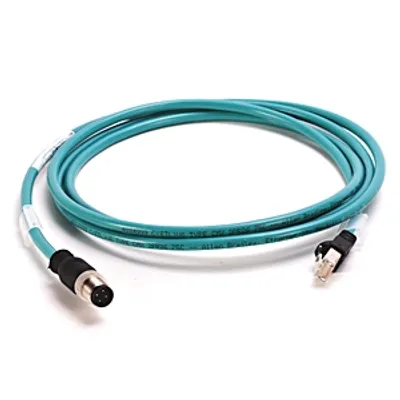

| 1585D-M4UBJM-23 | M12 D-Code | RJ45 | Straight Male | Build-to-Order Cable Length | 23 Meters |
| 1585J-M8CBJL-0M3 | RJ45 | RJ45 | Left Angle Male | 0.3 Meters | — |

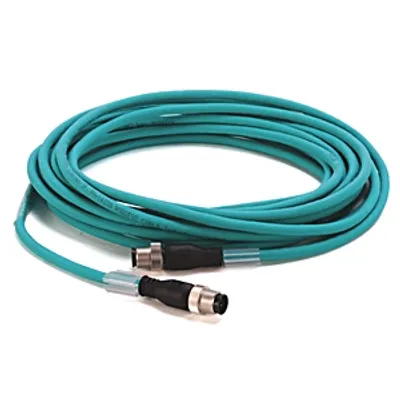

| 1585D-M4TBDM-28 | M12 D-Code | M12 | Straight Male | Build-to-Order Cable Length | 28 Meters |
| 1585D-M4TBDM-42 | M12 D-Code | M12 | Straight Male | Build-to-Order Cable Length | 42 Meters |

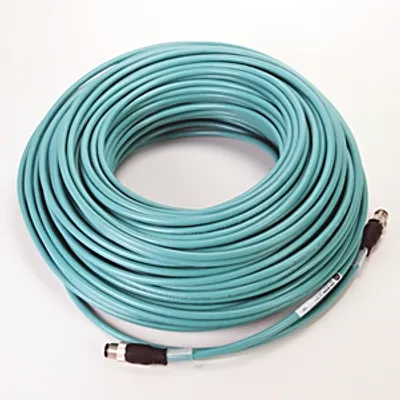

| 1585D-M4UBDM-65 | M12 D-Code | M12 | Straight Male | Build-to-Order Cable Length | 65 Meters |
| 1585D-M4EBDM-30 | M12 D-Code | M12 | Straight Male | 30 Meters | — |
| 1585D-M4EBDM-25 | M12 D-Code | M12 | Straight Male | Build-to-Order Cable Length | 25 Meters |
| 1585D-M4EBDM-20 | M12 D-Code | M12 | Straight Male | 20 Meters | — |
| 1585D-M4HBJM-65 | M12 D-Code | RJ45 | Straight Male | Build-to-Order Cable Length | 65 Meters |
| 1585D-M4HBJM-18 | M12 D-Code | RJ45 | Straight Male | Build-to-Order Cable Length | 18 Meters |
Common to all listed parts
| First Connector Orientation | Straight Male |
| Cable Bandwidth | 100BASE-TX, 100 Mbit/s |
| Connector Feature | Standard |
| Crossover | No |
| First Connector Pinout: | Pinout: |
