1585 On-Machine M12 Cables Parts
Compare 1585 On-Machine M12 Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | First Connector Orientation | Number of Conductors | Second Connector Type | Second Connector Orientation | Standard or Build-to-Order Cable Length |
|---|---|---|---|---|---|
| 1585J-M4UBJM-1M5 | Straight Male | 4 Conductors | RJ45 | Straight Male | Build-to-Order Cable Length |
| 1585J-M4UBJE-0M15 | Straight Male | 4 Conductors | RJ45 | Right Angle Male | — |
| 1585J-M4UB-45 | Straight Male | 4 Conductors | Flying Leads | Flying Leads | Build-to-Order Cable Length |
| 1585J-E8CBJE-2M5 | Right Angle Male | 8 Conductors | RJ45 | Right Angle Male | 2.5 Meters |
| 1585J-E8CBJE-10 | Right Angle Male | 8 Conductors | RJ45 | Right Angle Male | 10 Meters |
| 1585J-E8CBJE-0M3 | Right Angle Male | 8 Conductors | RJ45 | Right Angle Male | 0.3 Meters |
| 1585J-E4VBJE-1 | Right Angle Male | 4 Conductors | RJ45 | Right Angle Male | 1 Meter |
| 1585J-E4UBJM-5 | Right Angle Male | 4 Conductors | RJ45 | Straight Male | 5 Meters |
| 1585J-E4TBJM-5 | Right Angle Male | 4 Conductors | RJ45 | Straight Male | 5 Meters |
| 1585J-E4TBJM-2 | Right Angle Male | 4 Conductors | RJ45 | Straight Male | 2 Meters |
| 1585J-E4TBJM-15 | Right Angle Male | 4 Conductors | RJ45 | Straight Male | 15 Meters |
| 1585J-E4TBJM-10 | Right Angle Male | 4 Conductors | RJ45 | Straight Male | 10 Meters |
| 1585J-E4TBJL-5 | Right Angle Male | 4 Conductors | RJ45 | Left Angle Male | 5 Meters |
| 1585J-E4HBJM-2 | Right Angle Male | 4 Conductors | RJ45 | Straight Male | 2 Meters |
| 1585J-E4HBJL-0M6 | Right Angle Male | 4 Conductors | RJ45 | Left Angle Male | 0.6 Meters |
| 1585J-E4EBJM-1 | Right Angle Male | 4 Conductors | RJ45 | Straight Male | 1 Meter |
| 1585J-M8PBJM-5X | Straight Male | 8 Conductors | RJ45 | Straight Male | 5 Meters |
| 1585J-M8PBJM-4X | Straight Male | 8 Conductors | RJ45 | Straight Male | 4 Meters |
| 1585J-M8PBJM-45X | Straight Male | 8 Conductors | RJ45 | Straight Male | Build-to-Order Cable Length |
| 1585J-M8PBJM-35X | Straight Male | 8 Conductors | RJ45 | Straight Male | Build-to-Order Cable Length |

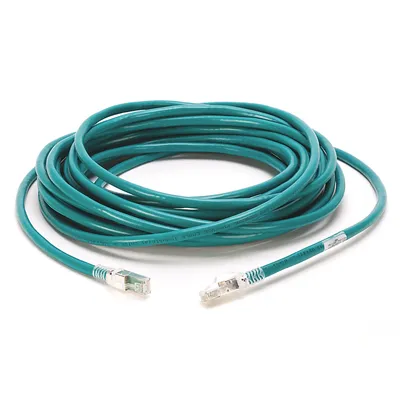

| 1585J-M8PBJM-2X | Straight Male | 8 Conductors | RJ45 | Straight Male | 2 Meters |
| 1585J-M8HBJM-1M4 | Straight Male | 8 Conductors | RJ45 | Straight Male | Build-to-Order Cable Length |
| 1585J-M8HBJM-17M5 | Straight Male | 8 Conductors | RJ45 | Straight Male | Build-to-Order Cable Length |
| 1585J-M8UBJM-18M3 | Straight Male | 8 Conductors | RJ45 | Straight Male | Build-to-Order Cable Length |
Common to all listed parts
| First Connector Type | RJ45 |
| Cable Bandwidth | 100BASE-TX, 100 Mbit/s |
| Connector Feature | Standard |
| First Connector Pinout: | Pinout: |
