1585 On-Machine M12 Cables Parts
Compare 1585 On-Machine M12 Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | First Connector Orientation | Second Connector Type | Second Connector Orientation | Standard or Build-to-Order Cable Length | Second Connector Pinout: |
|---|---|---|---|---|---|
| 1585J-E8TBJM-0M8 | Right Angle Male | RJ45 | Straight Male | Build-to-Order Cable Length | Pinout: |
| 1585J-E8TBJM-0M3 | Right Angle Male | RJ45 | Straight Male | 0.3 Meters | Pinout: |
| 1585J-E8TBJL-2 | Right Angle Male | RJ45 | Left Angle Male | 2 Meters | Pinout: |
| 1585J-E8TBJL-0M6 | Right Angle Male | RJ45 | Left Angle Male | 0.6 Meters | Pinout: |
| 1585J-E8PBJM-5 | Right Angle Male | RJ45 | Straight Male | 5 Meters | Pinout: |
| 1585J-E8PBJM-2 | Right Angle Male | RJ45 | Straight Male | 2 Meters | Pinout: |
| 1585J-E8PBJM-0M3 | Right Angle Male | RJ45 | Straight Male | 0.3 Meters | Pinout: |
| 1585J-E8PBJL-3 | Right Angle Male | RJ45 | Left Angle Male | 3 Meters | Pinout: |
| 1585J-E8PBJL-15 | Right Angle Male | RJ45 | Left Angle Male | 15 Meters | Pinout: |

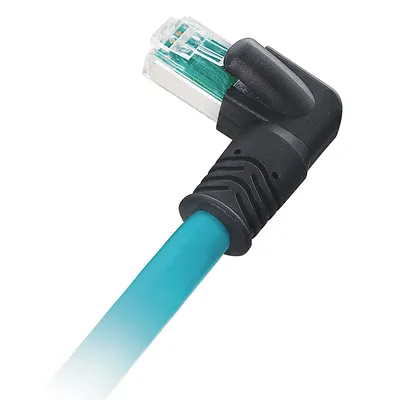

| 1585J-L8UBJM-1 | Left Angle Male | RJ45 | Straight Male | 1 Meter | Pinout: |
| 1585J-L8UBJM-0M3 | Left Angle Male | RJ45 | Straight Male | 0.3 Meters | Pinout: |
| 1585J-L8TBJM-2 | Left Angle Male | RJ45 | Straight Male | 2 Meters | Pinout: |
| 1585J-L8TBJM-1M2 | Left Angle Male | RJ45 | Straight Male | Build-to-Order Cable Length | Pinout: |
| 1585J-L8TBJL-1 | Left Angle Male | RJ45 | Left Angle Male | 1 Meter | Pinout: |
| 1585J-L8TBJL-0M15 | Left Angle Male | RJ45 | Left Angle Male | — | Pinout: |
| 1585J-L8TBJE-0M6 | Left Angle Male | RJ45 | Right Angle Male | 0.6 Meters | Pinout: |
| 1585J-L8RB-2M5 | Left Angle Male | Flying Leads | Flying Leads | 2.5 Meters | Flying Lead Color Codes: |
| 1585J-L8HBJM-8 | Left Angle Male | RJ45 | Straight Male | Build-to-Order Cable Length | Pinout: |
| 1585J-L8HBJM-78 | Left Angle Male | RJ45 | Straight Male | Build-to-Order Cable Length | Pinout: |
| 1585J-L8CBJM-2M5 | Left Angle Male | RJ45 | Straight Male | 2.5 Meters | Pinout: |
| 1585J-L8CBJM-0M3 | Left Angle Male | RJ45 | Straight Male | 0.3 Meters | Pinout: |
| 1585J-L8CBJM-0M15 | Left Angle Male | RJ45 | Straight Male | — | Pinout: |
Common to all listed parts
| First Connector Type | RJ45 |
| Number of Conductors | 8 Conductors |
| Cable Bandwidth | 100BASE-TX, 100 Mbit/s |
| Connector Feature | Standard |
| Crossover | No |
| First Connector Pinout: | Pinout: |
