1585 On-Machine M12 Cables Parts
Compare 1585 On-Machine M12 Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | First Connector Type | Number of Conductors | Second Connector Type | Second Connector Orientation | Standard or Build-to-Order Cable Length |
|---|---|---|---|---|---|
| 1585J-M8QBJM-0M3 | RJ45 | 8 Conductors | RJ45 | Straight Male | 0.3 Meters |
| 1585J-M8PBJM-8 | RJ45 | 8 Conductors | RJ45 | Straight Male | Build-to-Order Cable Length |
| 1585J-M8PBJM-50 | RJ45 | 8 Conductors | RJ45 | Straight Male | Build-to-Order Cable Length |
| 1585J-M8PBJM-40 | RJ45 | 8 Conductors | RJ45 | Straight Male | 40 Meters |
| 1585J-M8PBJM-35 | RJ45 | 8 Conductors | RJ45 | Straight Male | Build-to-Order Cable Length |

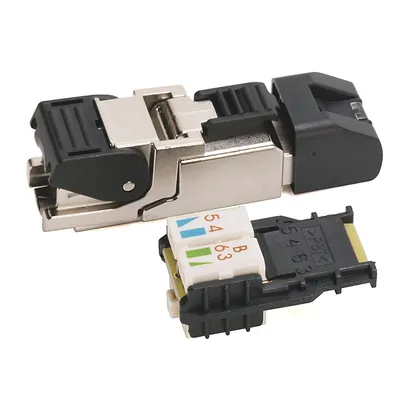

| 1585J-M8PBJM-2M5 | RJ45 | 8 Conductors | RJ45 | Straight Male | 2.5 Meters |
| 1585J-M8PBJM-25 | RJ45 | 8 Conductors | RJ45 | Straight Male | Build-to-Order Cable Length |

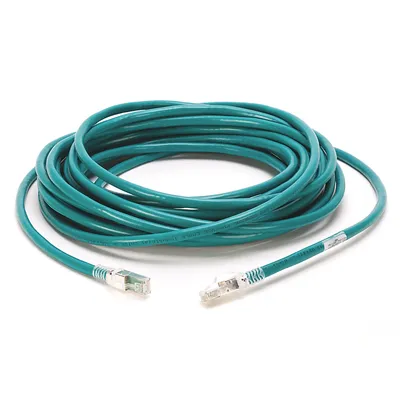

| 1585J-M8PBJM-20X | RJ45 | 8 Conductors | RJ45 | Straight Male | 20 Meters |
| 1585D-M4UBJM-95 | M12 D-Code | 4 Conductors | RJ45 | Straight Male | Build-to-Order Cable Length |
| 1585D-M4UBJM-9 | M12 D-Code | 4 Conductors | RJ45 | Straight Male | Build-to-Order Cable Length |
| 1585D-M4UBJM-8 | M12 D-Code | 4 Conductors | RJ45 | Straight Male | Build-to-Order Cable Length |
| 1585D-M4UBJM-65 | M12 D-Code | 4 Conductors | RJ45 | Straight Male | Build-to-Order Cable Length |

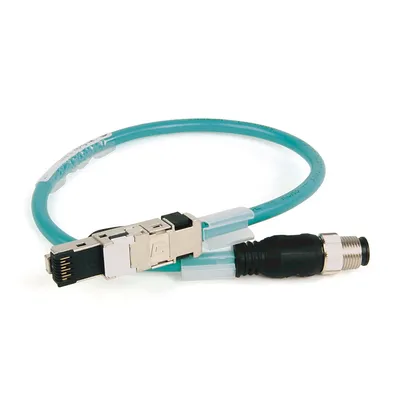

| 1585D-M4UBJM-60 | M12 D-Code | 4 Conductors | RJ45 | Straight Male | Build-to-Order Cable Length |
| 1585D-M4UBJM-50 | M12 D-Code | 4 Conductors | RJ45 | Straight Male | Build-to-Order Cable Length |

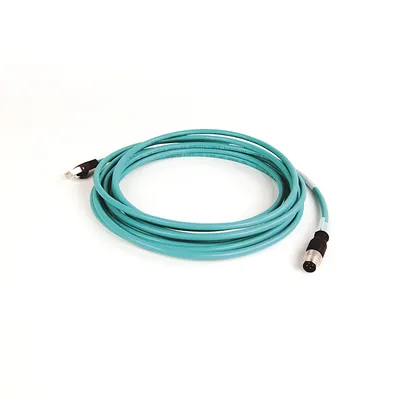

| 1585D-M4UBJM-5 | M12 D-Code | 4 Conductors | RJ45 | Straight Male | 5 Meters |
| 1585D-M4UBJM-45 | M12 D-Code | 4 Conductors | RJ45 | Straight Male | Build-to-Order Cable Length |

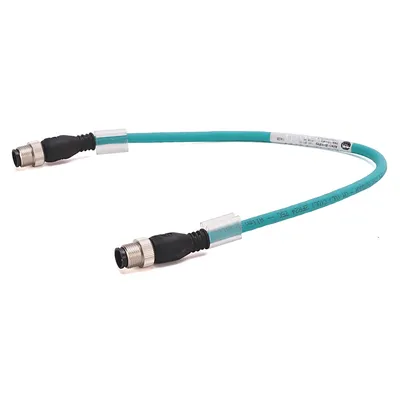

| 1585D-M4TBDF-10 | M12 D-Code | 4 Conductors | M12 | Straight Female | 10 Meters |

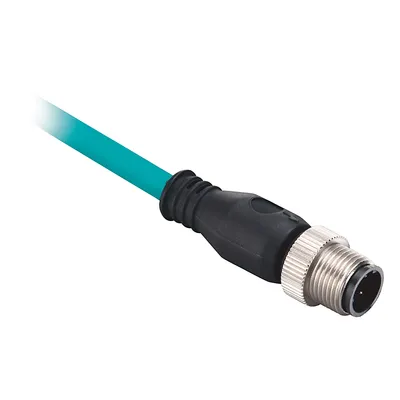

| 1585D-M4TB-5 | M12 D-Code | 4 Conductors | Flying Leads | Flying Leads | 5 Meters |
| 1585D-M4TB-2 | M12 D-Code | 4 Conductors | Flying Leads | Flying Leads | 2 Meters |

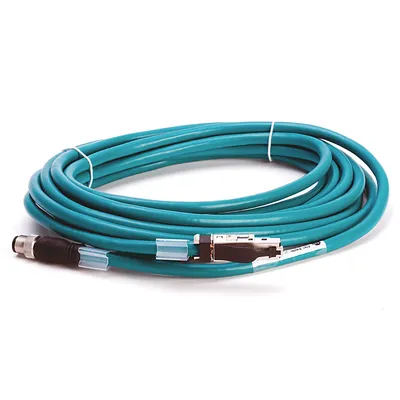

| 1585D-M4HBJM-5 | M12 D-Code | 4 Conductors | RJ45 | Straight Male | 5 Meters |
Common to all listed parts
| First Connector Orientation | Straight Male |
| Cable Bandwidth | 100BASE-TX, 100 Mbit/s |
| Connector Feature | Standard |
| First Connector Pinout: | Pinout: |
