1585 On-Machine M12 Cables Parts
Compare 1585 On-Machine M12 Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | First Connector Type | First Connector Orientation | Second Connector Type | Second Connector Orientation | Standard or Build-to-Order Cable Length |
|---|---|---|---|---|---|
| 1585J-M8CBJM-15 | RJ45 | Straight Male | RJ45 | Straight Male | 15 Meters |
| 1585J-M8CBJM-10 | RJ45 | Straight Male | RJ45 | Straight Male | 10 Meters |

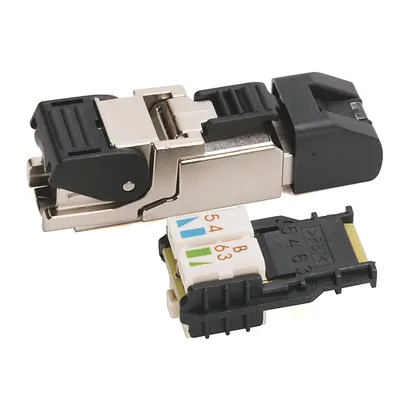

| 1585J-M8CBJM-1 | RJ45 | Straight Male | RJ45 | Straight Male | 1 Meter |
| 1585J-M8CBJM-0M9 | RJ45 | Straight Male | RJ45 | Straight Male | Build-to-Order Cable Length |
| 1585J-M8CBJM-0M5 | RJ45 | Straight Male | RJ45 | Straight Male | Build-to-Order Cable Length |
| 1585J-M8CBJM-0M4 | RJ45 | Straight Male | RJ45 | Straight Male | Build-to-Order Cable Length |
| 1585J-M8CBJM-0M3 | RJ45 | Straight Male | RJ45 | Straight Male | 0.3 Meters |
| 1585J-M8CBJM-0M2 | RJ45 | Straight Male | RJ45 | Straight Male | — |
| 1585J-M8CBJM-0M15 | RJ45 | Straight Male | RJ45 | Straight Male | — |
| 1585J-M8CBJE-1 | RJ45 | Straight Male | RJ45 | Right Angle Male | 1 Meter |
| 1585J-M8CB-5 | RJ45 | Straight Male | Flying Leads | Flying Leads | 5 Meters |
| 1585J-M8CB-35 | RJ45 | Straight Male | Flying Leads | Flying Leads | Build-to-Order Cable Length |
| 1585J-M8CB-2 | RJ45 | Straight Male | Flying Leads | Flying Leads | 2 Meters |
| 1585J-M4VBJM-3 | RJ45 | Straight Male | RJ45 | Straight Male | 3 Meters |
| 1585J-L4HBJM-2 | RJ45 | Left Angle Male | RJ45 | Straight Male | 2 Meters |
| 1585J-E8PBJM-0M6 | RJ45 | Right Angle Male | RJ45 | Straight Male | 0.6 Meters |
| 1585J-E8HBJM-5 | RJ45 | Right Angle Male | RJ45 | Straight Male | 5 Meters |
| 1585J-E8HBJM-20 | RJ45 | Right Angle Male | RJ45 | Straight Male | 20 Meters |
| 1585J-E8HBJM-15 | RJ45 | Right Angle Male | RJ45 | Straight Male | 15 Meters |
| 1585J-E8HBJM-10 | RJ45 | Right Angle Male | RJ45 | Straight Male | 10 Meters |

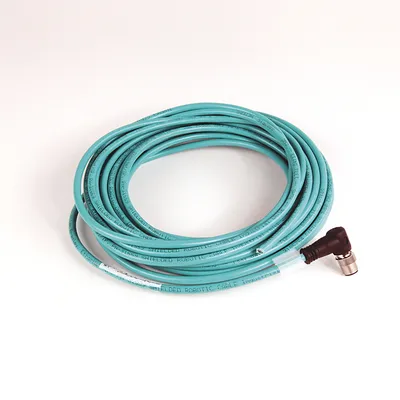

| 1585D-E4UBJM-1 | M12 D-Code | Right Angle Male | RJ45 | Straight Male | 1 Meter |
| 1585D-E4UBDM-2 | M12 D-Code | Right Angle Male | M12 | Straight Male | 2 Meters |

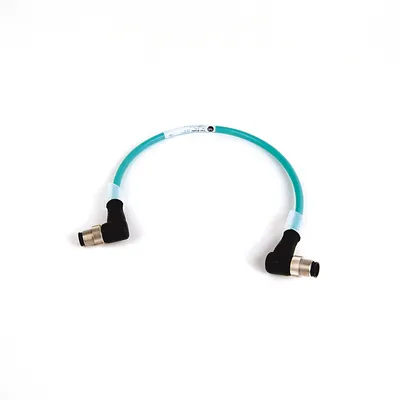

| 1585D-E4UBDM-10 | M12 D-Code | Right Angle Male | M12 | Straight Male | 10 Meters |

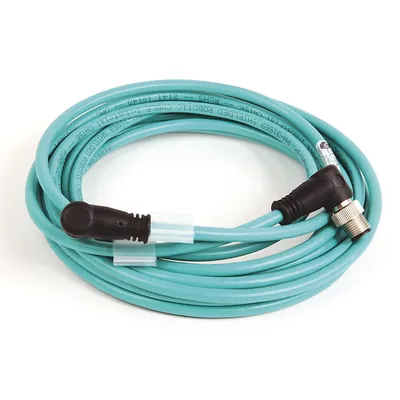

| 1585D-E4UBDE-5 | M12 D-Code | Right Angle Male | M12 | Right Angle Male | 5 Meters |
Common to all listed parts
| Cable Bandwidth | 100BASE-TX, 100 Mbit/s |
| Connector Feature | Standard |
| Crossover | No |
| First Connector Pinout: | Pinout: |
