Supplementary system components Parts
Compare Supplementary system components
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Technical Product Detail Page | wire length | bending radius — with single bend / minimum permissible | bending radius — with multiple bends / minimum permissible | tensile load / maximum |
|---|---|---|---|---|---|

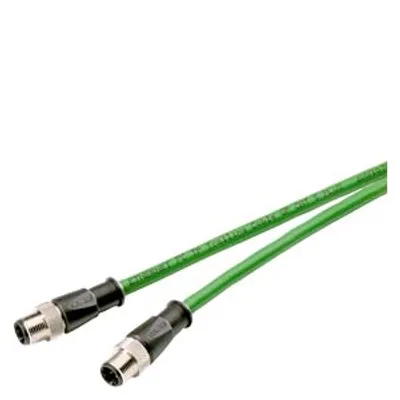

| 6XV1870-8AH30 | https://i.siemens.com/1P6XV1870-8AH30 | 3 m | 33 mm | 55 mm | 120 N |
| 6XV1870-8AH20 | https://i.siemens.com/1P6XV1870-8AH20 | 2 m | 32.5 mm | 49 mm | 150 N |
| 6XV1870-8AH15 | https://i.siemens.com/1P6XV1870-8AH15 | 1.5 m | 32.5 mm | 49 mm | 150 N |
Common to all listed parts
| cable designation | SF/UTP, 2YY (ST) CY 2x2x0,75/1,5-100 LI GN |
| number of electrical connections | 2 |
| attenuation factor per length — at 10 MHz / maximum | 0.063 dB/m |
| attenuation factor per length — at 100 MHz / maximum | 0.213 dB/m |
| impedance — at 1 MHz ... 100 MHz | 100 Ω |
| relative symmetrical tolerance — of the characteristic impedance at 1 MHz … 100 MHz | 5 % |
| near-end crosstalk per length — at 1 MHz ... 100 MHz | 0.5 dB/m |
| transfer impedance per length / at 10 MHz | 20 mΩ/m |
