AC Micro Distribution Boxes Parts
Compare AC Micro Distribution Boxes
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Input Port Type | Illumination | Number of Input Pins | Number of Input Ports | Output Description |
|---|---|---|---|---|---|

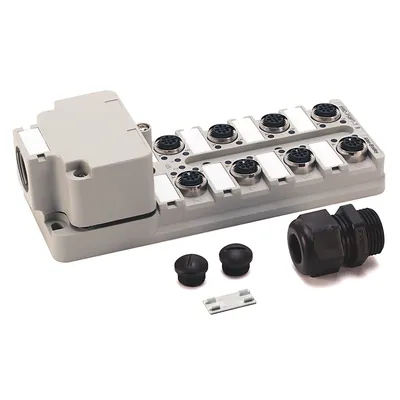

| 898D-P58PT-T | DC Micro (M12) | PNP LEDs | 5 Input Pins | 8 Input Ports | — |
| 898D-P58PT-B5 | DC Micro (M12) | PNP LEDs | 5 Input Pins | 8 Input Ports | 5m Cable (16.4 ft) Main Connection |

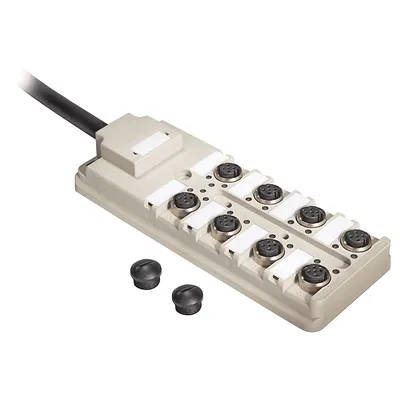

| 898D-P58PT-B10 | DC Micro (M12) | PNP LEDs | 5 Input Pins | 8 Input Ports | 10m Cable (32.8 ft) Main Connection |

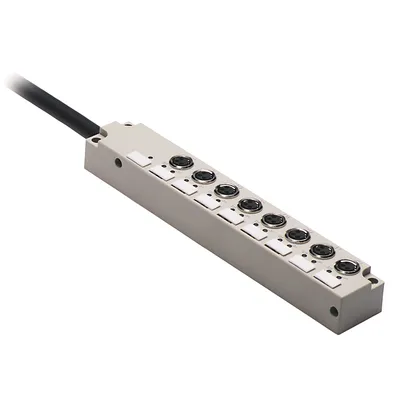

| 898P-P38PT-B10 | Pico (M8) | PNP LEDs | 3 Input Pins | 8 Input Ports | 10m Cable (32.8 ft) Main Connection |
| 898P-P310PT-B5 | Pico (M8) | PNP LEDs | 3 Input Pins | 10 Input Ports | 5m Cable (16.4 ft) Main Connection |
| 898H-58PT-B5 | IDC | No LEDs | 5 Input Pins | 8 Input Ports | 5m Cable (16.4 ft) Main Connection |
| 898D-P58DT-B5 | DC Micro (M12) | PNP LEDs | 5 Input Pins | 8 Input Ports | 5m Cable (16.4 ft) Main Connection |
| 898D-P58DT-B10 | DC Micro (M12) | PNP LEDs | 5 Input Pins | 8 Input Ports | 10m Cable (32.8 ft) Main Connection |

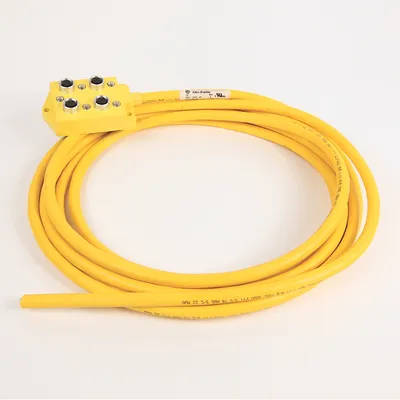

| 898D-P54PT-T | DC Micro (M12) | PNP LEDs | 5 Input Pins | 4 Input Ports | — |
| 898D-P54PT-B10 | DC Micro (M12) | PNP LEDs | 5 Input Pins | 4 Input Ports | 10m Cable (32.8 ft) Main Connection |
| 898D-P54DT-B5 | DC Micro (M12) | PNP LEDs | 5 Input Pins | 4 Input Ports | 5m Cable (16.4 ft) Main Connection |

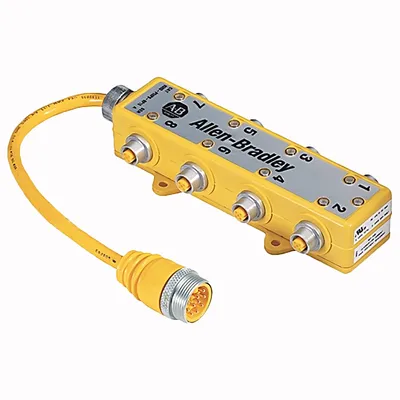

| 898D-N58PT-T | DC Micro (M12) | NPN LEDs | 5 Input Pins | 8 Input Ports | — |
| 898D-58PT-T | DC Micro (M12) | No LEDs | 5 Input Pins | 8 Input Ports | — |
| 898D-58PT-B10 | DC Micro (M12) | No LEDs | 5 Input Pins | 8 Input Ports | 10m Cable (32.8 ft) Main Connection |
| 898D-58DT-M19 | DC Micro (M12) | No LEDs | 5 Input Pins | 8 Input Ports | 19 Pin Male QD Pigtail Main Connection |
| 898D-58DT-B10 | DC Micro (M12) | No LEDs | 5 Input Pins | 8 Input Ports | 10m Cable (32.8 ft) Main Connection |
| 898D-54PT-T | DC Micro (M12) | No LEDs | 5 Input Pins | 4 Input Ports | — |

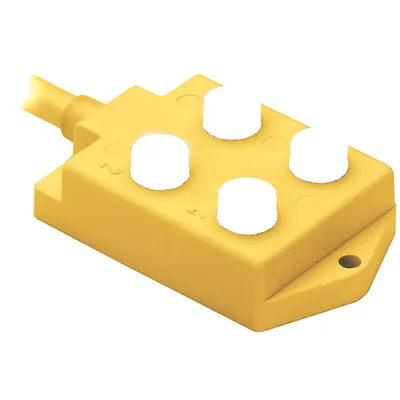

| 898D-54PT-M12 | DC Micro (M12) | No LEDs | 5 Input Pins | 4 Input Ports | 12 Pin Male QD Pigtail Main Connection |

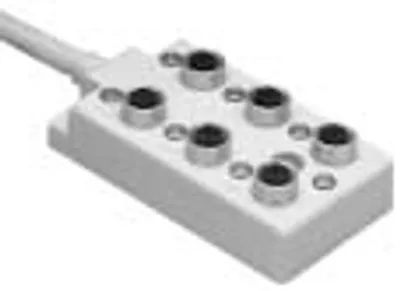

| 898D-N56PT-B5 | DC Micro (M12) | NPN LEDs | 5 Input Pins | 6 Input Ports | 5m Cable (16.4 ft) Main Connection |

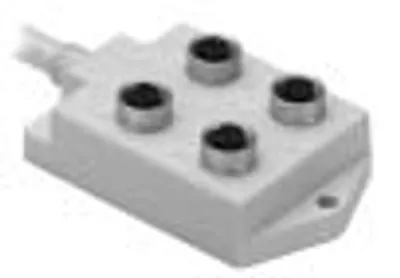

| 898D-N54PT-B5 | DC Micro (M12) | NPN LEDs | 5 Input Pins | 4 Input Ports | 5m Cable (16.4 ft) Main Connection |
| 898P-P36PT-D8 | Pico (M8) | PNP LEDs | 3 Input Pins | 6 Input Ports | 8 Pin Male QD Micro Main Connection |
| 898P-P34PT-D8 | Pico (M8) | PNP LEDs | 3 Input Pins | 4 Input Ports | 8 Pin Male QD Micro Main Connection |

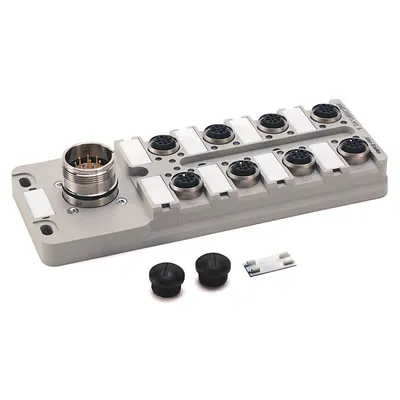

| 898D-P58PT-M12 | DC Micro (M12) | PNP LEDs | 5 Input Pins | 8 Input Ports | 12 Pin Male QD Pigtail Main Connection |

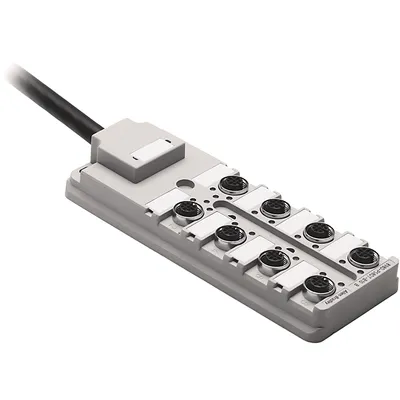

| 898D-P58DT-M19 | DC Micro (M12) | PNP LEDs | 5 Input Pins | 8 Input Ports | 19 Pin Male QD Pigtail Main Connection |
Common to all listed parts
| Hardware Material | Standard |
| Port Orientation | Ports on top of box |
