AC Micro Cordsets and Patchcords Parts
Allen-Bradley
889M-F12AHMU-5
Allen-Bradley
889M-F12AHMU-3
Allen-Bradley
889M-F12AHMU-0M3
Allen-Bradley
889M-F11RMMM-20
Allen-Bradley
889M-F11RM-10
Compare AC Micro Cordsets and Patchcords
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Female End Termination | Male End Termination | Cable Type | Wire Size | Standard or Build-to-Order Cable Length |
|---|---|---|---|---|---|
| 889N-F4AEC-6F | Mini/Mini Plus | Cable | PVC Cable, Yellow, Unshielded | 18AWG | 6 feet (1.83 meters) |
| 889N-F4AFA-6F | Mini/Mini Plus | Cable | PVC Cable, Yellow, Unshielded | 16AWG | 6 feet (1.83 meters) |
| 889N-F4AE-6F | Mini/Mini Plus | Cable | PVC Cable, Yellow, Unshielded | 18AWG | 6 feet (1.83 meters) |
| 889N-F4AENE-2 | Mini/Mini Plus | Mini/Mini Plus | PVC Cable, Yellow, Unshielded | 18AWG | 2 meters (6.56 feet) |
| 889N-F4AF-6F | Mini/Mini Plus | Cable | PVC Cable, Yellow, Unshielded | 16AWG | 6 feet (1.83 meters) |
| 889M-F12AHMU-5 | M23 | M23 | PVC Cable, Yellow, Unshielded | 18AWG one twisted pair | 5 meters (16.4 feet) |
| 889M-F12AHMU-3 | M23 | M23 | PVC Cable, Yellow, Unshielded | 18AWG one twisted pair | 3 meters (9.84 feet) |
| 889M-F12AHMU-0M3 | M23 | M23 | PVC Cable, Yellow, Unshielded | 18AWG one twisted pair | 0.3 meters (0.984 feet) |
| 889M-F11RMMM-20 | M23 | M23 | PUR Cable, Black, Unshielded | 3/18 & rest/22AWG | 20 meters (65.6 feet) |
| 889M-F11RM-10 | M23 | Cable | PUR Cable, Black, Unshielded | 3/18 & rest/22AWG | 10 meters (32.8 feet) |

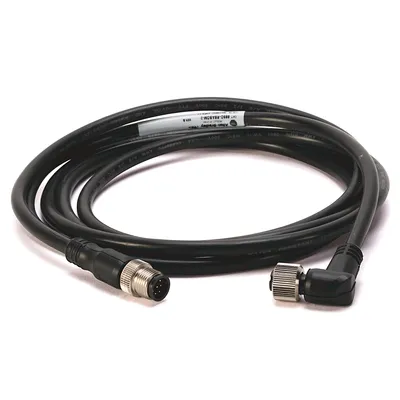

| 889D-R8ABDM-5 | DC Micro (M12) | DC Micro (M12) | PVC Cable, Black, Unshielded | 24AWG | 5 meters (16.4 feet) |
| 889D-R8ABDE-2 | DC Micro (M12) | DC Micro (M12) | PVC Cable, Black, Unshielded | 24AWG | 2 meters (6.56 feet) |
| 889D-R5NC-1 | DC Micro (M12) | Cable | PVC Cable, Red, Unshielded | 22AWG | Build-to-Order Cable Length |

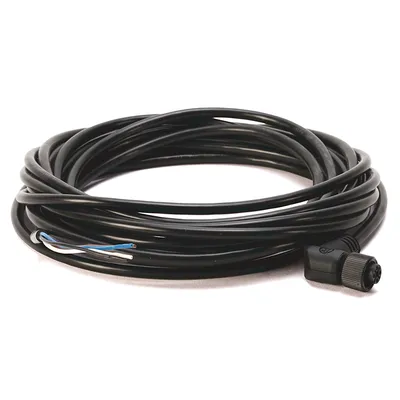

| 889D-R4GC-2 | DC Micro (M12) | Cable | PVC Cable, Grey, Unshielded | 22AWG | 2 meters (6.56 feet) |
| 889D-R4FCDE-2 | DC Micro (M12) | DC Micro (M12) | PVC Cable, Yellow, Foil Shield w/Braid | 22AWG | 2 meters (6.56 feet) |
| 889D-R4BCDE-2 | DC Micro (M12) | DC Micro (M12) | PVC Cable, Black, Unshielded | 22AWG | 2 meters (6.56 feet) |
| 889D-F3UEDM-2 | DC Micro (M12) | DC Micro (M12) | PUR Cable, Yellow, Unshielded | 18AWG | 2 meters (6.56 feet) |
| 889D-M5GC-2 | Cable | DC Micro (M12) | PVC Cable, Grey, Unshielded | 22AWG | 2 meters (6.56 feet) |
| 889D-P3ACDM-2 | DC Micro (M12) | DC Micro (M12) | PVC Cable, Yellow, Unshielded | 22AWG | 2 meters (6.56 feet) |

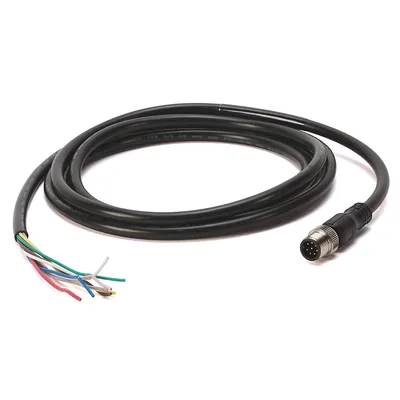

| 889D-M8FB-2 | Cable | DC Micro (M12) | PVC Cable, Black, Foil Shield w/Braid | 24AWG | 2 meters (6.56 feet) |
| 889D-R2AEN4M-D2 | DC Micro (M12) | Mini/Mini Plus | PVC Cable, Yellow, Unshielded | 18AWG | 2 meters (6.56 feet) |
| 889R-F4AERM-2 | AC Micro (Dual Key) | AC Micro (Dual Key) | PVC Cable, Yellow, Unshielded | 18AWG | 2 meters (6.56 feet) |
| 889R-F3WEC-2 | AC Micro (Dual Key) | Cable | ToughWeld Cable, Unshielded | 18AWG | 2 meters (6.56 feet) |
