AC Micro Cordsets and Patchcords Parts
Allen-Bradley

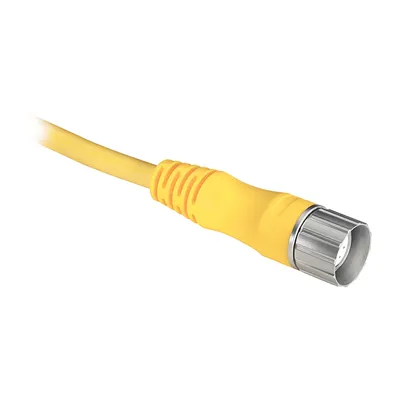

889M-R12AH-10
Allen-Bradley

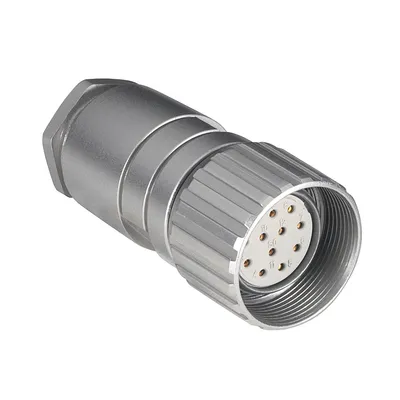

889M-M12AH-10
Allen-Bradley
889M-FX9AEMU-10
Allen-Bradley
889M-FX9AEMM-5
Allen-Bradley
889M-FX9AEMM-10
Allen-Bradley
889M-FX9AE-5
Allen-Bradley
889M-FX9AE-30
Allen-Bradley
889M-FX9AE-20
Allen-Bradley
889M-FX9AE-2
Allen-Bradley

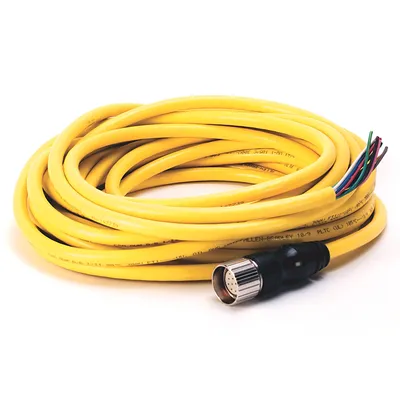

889M-FX9AE-15
Compare AC Micro Cordsets and Patchcords
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Female End Termination | Number of Pins | Male End Termination | Wire Size | Standard or Build-to-Order Cable Length |
|---|---|---|---|---|---|

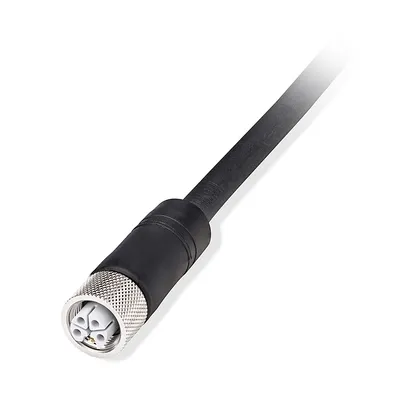

| 889L-R5JF-5 | M12 Power L-Code | 5-Pin | M12 Power L-Code | 16AWG | 5 meters (16.4 feet) |
| 889M-R12AH-10 | M23 | Same as Female End | Cable | 18AWG one twisted pair | 10 meters (32.8 feet) |
| 889M-M12AH-10 | Cable | 12-Pin | M23 | 18AWG one twisted pair | 10 meters (32.8 feet) |
| 889M-FX9AEMU-10 | M23 | Same as Female End | M23 | 18AWG | 10 meters (32.8 feet) |
| 889M-FX9AEMM-5 | M23 | Same as Female End | M23 | 18AWG | 5 meters (16.4 feet) |
| 889M-FX9AEMM-10 | M23 | Same as Female End | M23 | 18AWG | 10 meters (32.8 feet) |
| 889M-FX9AE-5 | M23 | Same as Female End | Cable | 18AWG | 5 meters (16.4 feet) |
| 889M-FX9AE-30 | M23 | Same as Female End | Cable | 18AWG | 30 meters (98.4 feet) |
| 889M-FX9AE-20 | M23 | Same as Female End | Cable | 18AWG | 20 meters (65.6 feet) |
| 889M-FX9AE-2 | M23 | Same as Female End | Cable | 18AWG | 2 meters (6.56 feet) |
| 889M-FX9AE-15 | M23 | Same as Female End | Cable | 18AWG | 15 meters (49.2 feet) |
| 889D-F8AC-2 | DC Micro (M12) | Same as Female End | Cable | 22AWG | 2 meters (6.56 feet) |
| 889L-R5JF-2 | M12 Power L-Code | 5-Pin | M12 Power L-Code | 16AWG | 2 meters (6.56 feet) |
| 889D-R5AC-2 | DC Micro (M12) | Same as Female End | Cable | 22AWG | 2 meters (6.56 feet) |
| 889D-R4WEDM-2 | DC Micro (M12) | Same as Female End | DC Micro (M12) | 18AWG | 2 meters (6.56 feet) |
| 889D-R4ABP3M-2 | DC Micro (M12) | 3-Pin | Pico (M8) | 24AWG | 2 meters (6.56 feet) |
| 889NS-F4AENM-3 | Mini/Mini Plus | Same as Female End | Mini/Mini Plus | 18AWG | Build-to-Order Cable Length |
| 889NS-F4AENM-10 | Mini/Mini Plus | Same as Female End | Mini/Mini Plus | 18AWG | 10 meters (32.8 feet) |
| 889NS-F4AENM-1 | Mini/Mini Plus | Same as Female End | Mini/Mini Plus | 18AWG | Build-to-Order Cable Length |
| 889NS-F4AE-33F | Mini/Mini Plus | Same as Female End | Cable | 18AWG | Build-to-Order Cable Length |
| 889NS-F3AFNV-12F | Mini/Mini Plus | Same as Female End | Mini/Mini Plus | 16AWG | 12 feet (3.66 meters) |
| 889NS-F3AFNU-6F | Mini/Mini Plus | Same as Female End | Mini/Mini Plus | 16AWG | 6 feet (1.83 meters) |
| 889NS-F3AFC-6F | Mini/Mini Plus | Same as Female End | Cable | 16AWG | 6 feet (1.83 meters) |
| 889NS-F3AEC-20F | Mini/Mini Plus | Same as Female End | Cable | 18AWG | 20 feet (6.1 meters) |
Common to all listed parts
| Special Characteristics | Standard |
