1442 Series Parts
Compare 1442 Series
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Probe Diameter/Range | Body Length | Thread | Cable Length | Armored Cable Option |
|---|---|---|---|---|---|
| 1442-PS-0515M0010N | 5 mm / 2 mm(80 mils) | 150 mm | Metric M8x1 thread | 1 Meter | No Armor |
| 1442-PS-0805M0005N | 8 mm / 2 mm (80 mils) | 50 mm | Metric M10x1 thread | 0.5 Meter | No Armor |
| 1442-PS-0809M0005A | 8 mm / 2 mm (80 mils) | 90 mm | Metric M10x1 thread | 0.5 Meter | Armored Cable |
| 1442-PS-0509M0010N | 5 mm / 2 mm(80 mils) | 90 mm | Metric M8x1 thread | 1 Meter | No Armor |
| 1442-PS-0507M0010N | 5 mm / 2 mm(80 mils) | 70 mm | Metric M8x1 thread | 1 Meter | No Armor |
| 1442-PS-0820E0005N | 8 mm / 2 mm (80 mils) | 2.0 inches | English UNF threads 3/8-24 thread | 0.5 Meter | No Armor |
| 1442-PS-0816E0005N | 8 mm / 2 mm (80 mils) | 1.6 inches | English UNF threads 3/8-24 thread | 0.5 Meter | No Armor |
| 1442-PS-0815M0005N | 8 mm / 2 mm (80 mils) | 150 mm | Metric M10x1 thread | 0.5 Meter | No Armor |
| 1442-PS-0812M0005N | 8 mm / 2 mm (80 mils) | 120 mm | Metric M10x1 thread | 0.5 Meter | No Armor |
| 1442-PS-0840E0005A | 8 mm / 2 mm (80 mils) | 4.0 inches | English UNF threads 3/8-24 thread | 0.5 Meter | Armored Cable |
| 1442-PS-5020E0010A | 50 mm / 26 mm(1024 mils) | 2.0 inches | English UNF threads 1-12 thread | 1 Meter | Armored Cable |
| 1442-PS-0550E0010N | 5 mm / 2 mm(80 mils) | 5.0 inches | English UNF threads 1/4-28 thread | 1 Meter | No Armor |

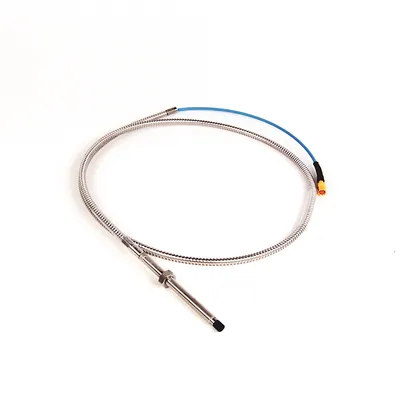

| 1442-PS-0550E0010A | 5 mm / 2 mm(80 mils) | 5.0 inches | English UNF threads 1/4-28 thread | 1 Meter | Armored Cable |
| 1442-PS-0860E0005A | 8 mm / 2 mm (80 mils) | 6.0 inches | English UNF threads 3/8-24 thread | 0.5 Meter | Armored Cable |
| 1442-PS-0850E0005N | 8 mm / 2 mm (80 mils) | 5.0 inches | English UNF threads 3/8-24 thread | 0.5 Meter | No Armor |
| 1442-PS-0850E0005A | 8 mm / 2 mm (80 mils) | 5.0 inches | English UNF threads 3/8-24 thread | 0.5 Meter | Armored Cable |

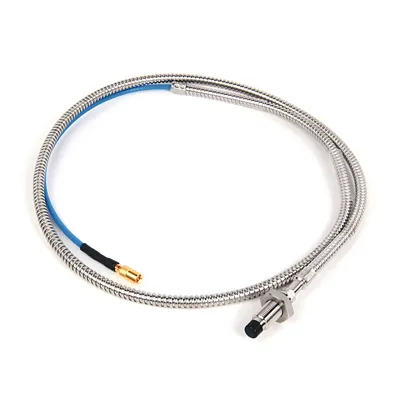

| 1442-PS-0840E0005N | 8 mm / 2 mm (80 mils) | 4.0 inches | English UNF threads 3/8-24 thread | 0.5 Meter | No Armor |

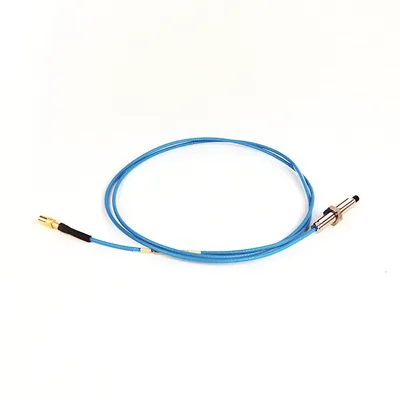

| 1442-PS-0516E0010N | 5 mm / 2 mm(80 mils) | 1.6 inches | English UNF threads 1/4-28 thread | 1 Meter | No Armor |
| 1442-PS-0509M0010A | 5 mm / 2 mm(80 mils) | 90 mm | Metric M8x1 thread | 1 Meter | Armored Cable |
| 1442-PS-0507M0010A | 5 mm / 2 mm(80 mils) | 70 mm | Metric M8x1 thread | 1 Meter | Armored Cable |
| 1442-PS-0505M0010A | 5 mm / 2 mm(80 mils) | 50 mm | Metric M8x1 thread | 1 Meter | Armored Cable |
Common to all listed parts
| Probe Type | Standard Mount Probe |
| Unthreaded Length | Standard mount probes with a specified unthreaded length are not available. |
