Wireless Inductive System (WIS) Parts
Compare Wireless Inductive System (WIS)
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Installation | Degree of protection | MTTFd |
|---|---|---|---|---|

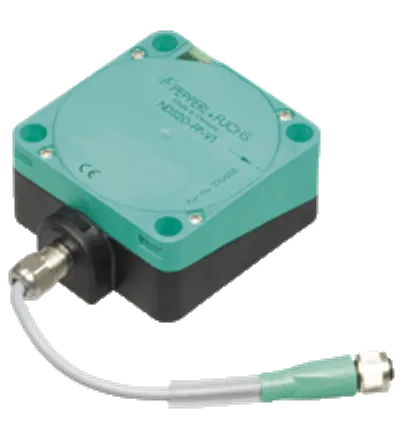

| NDS20-FP-V1 | 210658 | non-flush | IP67 | — |

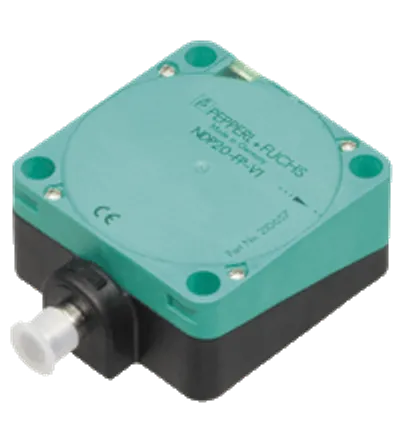

| NDP20-FP-V1 | 210657 | non-flush | IP67 | — |

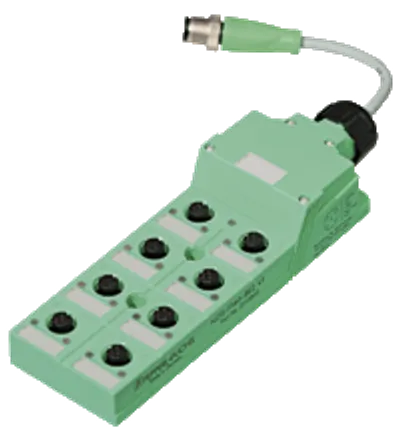

| NDS-F146-8E2-V1 | 200663 | screw mounting | IP65 | 465 a |

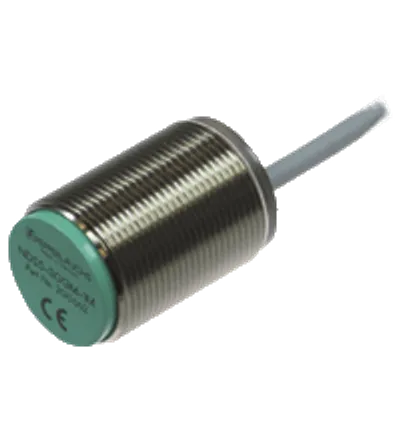

| NDS5-30GM-1M-V1 | 200662 | non-flush | IP67 | 37485 a |
| NDP5-30GM-5M | 200661 | non-flush | IP67 | 31930 a |

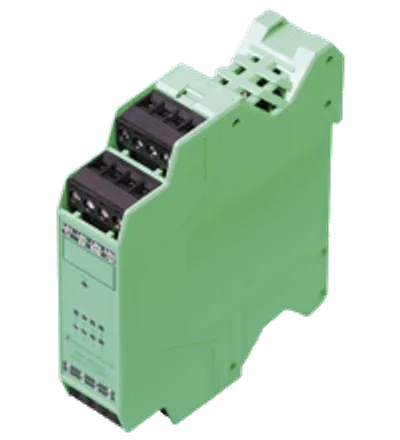

| NDP-KE2-8E2 | 200660 | DIN rail mounting | IP20 | 245 a |
| NDP-KE2-8E2-FP | 221418 | DIN rail mounting | IP20 | 245 a |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| Ambient temperature | 0 ... 50 °C (32 ... 122 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Note | Maximum cable length between WIS module and WIS transmitter must not exceed 5 m. |
