SITOP UPS1600 DC UPS modules Parts
Compare SITOP UPS1600 DC UPS modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the interface | MTBF at 40 °C | global warming potential [CO2 eq] — total | global warming potential [CO2 eq] — during manufacturing | global warming potential [CO2 eq] — after end of life |
|---|---|---|---|---|---|

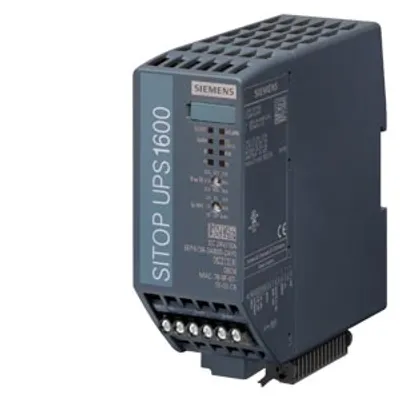

| 6EP4134-3AB00-2AY0 | Ethernet/PROFINET | 349 874 h | 196 kg | 18 kg | 0.33 kg |

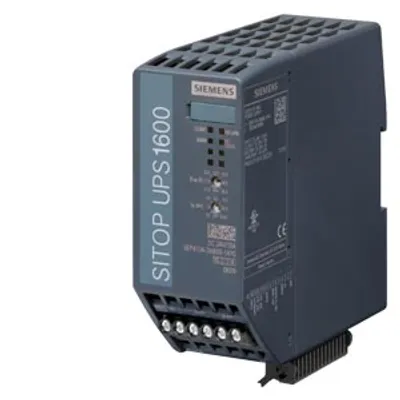

| 6EP4134-3AB00-1AY0 | USB | 364 153 h | 169 kg | 16.4 kg | 0.3 kg |
| 6EP4134-3AB00-0AY0 | without | 415 574 h | 168.1 kg | 15.6 kg | 0.29 kg |
Common to all listed parts
| product type designation | UPS1600 |
| type of current supply | DC UPS 24 V/10 A |
| voltage curve at input | DC |
| supply voltage at DC rated value | 24 V |
| input voltage at DC | 21 ... 29 V |
| adjustable response value voltage for buffer connection preset | 21.5 V |
| input current at rated input voltage 24 V rated value | 14 A; for max. charging current (3 A) |
| type of energy storage | with batteries |
