IRB 1100 Parts
Compare IRB 1100
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Invoice Description | Customs Tariff Number | Product Net Weight | Gross Weight | Product Name |
|---|---|---|---|---|---|

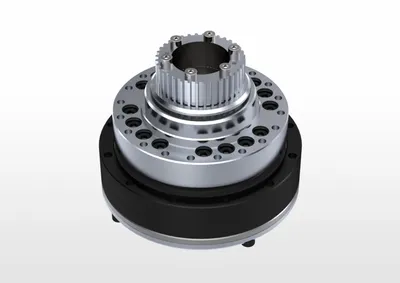

| 3HAC073519-001 | Gear unit, A4, HS | 84834090 | 1 kg kg | 1.5 kg kg | Gear unit, A4, HS |

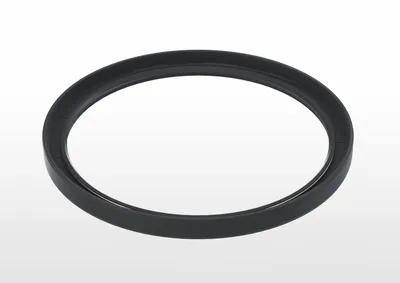

| 3HAC070148-005 | Radial sealing | 40169300 | 0.24 kg kg | 0.26 kg kg | Radial sealing |

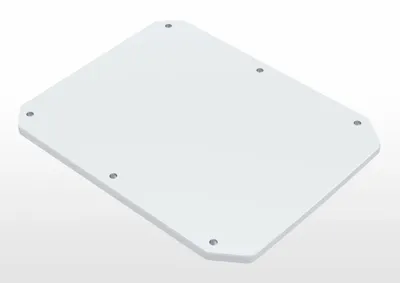

| 3HAC070312-001 | Rear plate | 84799070 | 0.5 kg kg | 0.6 kg kg | Rear plate |

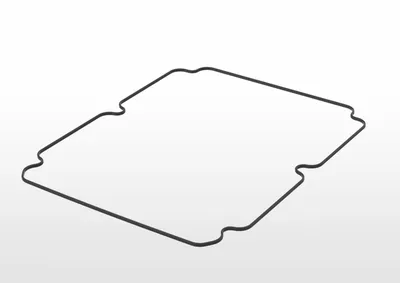

| 3HAC065350-001 | Gasket, Foot cover | 40169300 | 0 kg kg | 0 kg kg | Gasket, Foot cover |

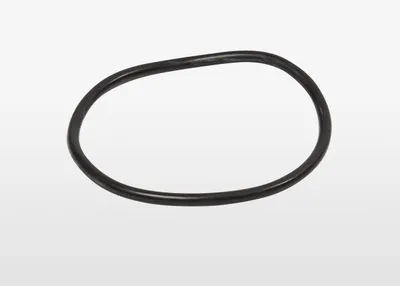

| 3HAB3772-115 | O-ring | 40169300 | 0 kg kg | 0 kg kg | O-ring |

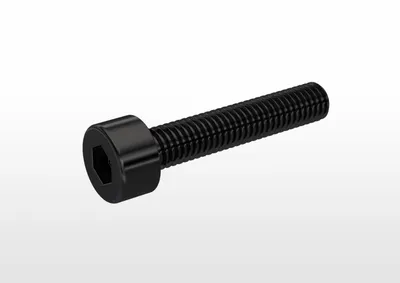

| 3HAB3409-208 | Hex socket head cap screw | 73181562 | 0 kg kg | 0 kg kg | Hex socket head cap screw |

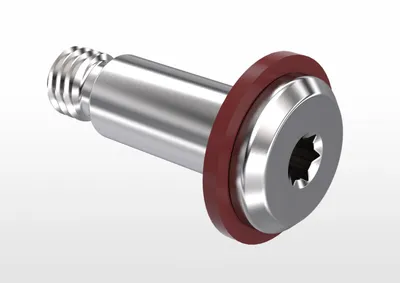

| 3HAC059557-001 | Calibration hex head plug, 6 mm mm | 73181562 | 0.3 kg kg | 0.5 kg kg | Calibration hex head plug, 6 mm mm |
| 3HAB3772-19 | O-ring | 40169300 | 0.006 kg kg | 0.006 kg kg | O-ring |
| 3HAB3772-143 | O-ring | 40169300 | 0.002 kg kg | 0.002 kg kg | O-ring |

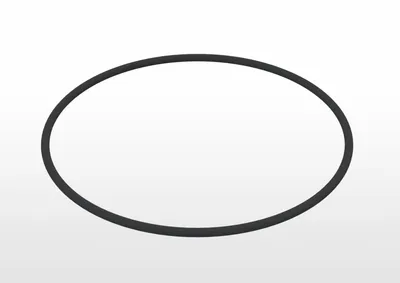

| 3HAB3772-182 | O-ring | 40169300 | 0.002 kg kg | 0.002 kg kg | O-ring |

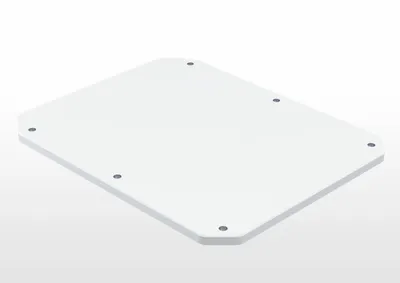

| 3HAC075513-001 | Rear plate,CR | 84799070 | 0.5 kg kg | 1 kg kg | Rear plate,CR |

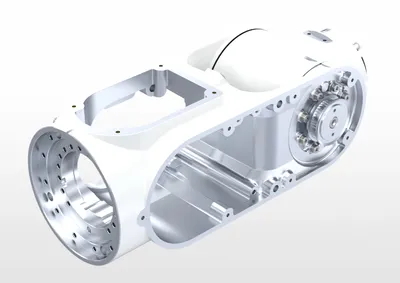

| 3HAC075512-001 | Wrist, CR | 84249080 | 2.5 kg kg | 3 kg kg | Wrist, CR |

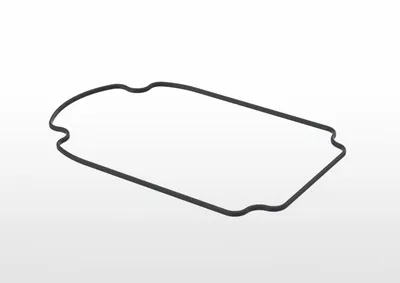

| 3HAC065352-001 | Gasket, Process hub | 40169300 | 0 kg kg | 0 kg kg | Gasket, Process hub |

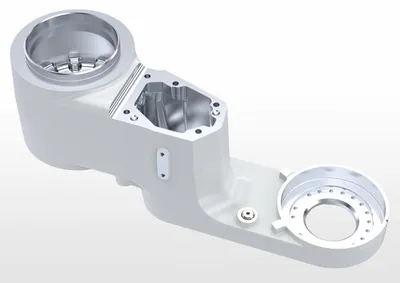

| 3HAC069055-001 | Lower arm, short, with bushing | 84799070 | 1.5 kg kg | 2 kg kg | Lower arm, short, with bushing |
| 3HAC065331-001 | Gasket, Lower arm support | 40169300 | 0 kg kg | 0 kg kg | Gasket, Lower arm support |

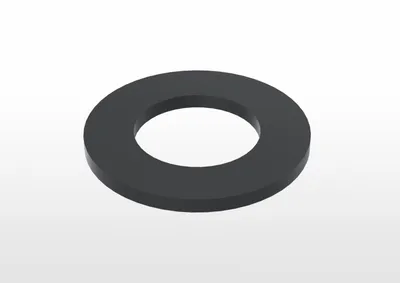

| 3HAC064147-001 | Rubber sealing washer | 40169300 | 0.002 kg kg | 0.002 kg kg | Rubber sealing washer |

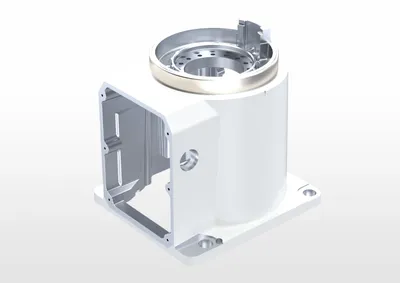

| 3HAC075488-001 | Base with sealing ring CR | 84799070 | 2 kg kg | 2.5 kg kg | Base with sealing ring CR |

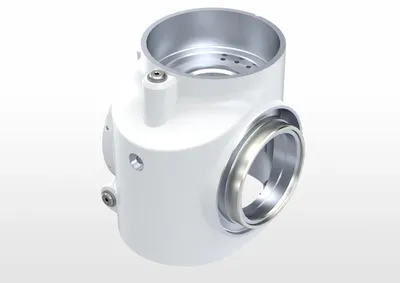

| 3HAC075489-001 | Housing with sealing ring CR | 84799070 | 1.5 kg kg | 2 kg kg | Housing with sealing ring CR |

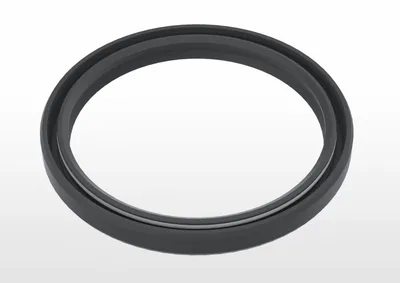

| 3HAB3701-57 | Radial seals w. dust lip w | 84842000 | 0.034 kg kg | 0.034 kg kg | Radial seals w. dust lip w |

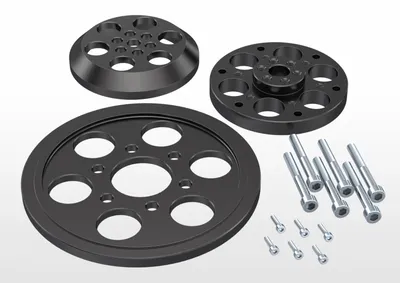

| 3HAC074609-001 | IRB1100 radial seal service tool kits | 84678900 | 0.5 kg kg | 0.55 kg kg | IRB1100 radial seal service tool ki |

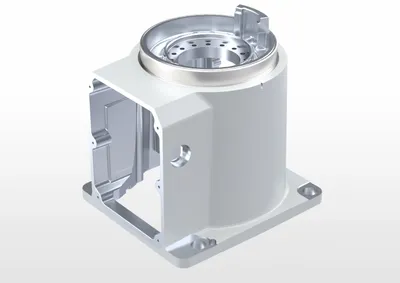

| 3HAC074270-001 | Base with sealing ring | 84799070 | 2 kg kg | 2.5 kg kg | Base with sealing ring |

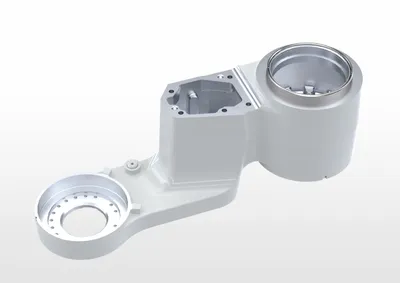

| 3HAC074271-001 | Lower arm short with sealing ring | 84799070 | 1.5 kg kg | 2 kg kg | Lower arm short with sealing ring |

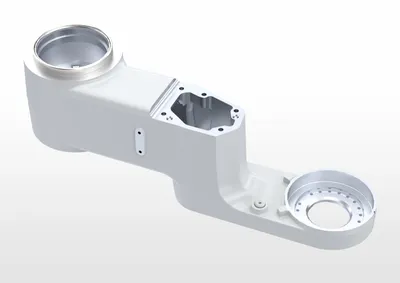

| 3HAC074273-001 | Lower arm long with sealing ring | 84799070 | 2 kg kg | 3 kg kg | Lower arm long with sealing ring |

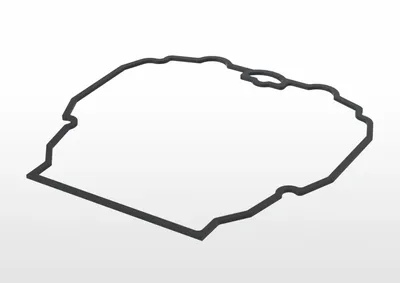

| 3HAC065345-001 | Gasket, Bottom plate | 40169300 | 0 kg kg | 0 kg kg | Gasket, Bottom plate |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Selling Unit of Measure | piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Made To Order | No |
| Part Type | New |
| WEEE Category | Product Not in WEEE Scope |
