ABB
3HAB3772-81IRB 1520ID Parts
Compare IRB 1520ID
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Invoice Description | Product Net Weight | Gross Weight | Product Net Depth / Length | Product Name |
|---|---|---|---|---|---|

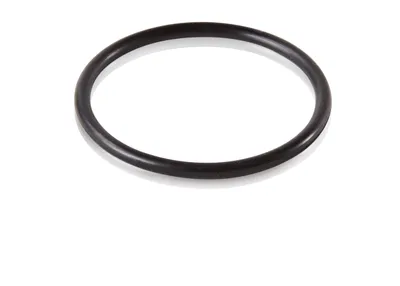

| 3HAB3772-81 | O-ring, | 0.003 kg kg | 0.003 kg kg | 50 mm mm | O-ring, |
| 3HAC021799-003 | Motor w. pinion w | 1.5 kg kg | 1.8 kg kg | — | Motor w. pinion w |

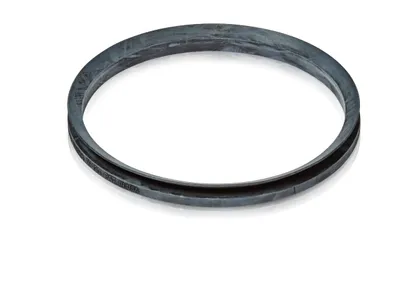

| 3HAB3732-25 | V-Ring V-130A V | 0.02 kg kg | 0.02 kg kg | 130 mm mm | V-Ring V-130A V |
| 3HAC17342-1 | Rot ac motor M20 type B | 1.1 kg kg | 1.1 kg kg | 181.5 mm mm | Rot ac motor M20 type B |
| 3HAC4050-1 | Signal cable SMB | 0.14 kg kg | 0.15 kg kg | 700 mm mm | Signal cable SMB |

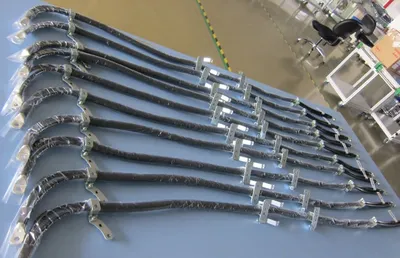

| 3HAC039047-001 | Welding Lower Arm Cable | 2.159 kg kg | 2.159 kg kg | — | Welding Lower Arm Cable |

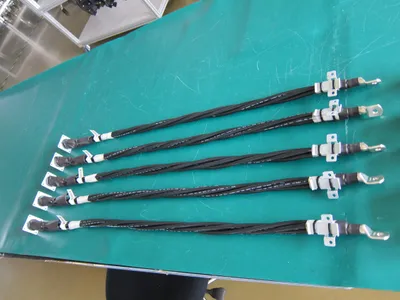

| 3HAC039521-001 | Welding Base Cable Harness | 1.605 kg kg | 1.605 kg kg | — | Welding Base Cable Harness |

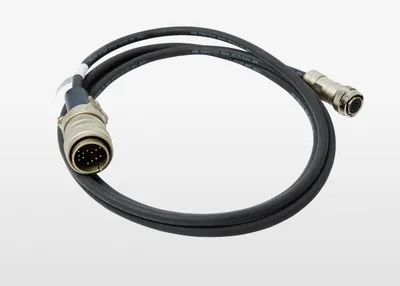

| 3HAC039523-001 | Welding signal Floor Cable(3M) | 0.74 kg kg | 0.74 kg kg | 3000 mm mm | Welding signal Floor Cable(3M) |

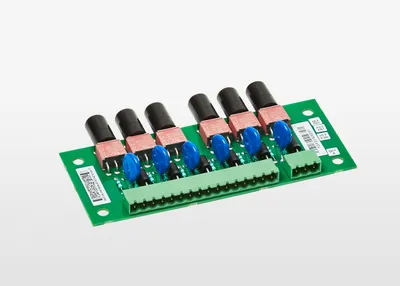

| 3HAC064944-001 | Brake Rel. Board DSQC1054 | 0.15 kg kg | 0.15 kg kg | 140 mm mm | Brake Rel. Board DSQC1054 |

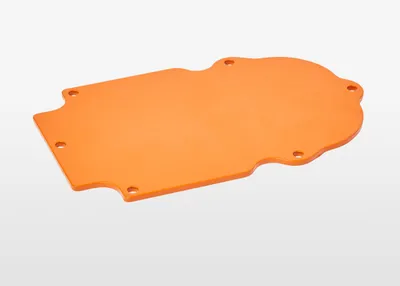

| 3HAC041565-001 | Axis 1&2 motor cover | 0.36 kg kg | 0.36 kg kg | 170 mm mm | Axis 1&2 motor cover |

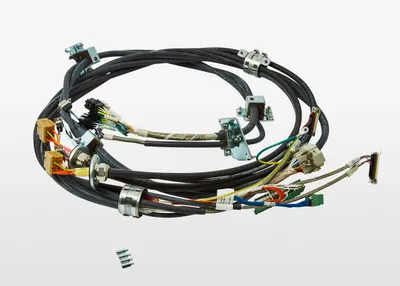

| 3HAC039515-001 | Cableharness, standard | 3.06 kg kg | 3.06 kg kg | 3200 mm mm | Cableharness, standard |

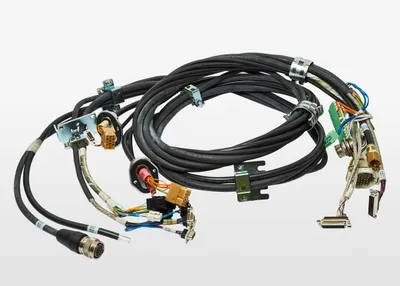

| 3HAC039514-001 | Cableharness, AW | 3.88 kg kg | 3.88 kg kg | 3200 mm mm | Cableharness, AW |

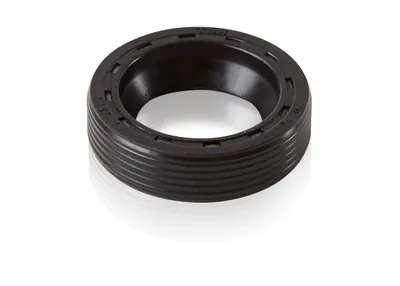

| 3HAB3702-23 | Sealing ring not dust lip | 0.005 kg kg | 0.005 kg kg | 26 mm mm | Sealing ring not dust lip |
| 3HAC027716-001 | Wrist , 1600ID spare | 6.44 kg kg | 6.44 kg kg | 351 mm mm | Wrist , 1600ID spare |

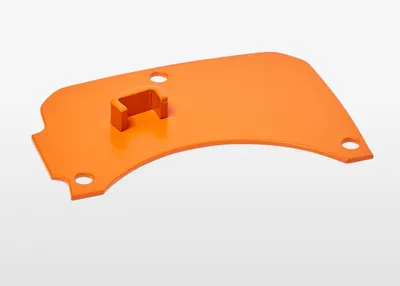

| 3HAC027877-001 | Cover upper arm tube, spare | 0.14 kg kg | 0.14 kg kg | 125 mm mm | Cover upper arm tube, spare |
| 3HAC041525-001 | Base | 100 kg kg | 100 kg kg | — | Base |

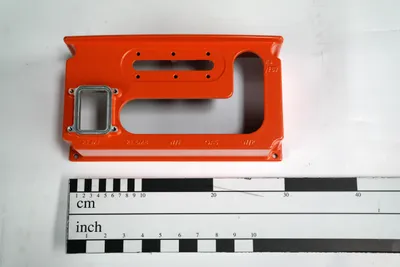

| 3HAC041523-001 | Base cover incl. gasket | 10 kg kg | 11 kg kg | — | Base cover incl. gasket |

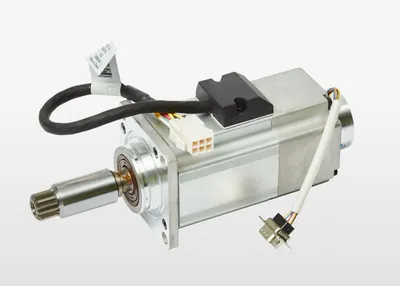

| 3HAC041749-001 | Motor&Pinion axis 3 with O-ring | 1.76 kg kg | 1.76 kg kg | 200 mm mm | Motor&Pinion axis 3 with O-ring |
| 3HAC041422-001 | Calibration tool kit | 0.68 kg kg | 0.68 kg kg | 70 mm mm | Calibration tool kit |

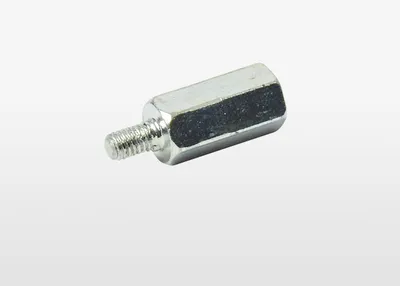

| 3HAC14845-3 | Distance screw | 0.002 kg kg | 0.002 kg kg | 16 mm mm | Distance screw |

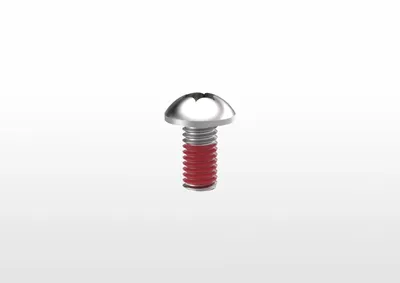

| 3HAC080811-001 | Torx pan head screw,M6-12,Glued | 0.005 kg kg | 0.005 kg kg | 12 mm mm | Torx pan head screw,M6-12,Glued |

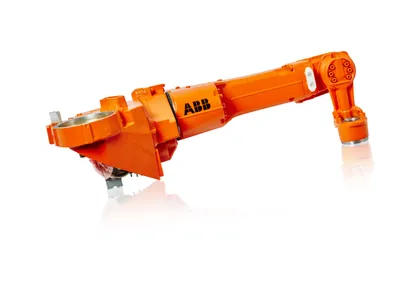

| 3HAC041534-001 | Upper arm | 26.4 kg kg | 26.4 kg kg | 900 mm mm | Upper arm |

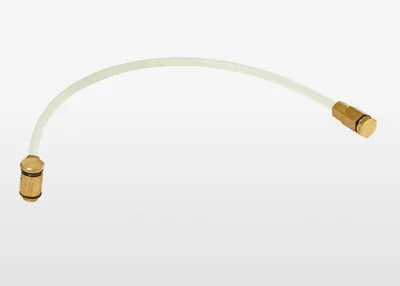

| 3HAC041258-001 | Drain oil assembly | 0.12 kg kg | 0.12 kg kg | 485 mm mm | Drain oil assembly |
| 3HAB3772-105 | O-ring | 0.004 kg kg | 0.004 kg kg | 130 mm mm | O-ring |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Selling Unit of Measure | piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Made To Order | No |
| Part Type | New |
| WEEE Category | Product Not in WEEE Scope |
