Compare IRB 1010
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Invoice Description | Product Net Depth / Length | Product Net Height | Product Net Width | Product Name |
|---|
| 3HAC082535-003 | Axis 4 sealing tool | 69.5 mm mm | 25 mm mm | 69.5 mm mm | Axis 4 sealing tool |

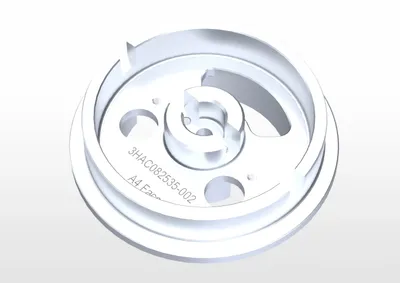

| 3HAC082535-002 | Sealing press tool | 102 mm mm | 36 mm mm | 102 mm mm | Sealing press tool |

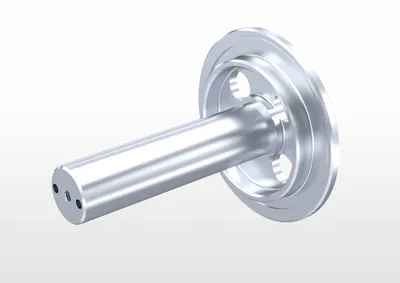

| 3HAC082535-001 | Axis 2 sealing tool | 121.5 mm mm | 102 mm mm | 102 mm mm | Axis 2 sealing tool |

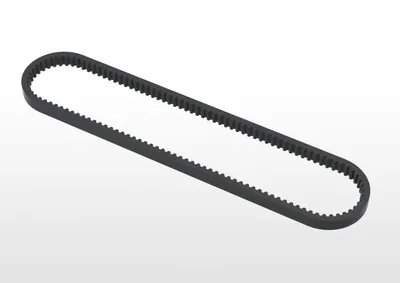

| 3HAC065788-001 | Timing belt | — | — | — | Timing belt |
| 3HAC082450-001 | Hub with C1&Air | — | — | — | Hub with C1&Air |
| 3HAC076888-001 | Radial Seal, 84.5x96x5 | 96 mm mm | 5 mm mm | 84.5 mm mm | Radial Seal, 84.5x96x5 |
| 3HAC076884-001 | Main cable harness_basic | — | — | — | Main cable harness_basic |
| 3HAC075714-001 | belt | 136.57 mm mm | 4 mm mm | 42.11 mm mm | belt |
| 3HAC076804-001 | A6 bushing screw | 12 mm mm | 7 mm mm | 4 mm mm | A6 bushing screw |
| 3HAC078561-001 | Plastic Cover | 103 mm mm | 75 mm mm | 26 mm mm | Plastic Cover |
| 3HAC078560-001 | Ax1 plastic cover | 105 mm mm | 65 mm mm | 105 mm mm | Ax1 plastic cover |
| 3HAC078562-001 | Plastic Cover | 157 mm mm | 64 mm mm | 71.5 mm mm | Plastic Cover |
| 3HAC076792-001 | Calibration pin | 14.7 mm mm | 5 mm mm | 5 mm mm | Calibration pin |
| 3HAC076795-001 | Radial Seal, 80x87x5 | 87 mm mm | 5 mm mm | 80 mm mm | Radial Seal, 80x87x5 |
| 3HAC075565-001 | Plastic cover | 87.2 mm mm | 60.9 mm mm | 87.2 mm mm | Plastic cover |
| 9ADA762-6 | Plain washer | 11 mm mm | 1.6 mm mm | 6.4 mm mm | Plain washer |
| 3HAC082579-001 | Motor&Pulley, Ax3 | 106.4 mm mm | 65 mm mm | 85 mm mm | Motor&Pulley, Ax3 |
| 3HAC082448-001 | SMB cover | 113.49 mm mm | 24.5 mm mm | 94.49 mm mm | SMB cover |
| 3HAC082445-001 | A4 cover | 95 mm mm | 20.5 mm mm | 95 mm mm | A4 cover |
| 3HAC082442-001 | A6 cover | 76 mm mm | 24.75 mm mm | 63 mm mm | A6 cover |
| 3HAC082643-001 | A1 drive unit | 227.5 mm mm | 138 mm mm | 147.24 mm mm | A1 drive unit |
| 3HAC082443-001 | Tilt cover | 161.99 mm mm | 9.5 mm mm | 72.99 mm mm | Tilt cover |
| 3HAC082449-001 | Hub basic | 68.1 mm mm | 16.48 mm mm | 47.75 mm mm | Hub basic |
| 3HAC082447-001 | A3 cover R | 275.5 mm mm | 11.5 mm mm | 126.5 mm mm | A3 cover R |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Selling Unit of Measure | piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Made To Order | No |
| Part Type | New |
| WEEE Category | Product Not in WEEE Scope |
| Frame Size | Undefined |
