IRB 460 Parts
Compare IRB 460
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Invoice Description | Product Net Weight | Gross Weight | Product Name | Product Net Height |
|---|---|---|---|---|---|

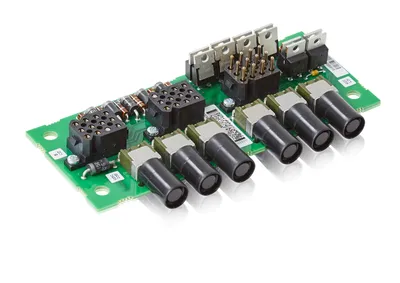

| 3HAC16035-1 | DSQC 563 Brake release board | 0.14 kg kg | 0.14 kg kg | DSQC 563 Brake release board | — |
| 3HAB3702-29 | Radial Sealing | 0.03 kg kg | 0.03 kg kg | Radial Sealing | 8 mm mm |
| 3HAC044168-001 | RMU101 | 0.307 kg kg | 0.307 kg kg | RMU101 | 29.5 mm mm |
| 3HAA2167-19 | Spherical roller bearing | 0.606 kg kg | 0.606 kg kg | Spherical roller bearing | — |

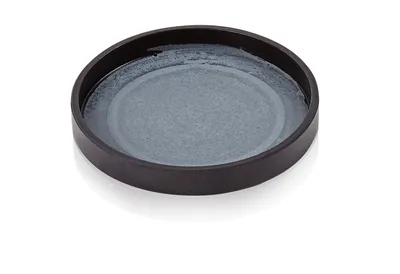

| 3HAA2166-28 | VK-Cover | 0.1 kg kg | 0.1 kg kg | VK-Cover | 12 mm mm |
| 3HAB3772-97 | O-ring | 0.002 kg kg | 0.002 kg kg | O-ring | 3.6 mm mm |
| 3HAC057980-006 | Motor incl pinion | 10.1 kg kg | 10.1 kg kg | Motor incl pinion | 130 mm mm |
| 3HAC11581-4 | Oil seal for "Pipe" (RV-320C-191,35) | 0.176 kg kg | 0.176 kg kg | Oil seal for "Pipe" (RV-320C-191,35 | 14 mm mm |
| 3HAB3732-19 | Sealing ring (V-ring) V | 0.02 kg kg | 0.02 kg kg | Sealing ring (V-ring) V | 11 mm mm |
| 3HAC047450-001 | sleeve | 0.155 kg kg | 0.155 kg kg | sleeve | — |

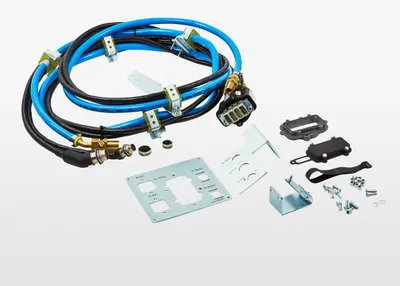

| 3HAC040447-001 | Customer Cable Harness,CP/CS/CBUS spare | 9 kg kg | 9 kg kg | Customer Cable Harness,CP/CS/CBUS s | — |

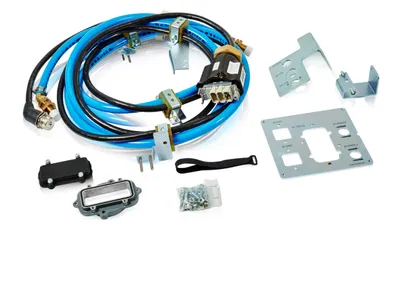

| 3HAC040449-001 | Customer Cable Harness,CP/CS spare | 5.8 kg kg | 5.8 kg kg | Customer Cable Harness,CP/CS spare | — |

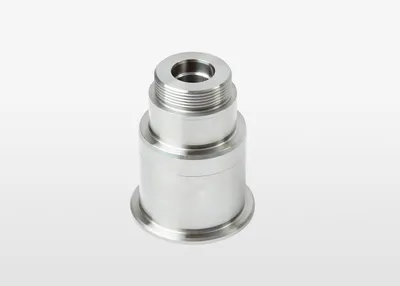

| 3HAC037193-001 | Shaft | 0.864 kg kg | 0.864 kg kg | Shaft | 60 mm mm |
| 3HAC037192-003 | Motor incl. pinion (White RAL 9003) | 23.82 kg kg | 23.82 kg kg | Motor incl. pinion (White RAL 9003) | 180 mm mm |

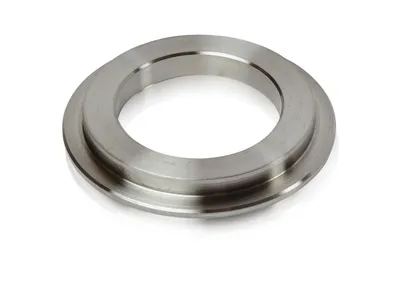

| 3HAC037191-001 | Support ring | 0.4 kg kg | 0.4 kg kg | Support ring | 15 mm mm |

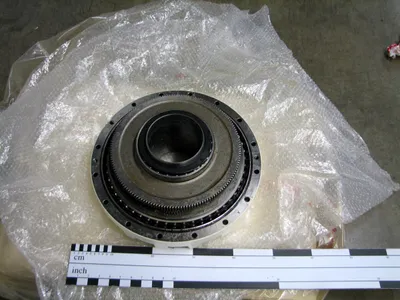

| 3HAC040499-001 | RV 320C - 191,35 | 94 kg kg | 94 kg kg | RV 320C - 191,35 | — |

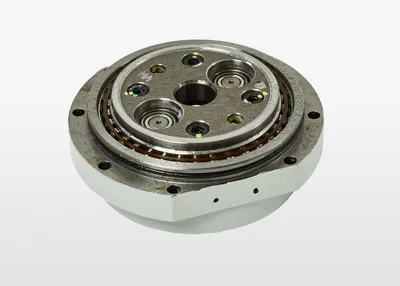

| 3HAC054558-001 | RV 40E-81 (Lightgrey RAL 7035) | 9.02 kg kg | 9.02 kg kg | RV 40E-81 (Lightgrey RAL 7035) | 72 mm mm |
| 3HAC13151-1 | Cable battery/SMB | 0.004 kg kg | 0.004 kg kg | Cable battery/SMB | 40 mm mm |
| 3HAC033082-001 | Fan ax 1/2 cable harness | 0.063 kg kg | 0.063 kg kg | Fan ax 1/2 cable harness | 25 mm mm |
| 3HAC040024-001 | Socket KM 8 | 0 kg kg | 0 kg kg | Socket KM 8 | — |

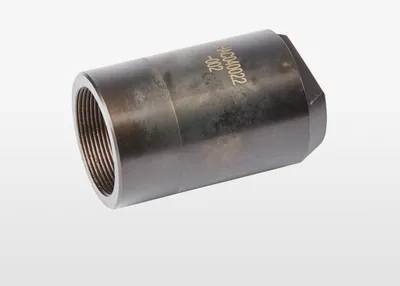

| 3HAC040022-002 | Pressing tool | 0.82 kg kg | 0.82 kg kg | Pressing tool | 50 mm mm |
| 3HAC040021-004 | Pressing tool | 0.54 kg kg | 0.54 kg kg | Pressing tool | 20 mm mm |
| 3HAC037243-003 | Lower rod system (White RAL 9003) | 8.36 kg kg | 8.36 kg kg | Lower rod system (White RAL 9003) | 45 mm mm |
| 3HAB3701-50 | Radial seals w. dust lip w | 0.071 kg kg | 0.071 kg kg | Radial seals w. dust lip w | — |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Selling Unit of Measure | piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Made To Order | No |
| Part Type | New |
| WEEE Category | Product Not in WEEE Scope |
